NSN 4820-01-223-8644 0202308300, 020230830K, 4240
Product Details | CHECK VALVE
4820-01-223-8644 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.
Part Alternates: 0202308300, 020230830K, 4240, 4-240, 5081-2IN BRZ 45DEG, 50812INBRZ45DEG, 54-131F 2IN, 54-131F 2IN BRZ 45DEG, 54131F2IN, 54131F2INBRZ45DEG, 4820-01-223-8644, 01-223-8644, 4820012238644, 012238644
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 08 JAN 1986 | 01-223-8644 | 05487 ( VALVE, CHECK ) |
Drawings & Photos | NSN 4820-01-223-8644
Demand History | NSN 4820-01-223-8644
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4240 | 2020-01-23 | 1 | US |
| 4820-01-223-8644 | 2014-10-303 | 7 | DIBBS |
| 4820-01-223-8644 | 2014-10-294 | 1 | DIBBS |
Cross Reference | NSN 4820-01-223-8644
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0202308300 | 09032 | TATE ANDALE, INC. |
| 4-240 | 08768 | TATE ENGINEERING SYSTEMS, INC. |
| 5081-2IN BRZ 45DEG | 76364 | MILWAUKEE VALVE COMPANY, INC. DBA HAMMOND |
| 5081-2IN BRZ 45DEG | 91643 | SERVICE BRASS & ALUMINUM FOUNDRY CO. INC. |
| 54-131F 2IN | 08768 | TATE ENGINEERING SYSTEMS, INC. |
| 54-131F 2IN BRZ 45DEG | 09032 | TATE ANDALE, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-223-8644
Related Products | NSN 4820-01-223-8644
Technical Data | NSN 4820-01-223-8644
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 400 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM B-61 ASSN STD SINGLE MATERIAL RESPONSE BODY QQ-N-281 FED SPEC SINGLE MATERIAL RESPONSE STEM |

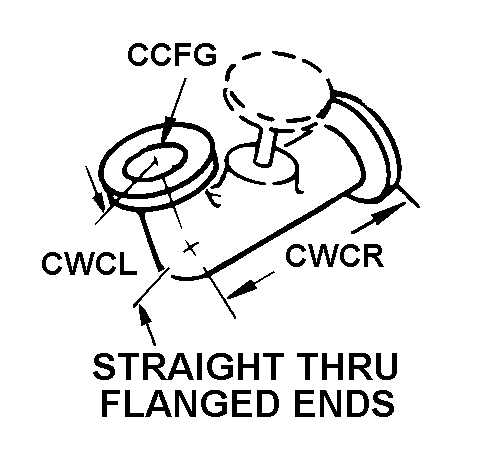

| STYLE DESIGNATOR | E18A STRAIGHT THRU FLANGED ENDS |
| VALVE SIZE | 2.000 INCHES |
| FIRST CONNECTION FACE TO CENTERLINE DISTANCE | 4.875 INCHES |
| SECOND CONNECTION FACE TO CENTERLINE DISTANCE | 10.375 INCHES |
| FLOW CONTROL DEVICE | DISK |
| MEDIA FOR WHICH DESIGNED | WASTE PRODUCT SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | FLANGE ALL ENDS |
| FLANGE SHAPE | ROUND ALL ENDS |
| NOMINAL OUTSIDE DIAMETER | 6.000 INCHES ALL ENDS |
| NOMINAL THICKNESS | 0.812 INCHES ALL ENDS |
| FLANGE FACE DESIGN | PLAIN ALL ENDS |
| MOUNTING POSITION | HORIZONTAL |
| DISK LOADING METHOD | WEIGHT |
| FURNISHED ITEMS AND QUANTITY | 1 HANDWHEEL |
| SPECIAL FEATURES | CONTROL 45 DEG TO FLOW LINE |
Restrictions/Controls & Freight Information | NSN 4820-01-223-8644
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | NICKEL OR NICKEL COPPER |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-223-8644
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
