NSN 4820-01-227-1022 DPB-20-F152/SP-8449E, DPB20F152SP8449E, 01-227-1022
Product Details | BALL VALVE
4820-01-227-1022 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: DPB-20-F152/SP-8449E, DPB20F152SP8449E, 4820-01-227-1022, 01-227-1022, 4820012271022, 012271022
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 28 FEB 1986 | 01-227-1022 | 20962 ( VALVE, BALL ) |
Drawings & Photos | NSN 4820-01-227-1022
Demand History | NSN 4820-01-227-1022
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| DPB-20-F152/SP-8449E | 2019-12-336 | 1 | DIBBS |
| 4820-01-227-1022 | 2014-05-131 | 1 | DIBBS |
| 4820-01-227-1022 | 2013-08-227 | 1 | DIBBS |
Cross Reference | NSN 4820-01-227-1022
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DPB-20-F152/SP-8449E | 92021 | PBM, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-227-1022
Technical Data | NSN 4820-01-227-1022
| Characteristic | Specifications |
|---|---|
| VALVE OPERATION METHOD | MANUAL |
| MATERIAL | STEEL COMP 316 STEM |

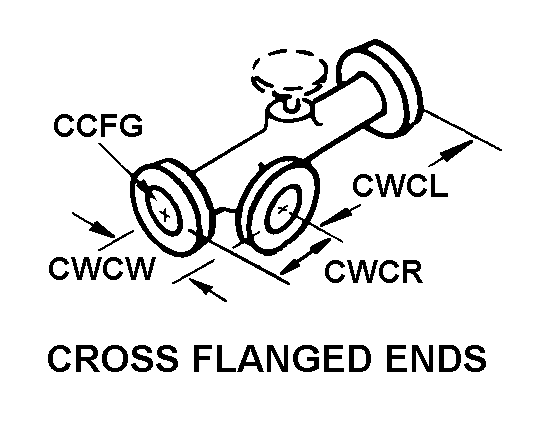

| STYLE DESIGNATOR | A23A CROSS FLANGED ENDS |
| MAXIMUM OPERATING PRESSURE | 400.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| MATERIAL | COPPER ALLOY BODY |
| CONNECTION TYPE | FLANGE ALL ENDS |
| VALVE SIZE | 4.000 INCHES |
| MAXIMUM OPERATING TEMP | 450.0 DEG FAHRENHEIT SINGLE RESPONSE |
| MATERIAL | COPPER ALLOY FLOW CONTROL DEVICE |
Restrictions/Controls & Freight Information | NSN 4820-01-227-1022
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-227-1022
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
