NSN 4820-01-230-3527 MPB19F152, MP-B-19-F15-2, MPB-19-F152/P0C1
Product Details | BALL VALVE
4820-01-230-3527 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: MPB19F152, MP-B-19-F15-2, MPB-19-F152/P0C1, MPB19F152P0C1, MPB-39-F152/P0C1, MPB39F152P0C1, MPBK1LA10, MPB-K1L-A10 , 1MPB-19-F152/P0C1, 1MPB19F152P0C1, 3 IN-MP-B-19-F15-2, 3INMPB19F152, 4820-01-230-3527, 01-230-3527, 4820012303527, 012303527
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 12 APR 1986 | 01-230-3527 | 20962 ( VALVE, BALL ) |
Drawings & Photos | NSN 4820-01-230-3527
Demand History | NSN 4820-01-230-3527
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-230-3527 | 2018-11-322 | 2 | DIBBS |
| 4820-01-230-3527 | 2013-02-35 | 4 | DIBBS |
| 4820-01-230-3527 | 2010-05-134 | 1 | DIBBS |
| 4820-01-230-3527 | 2009-03-77 | 2 | DIBBS |
| 4820-01-230-3527 | 2008-12-340 | 2 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-230-3527
Technical Data | NSN 4820-01-230-3527
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE AND GLASS FIBER SEAT |
| RAISED FACE NOMINAL HEIGHT | 0.062 INCHES ALL ENDS |
| MAXIMUM OPERATING PRESSURE | 300.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| BOLT HOLE NOMINAL DIAMETER | 0.625 INCHES ALL ENDS |
| VALVE OPERATION METHOD | MANUAL |
| MATERIAL | STEEL COMP 316 STEM |
| NOMINAL WIDTH | 7.500 INCHES ALL ENDS |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS 2ND RESPONSE |
| RAISED FACE NOMINAL DIAMETER | 5.000 INCHES ALL ENDS |
| MATERIAL | COPPER ALLOY 836 BODY |
| BOLT HOLE QUANTITY | 4 ALL ENDS |
| MEDIA FOR WHICH DESIGNED | STEAM 1ST RESPONSE |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG WIDTH | 4.938 INCHES ALL ENDS |
| THIRD CONNECTION FACE TO CENTERLINE DISTANCE | 7.375 INCHES |
| CONNECTION TYPE | FLANGE ALL ENDS |
| FLANGE FACE DESIGN | RAISED STRAIGHT ALL ENDS |
| NOMINAL THICKNESS | 0.625 INCHES ALL ENDS |
| NOMINAL LENGTH | 7.500 INCHES ALL ENDS |
| MATERIAL | COPPER ALLOY 836 FLOW CONTROL DEVICE |
| FIRST CONNECTION FACE TO CENTERLINE DISTANCE | 7.375 INCHES |
| FOURTH CONNECTION FACE TO CENTERLINE DISTANCE | 7.375 INCHES |
| MAXIMUM OPERATING TEMP | 450.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CENTER TO CENTER NOMINAL DISTANCE BETWEEN BOLT HOLES ALONG LENGTH | 4.938 INCHES ALL ENDS |

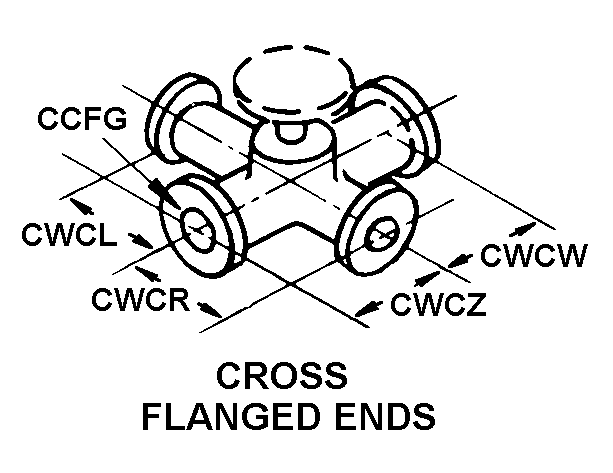

| STYLE DESIGNATOR | A3A CROSS FLANGED ENDS |
| SECOND CONNECTION FACE TO CENTERLINE DISTANCE | 7.375 INCHES |
| MATERIAL | PLASTIC POLYTETRAFLUOROETHYLENE AND GLASS FIBER PACKING |
| VALVE SIZE | 3.000 INCHES |
| FLANGE SHAPE | RECTANGULAR WITH HOLES ALL ENDS |
Restrictions/Controls & Freight Information | NSN 4820-01-230-3527
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-230-3527
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
