Product Details | EXPANSION VALVE
4820-01-242-5345 A self-acting valve specifically designed for use in refrigeration systems for continual control of rate of flow of refrigerant. It may be actuated by a thermostatic element or self-actuated.
Part Alternates: GF-1/2ZP, GF12ZP, 4820-01-242-5345, 01-242-5345, 4820012425345, 012425345
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 12 OCT 1986 | 01-242-5345 | 05493 ( VALVE, EXPANSION ) |
Drawings & Photos | NSN 4820-01-242-5345
Cross Reference | NSN 4820-01-242-5345
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GF-1/2ZP | 78462 | SPORLAN VALVE CO |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4820-01-242-5345
Related Products | NSN 4820-01-242-5345
4820-01-242-5368, 4820-01-242-5393, 4820-01-242-5394, 4820-01-242-5395, 4820-01-242-5452
Technical Data | NSN 4820-01-242-5345
| Characteristic | Specifications |
|---|---|

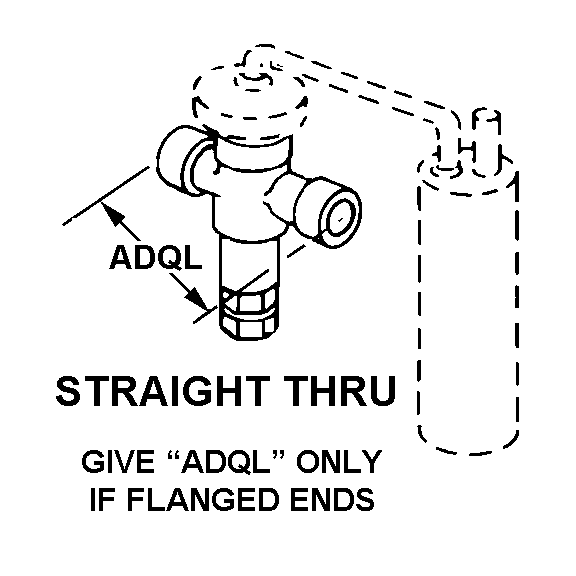

| BODY STYLE | C1 STRAIGHT THRU |
| BODY MATERIAL | BRASS |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| FLOW CONTROL DEVICE MATERIAL | STEEL, CORROSION RESISTING |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL TUBE |

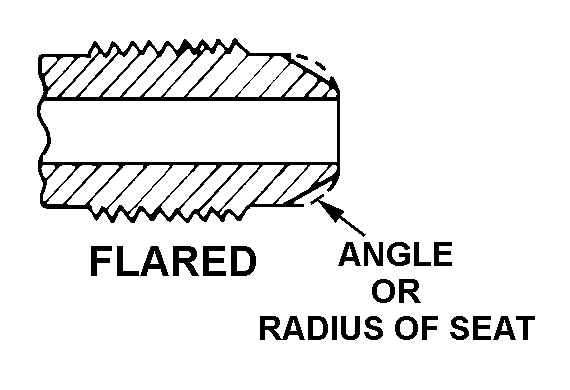

| FIRST END STYLE DESIGNATOR | J3 FLARED |
| FIRST END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES NOMINAL |
| FIRST END THREAD CLASS | 2A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END SEAT ANGLE IN DEG | 37.0 |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | THREADED EXTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | J3 FLARED |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.500 INCHES NOMINAL |
| SECOND END THREAD CLASS | 2A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END SEAT ANGLE IN DEG | 37.0 |
| MEDIA FOR WHICH DESIGNED | REFRIGERANT 500 |
| TEMP RATING | NOT RATED |
| VALVE EXPANSION CONTROL TYPE | THERMOSTATIC |
| VALVE EVAPORATOR TEMP RANGE DESIGNATION | LOW |
| VALVE PRESSURE LIMITING DEVICE | NOT INCLUDED |
| REFRIGERATION CAPACITY IN BTU PER HOUR | NOT RATED |
| BULB MEDIA TYPE | REFRIGERANT 500 |
| BULB LENGTH | 3.500 INCHES NOMINAL |
| BULB DIAMETER | 0.500 INCHES NOMINAL |
| VALVE EQUALIZER LOCATION | EXTERNAL |
| VALVE EQUALIZER CONNECTION TYPE | FLARED TUBE |
| VALVE EQUALIZER CONNECTION DIAMETER | 0.250 INCHES NOMINAL |
