NSN 4820-01-278-2683 SA155501T, SA15550-1T, L34759P02
Product Details | GLOBE VALVE
4820-01-278-2683 A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: SA155501T, SA15550-1T, L34759P02, 4820-01-278-2683, 01-278-2683, 4820012782683, 012782683
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 03 MAY 1988 | 01-278-2683 | 05485 ( VALVE, GLOBE ) |

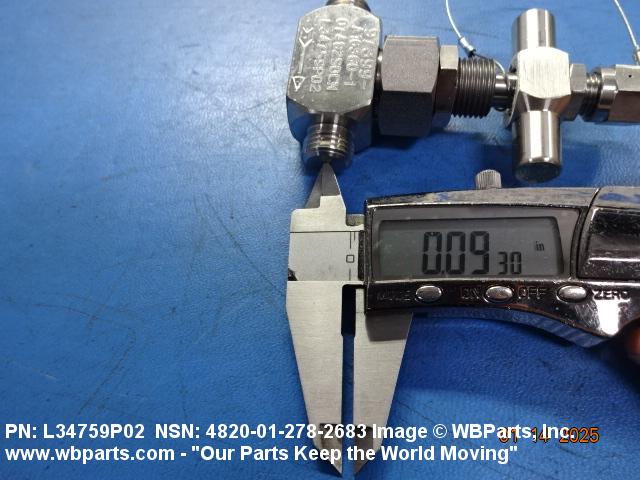

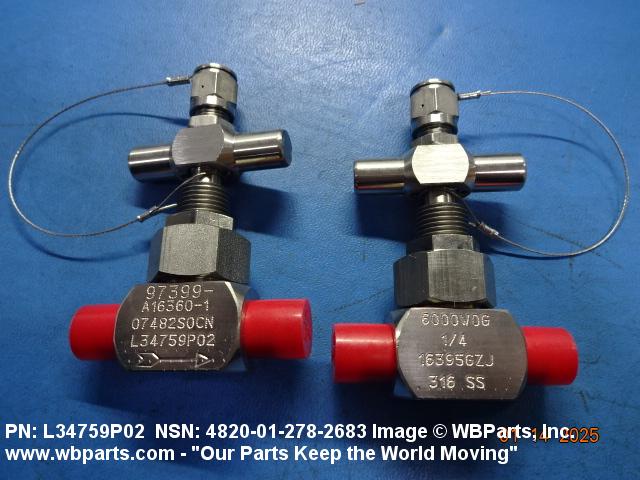

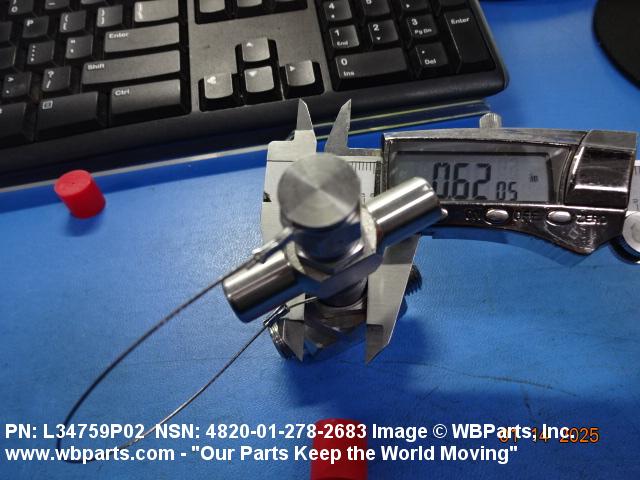

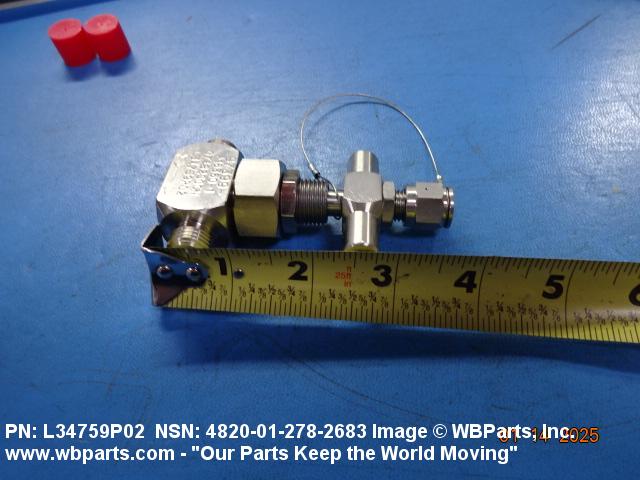

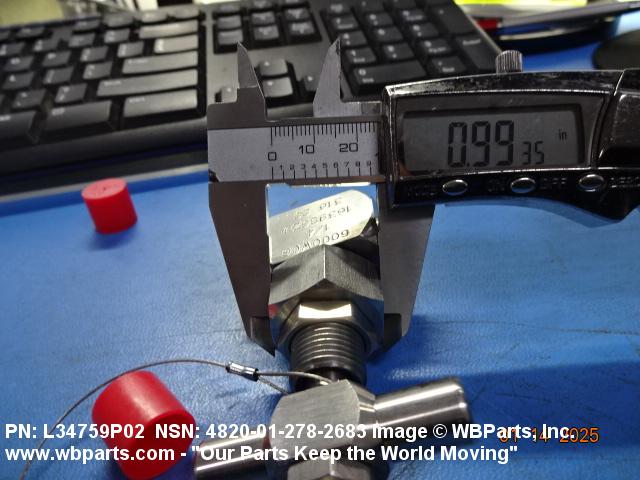

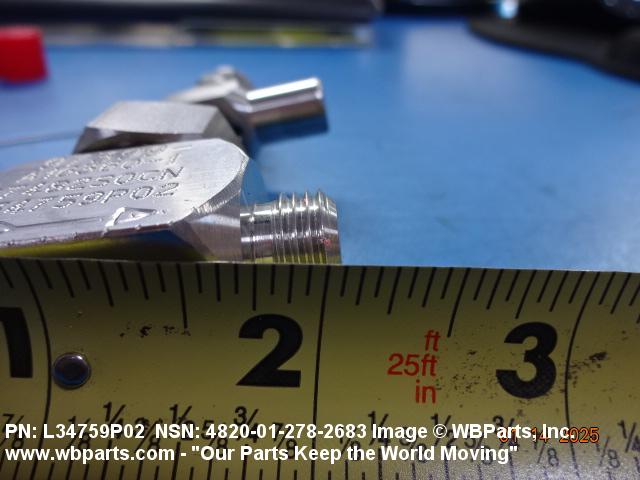

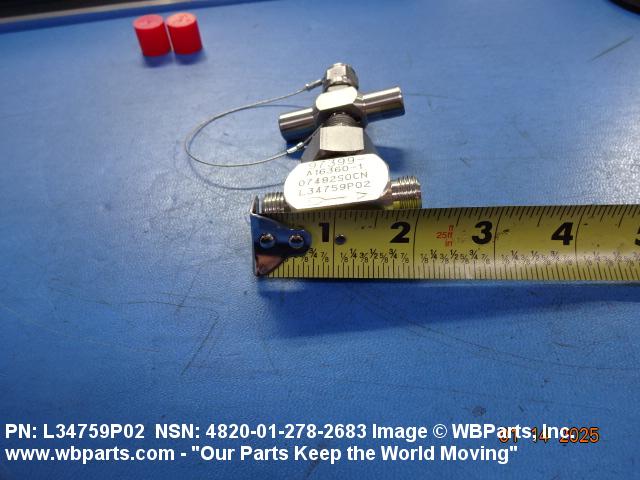

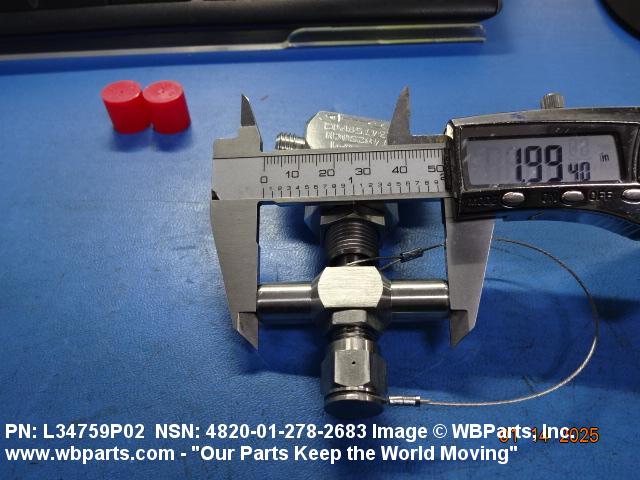

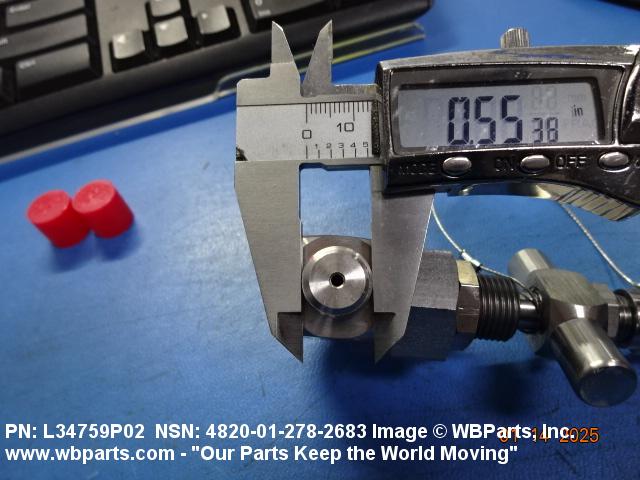

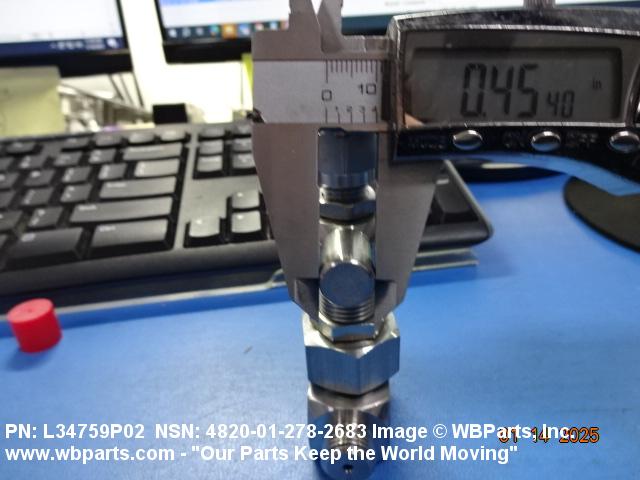

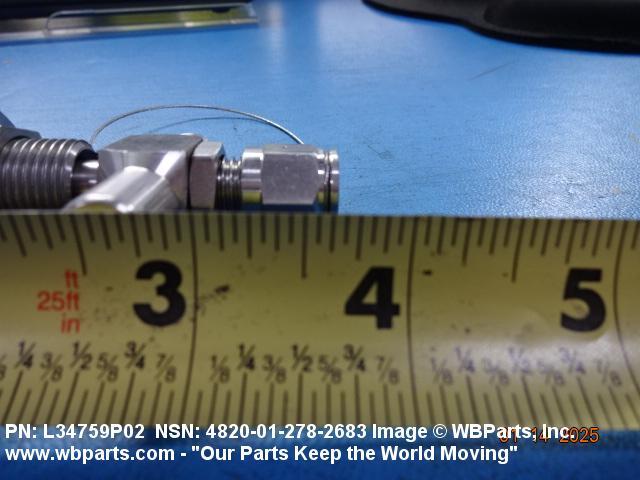

Drawings & Photos | NSN 4820-01-278-2683
Demand History | NSN 4820-01-278-2683
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-278-2683 | 2024-12-365 | 2 | us |
| 4820-01-278-2683 | 2024-01-11 | 51 | US |
| SA15550-1T | 2019-04-108 | 277 | DIBBS |
| SA15550-1T | 2019-01-17 | 54 | DIBBS |
| SA15550-1T | 2017-11-312 | 1 | US |
| 4820-01-278-2683 | 2017-07-198 | 196 | DIBBS |
| 4820-01-278-2683 | 2017-06-180 | 198 | DIBBS |
| 4820-01-278-2683 | 2017-05-141 | 110 | DIBBS |
| 4820-01-278-2683 | 2017-04-93 | 77 | DIBBS |
| 4820-01-278-2683 | 2017-03-82 | 77 | DIBBS |
| 4820-01-278-2683 | 2016-03-66 | 80 | DIBBS |
| 4820-01-278-2683 | 2015-09-273 | 101 | DIBBS |
| 4820-01-278-2683 | 2015-06-175 | 46 | DIBBS |
| 4820-01-278-2683 | 2015-04-104 | 44 | DIBBS |
| 4820-01-278-2683 | 2013-04-98 | 44 | DIBBS |
| 4820-01-278-2683 | 2013-02-36 | 41 | DIBBS |
| 4820-01-278-2683 | 2012-11-334 | 44 | DIBBS |
| 4820-01-278-2683 | 2012-08-241 | 14 | DIBBS |
| 4820-01-278-2683 | 2012-08-233 | 22 | DIBBS |
| 4820-01-278-2683 | 2011-09-255 | 0 | DIBBS |
| 4820-01-278-2683 | 2010-12-361 | 72 | DIBBS |
| 4820-01-278-2683 | 2010-11-305 | 71 | DIBBS |
| 4820-01-278-2683 | 2010-10-298 | 22 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-278-2683
Technical Data | NSN 4820-01-278-2683
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY BODY |
| RENEWABLE SEAT RING TYPE | WELDED |
| BONNET TYPE | INSIDE SCREW |
| BONNET ATTACHMENT METHOD | UNION |
Restrictions/Controls & Freight Information | NSN 4820-01-278-2683
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-278-2683
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
