NSN 4820-01-303-9151 KLN375SS, 01-303-9151, 013039151
Product Details | CALIBRATED FLOW VALVE
4820-01-303-9151 A valve specifically designed to automatically maintain a predetermined discharge flow rate which may be adjustable within a specific range. It is designed to be used with various fluids and may be preset and/or adjustable. It may be in-line or cartridge (manifold) design. Excludes VALVE, REGULATING, FEED WATER; VALVE, REGULATING, FLUID PRESSURE; VALVE, REGULATING, FUEL OIL; VALVE, REGULATING, OIL PRESSURE, AUTOMATIC PILOT; VAVLE, REGULATING, TEMPERATURE; VALVE, ANGLE; and VALVE, GLOBE.
Part Alternates: KLN375SS, 4820-01-303-9151, 01-303-9151, 4820013039151, 013039151
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 07 JUL 1989 | 01-303-9151 | 33212 ( VALVE, CALIBRATED FLOW ) |

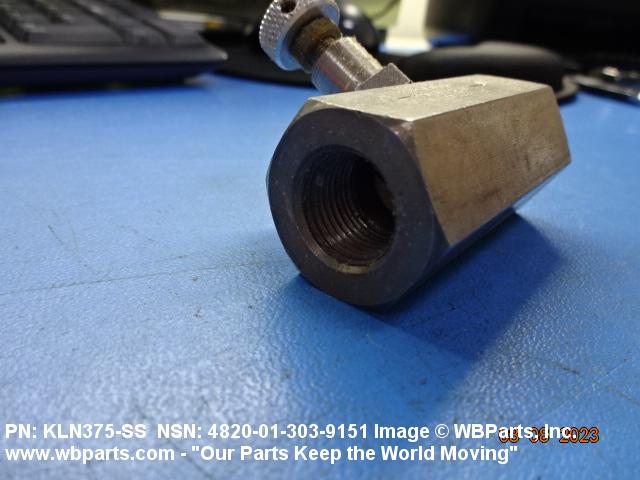

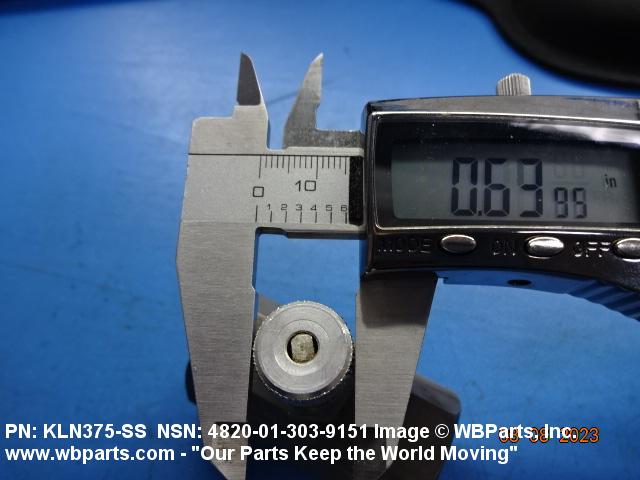

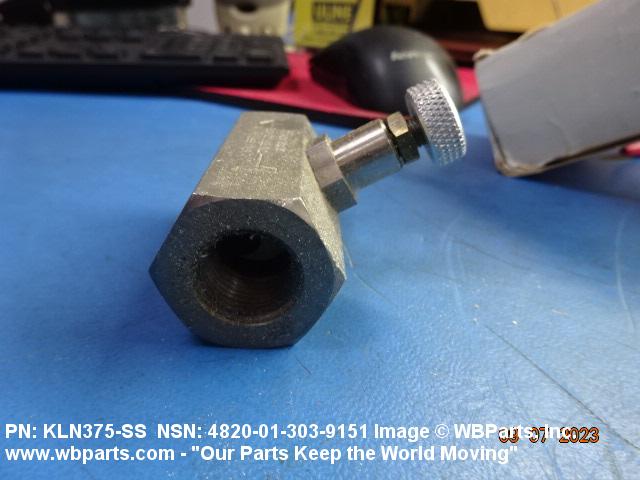

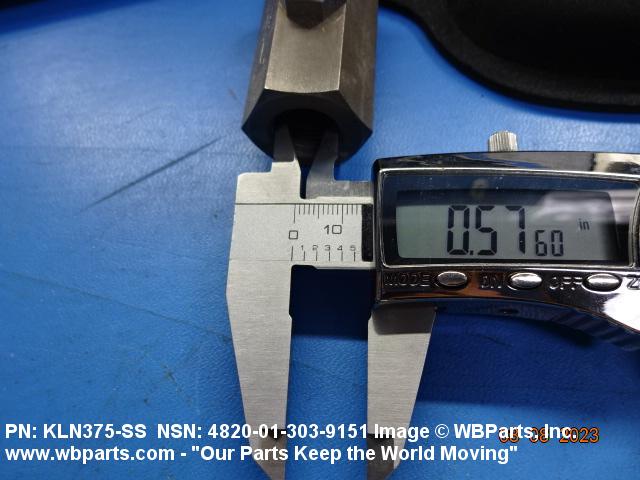

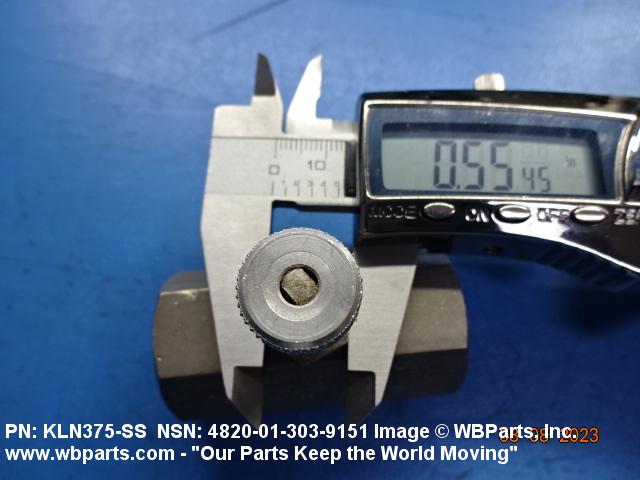

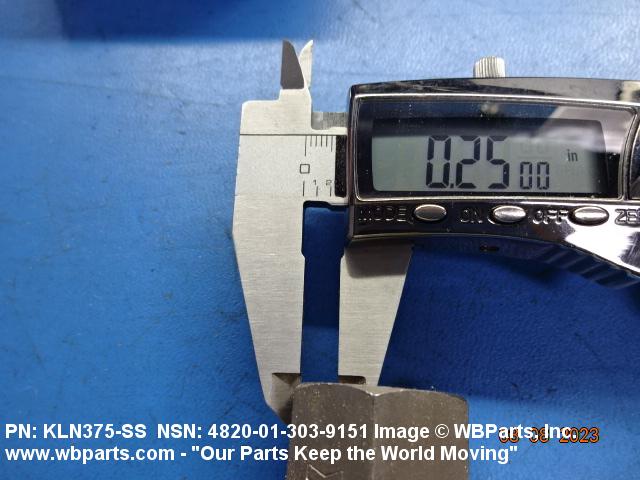

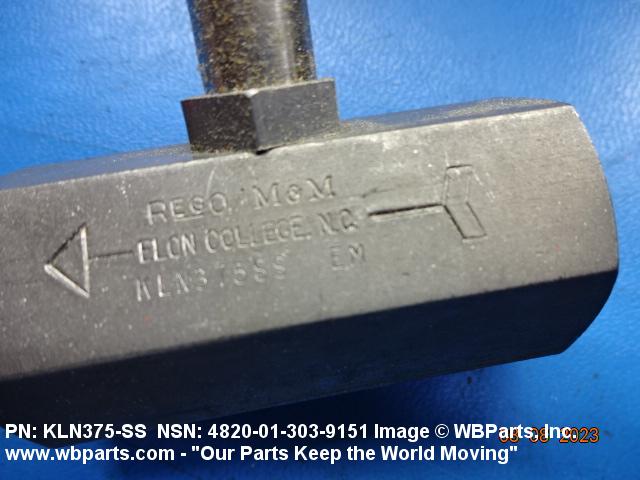

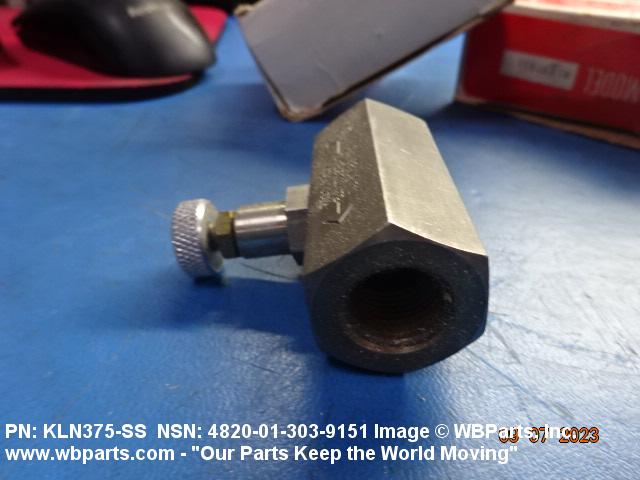

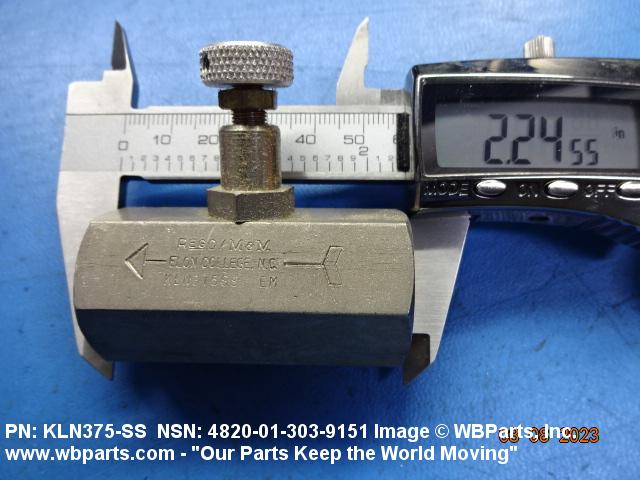

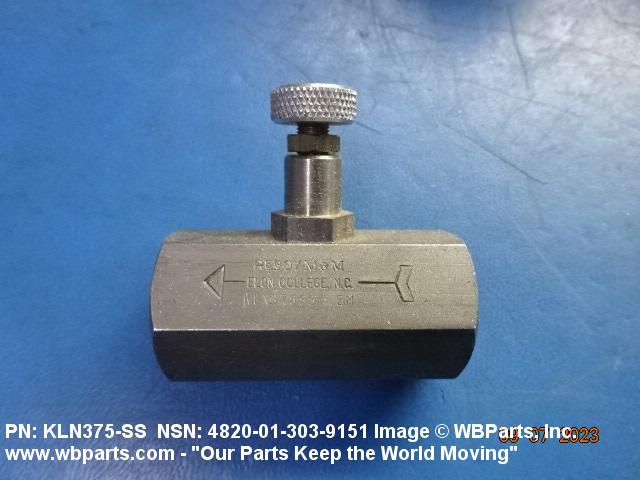

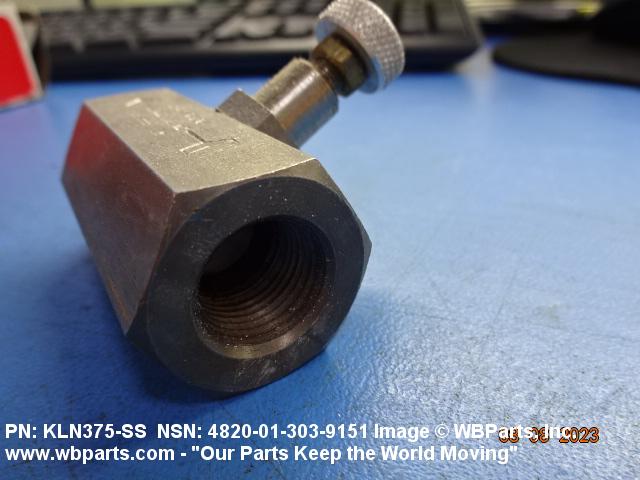

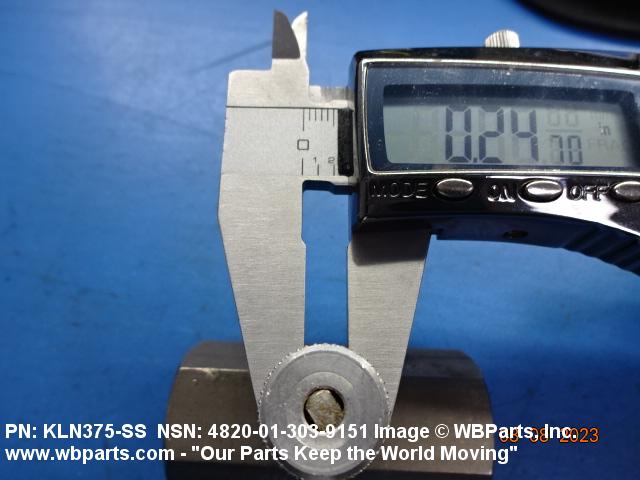

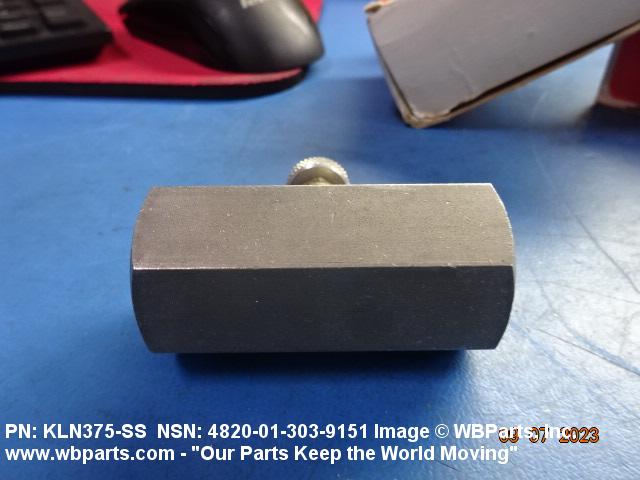

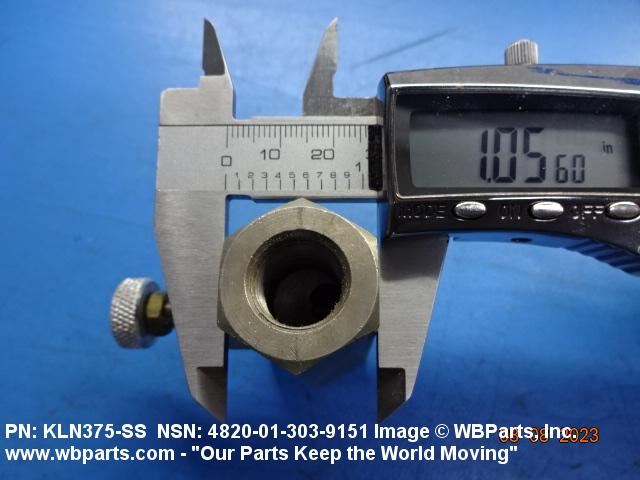

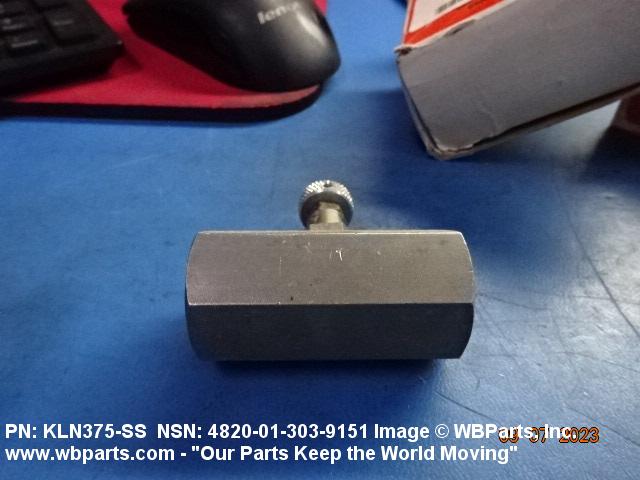

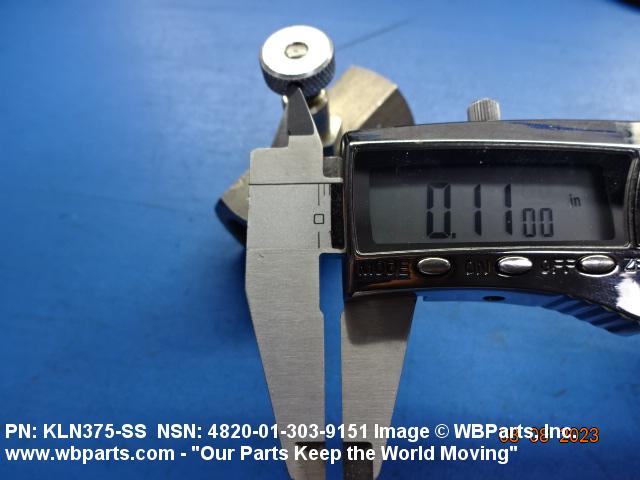

Drawings & Photos | NSN 4820-01-303-9151
Demand History | NSN 4820-01-303-9151
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| KLN375SS | 2023-08-215 | 2 | United States |
| 4820-01-303-9151 | 2020-05-147 | 1 | US |
Cross Reference | NSN 4820-01-303-9151
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| KLN375SS | 24207 | M AND M FLOW PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-303-9151
Technical Data | NSN 4820-01-303-9151
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | STEEL, CORROSION RESISTING |
| STEM MATERIAL | STEEL, CORROSION RESISTING |
| PACKING MATERIAL | RUBBER, BUNA-N AND PLASTIC, TETRAFLUOROETHYLENE |
| FLOW CONTROL DEVICE | STEM AND INTEGRAL DISK |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL BOSS |
| FIRST END STYLE DESIGNATOR | B11 PLAIN |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 3/8-40 NPT |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | AIR AND HYDRAULIC FLUID, MIL-H-5606 AND HYDRAULIC FLUID, PETROLEUM BASE AND HYDRAULIC FLUID, PHOSPHATE-ESTER BASE AND HYDRAULIC FLUID, SILICATE-ESTER BASE |
| REGULATION TYPE | MANUAL SINGLE STAGE |
| MANUAL CONTROL METHOD | KNOB |
| FURNISHED ITEMS | NUT |
| SPECIAL FEATURES | STAINLESS STEEL IS NO. 303; STEM TAPER 8 DEGREE; KNOB,ALUMINUM; LOCK NUT,BRASS |
Restrictions/Controls & Freight Information | NSN 4820-01-303-9151
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
