NSN 4820-01-373-3073 4MV4LKSS, 4M-V4LK-SS, 5044546
Product Details | GLOBE VALVE
4820-01-373-3073 A valve with one inlet and one outlet connection with outlet flow parallel to inlet flow. The flow is controlled by the action of a stem which lifts the disk perpendicularly off the center axis of its seat. The stem is at a 90 degree (1.5708 radians) angle to axis of flow. Excludes VALVE, STOP-CHECK; COCK, SHUTOFF, SCREW STEM; and VALVE, SOLENOID.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 4MV4LKSS, 4M-V4LK-SS, 5044546, 73396, 4820-01-373-3073, 01-373-3073, 4820013733073, 013733073
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 APR 1993 | 01-373-3073 | 05485 ( VALVE, GLOBE ) |

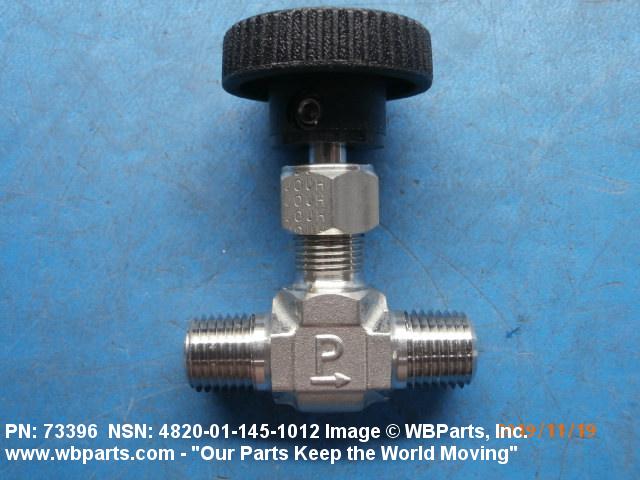

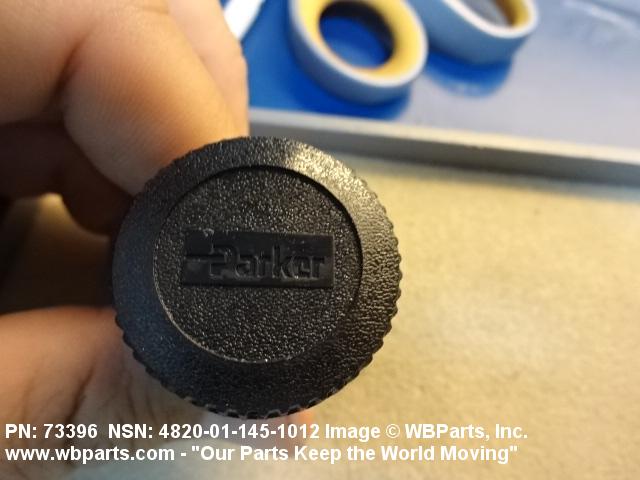

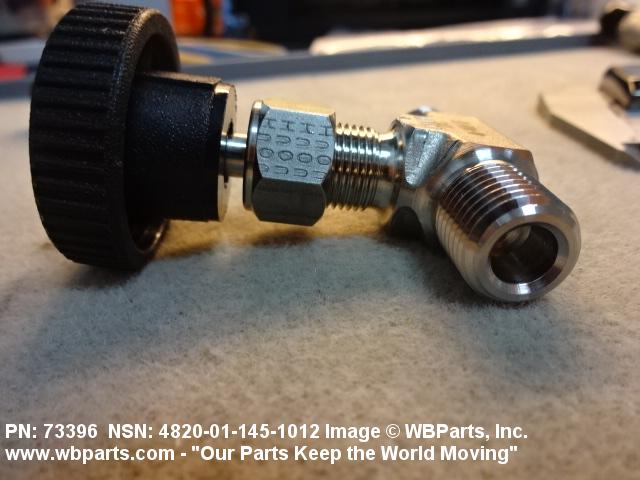

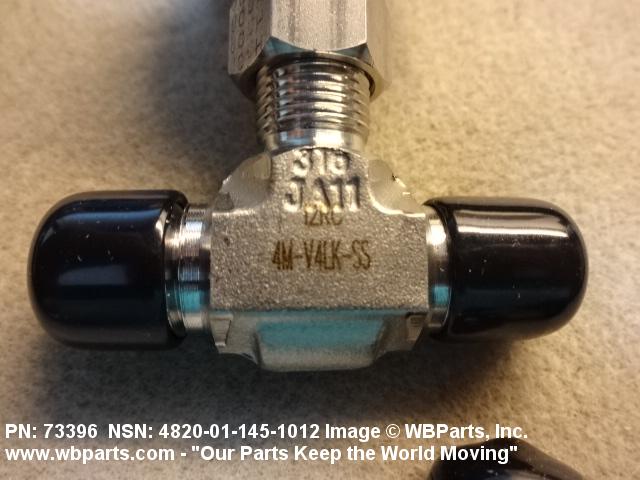

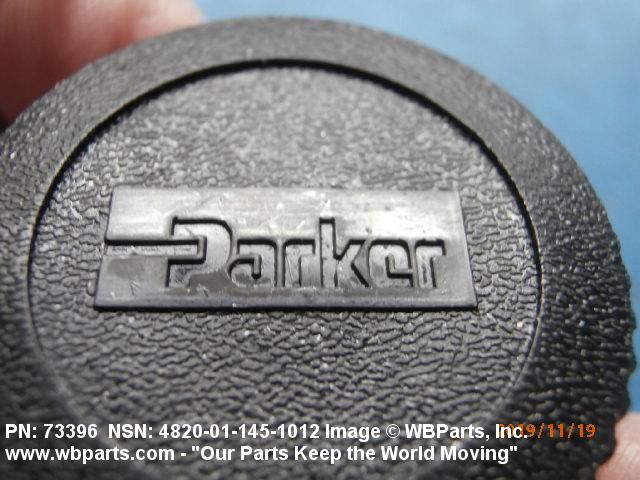

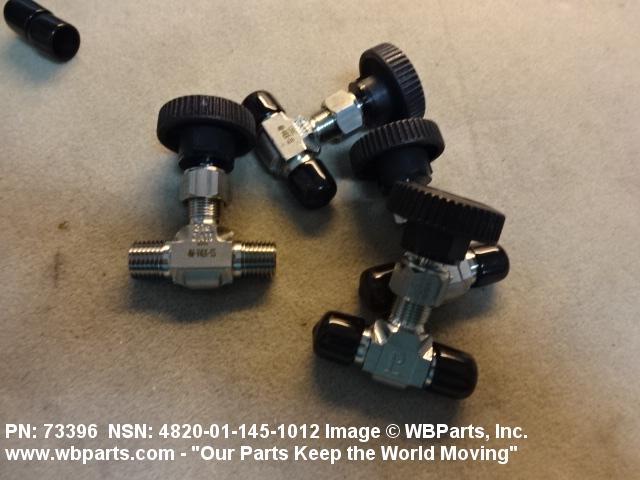

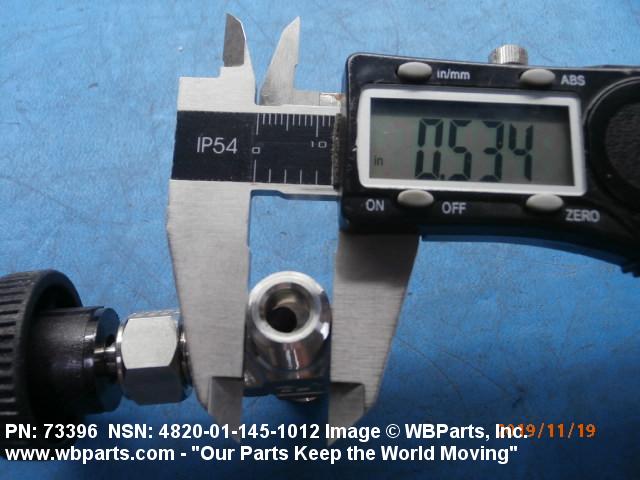

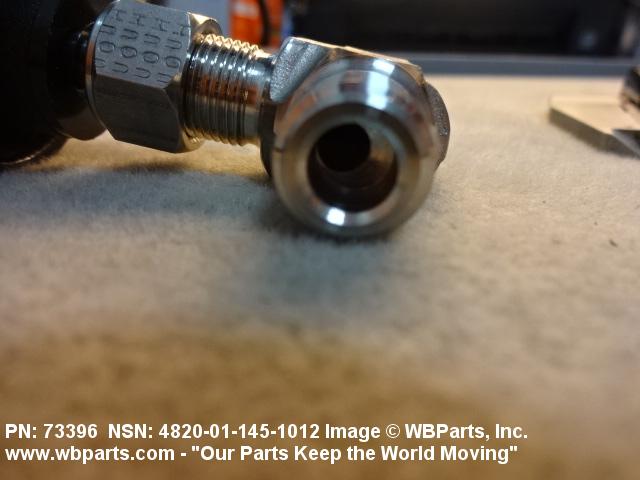

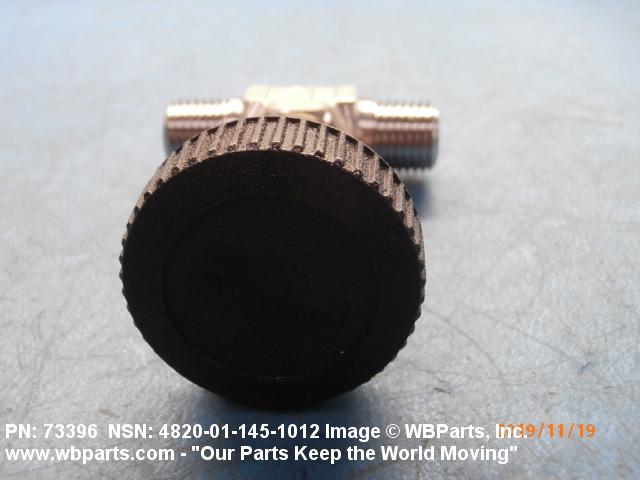

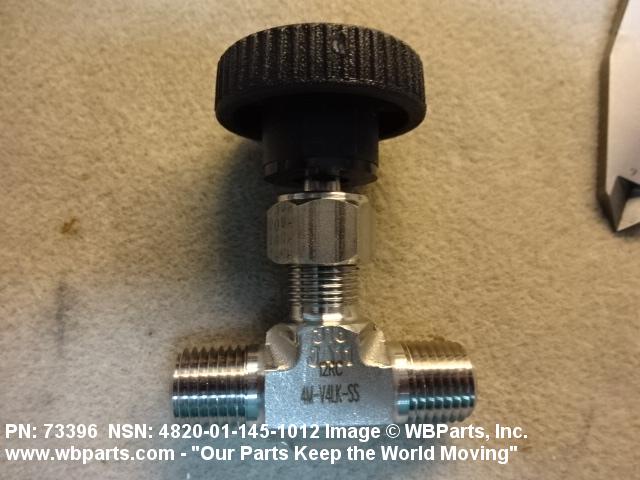

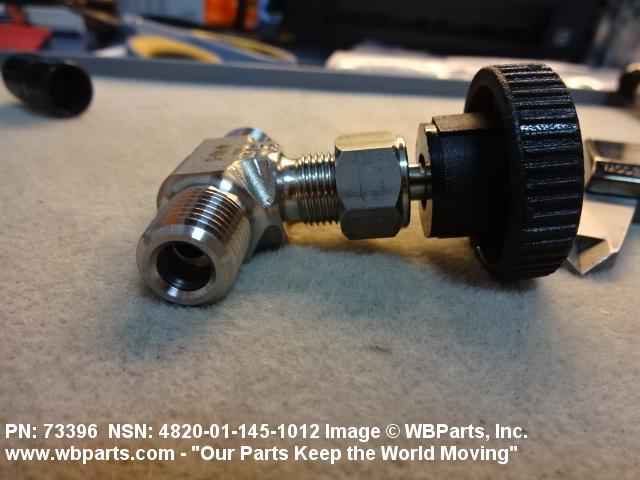

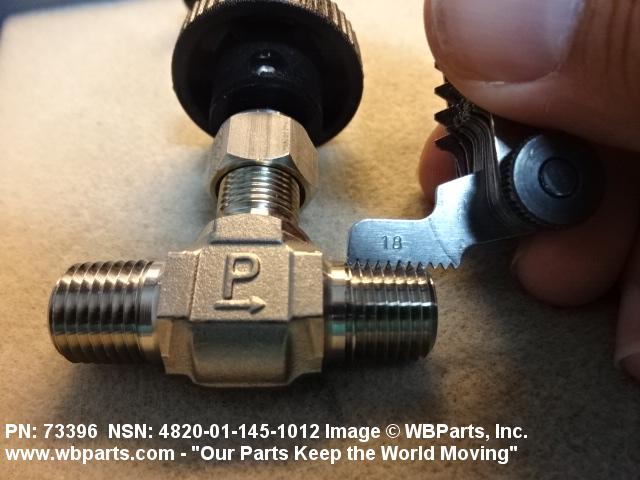

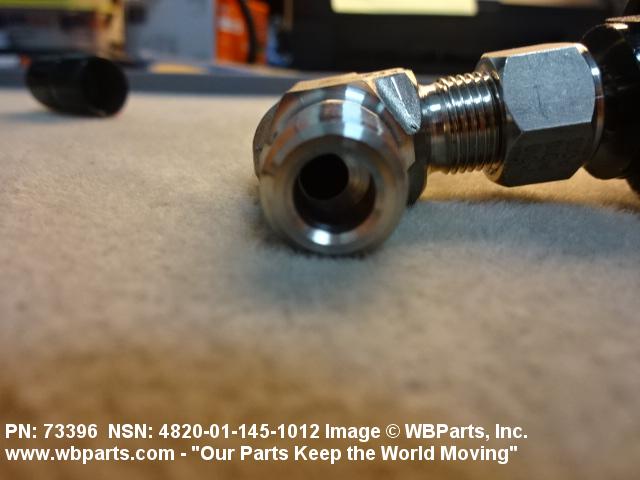

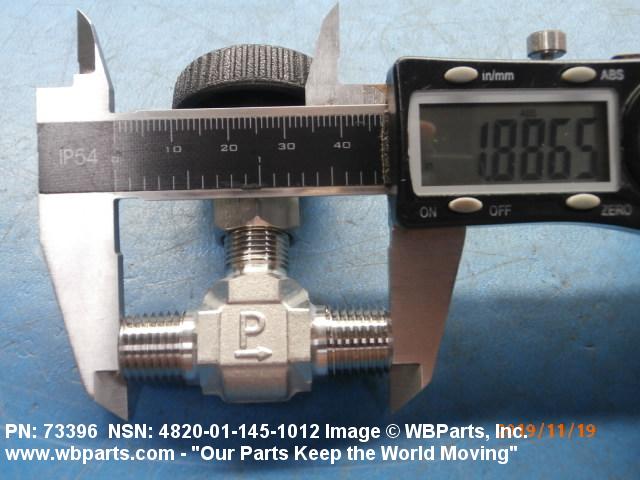

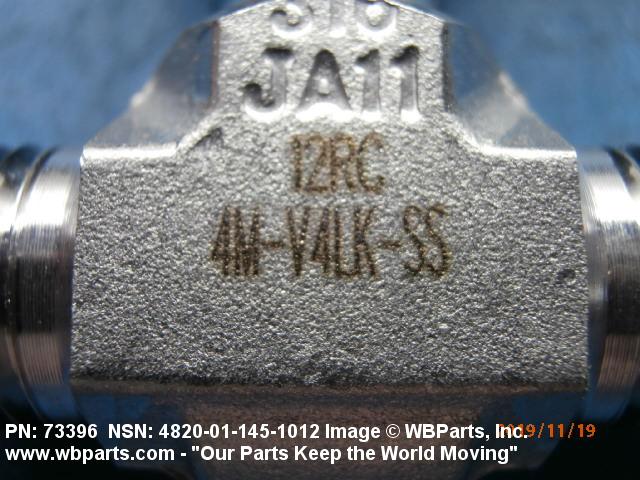

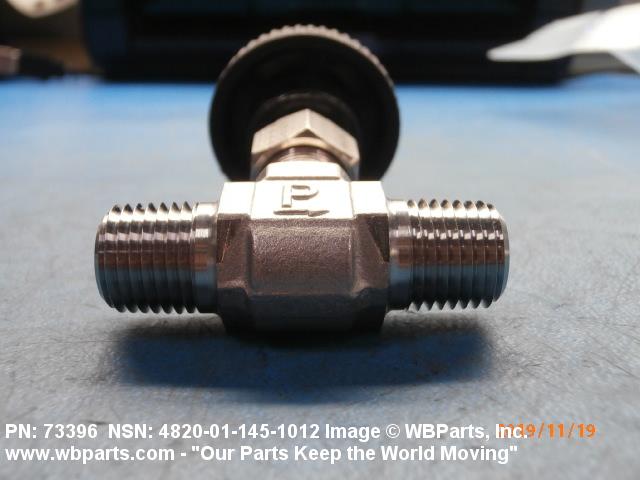

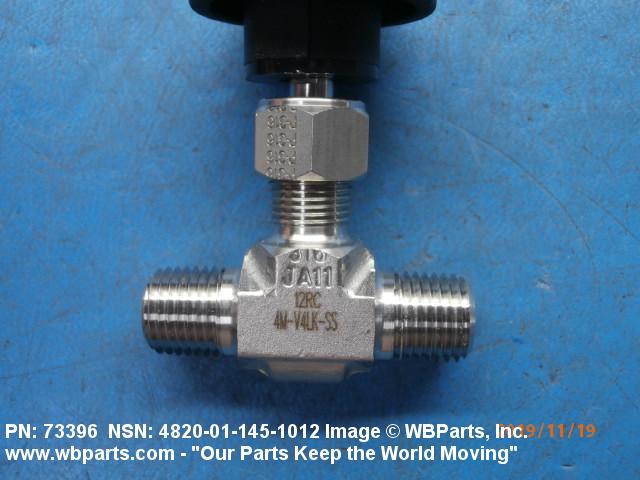

Drawings & Photos | NSN 4820-01-373-3073
Demand History | NSN 4820-01-373-3073
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4M-V4LK-SS | 2024-03-67 | 12 | DIBBS |
| 73396 | 2024-03-67 | 12 | DIBBS |
| 4M-V4LK-SS | 2023-06-152 | 10 | DIBBS |
| 73396 | 2023-06-152 | 10 | DIBBS |
| 4820-01-373-3073 | 2015-10-281 | 42 | DIBBS |
| 4820-01-373-3073 | 2015-03-71 | 19 | DIBBS |
| 4820-01-373-3073 | 2014-01-13 | 1 | DIBBS |
| 4820-01-373-3073 | 2013-12-363 | 1 | DIBBS |
| 4820-01-373-3073 | 2013-12-345 | 23 | DIBBS |
| 4820-01-373-3073 | 2012-10-278 | 23 | DIBBS |
| 4820-01-373-3073 | 2012-01-06 | 27 | DIBBS |
| 4820-01-373-3073 | 2011-06-154 | 4 | DIBBS |
| 4820-01-373-3073 | 2011-04-100 | 7 | DIBBS |
| 4820-01-373-3073 | 2011-02-34 | 7 | DIBBS |
| 4820-01-373-3073 | 2010-12-359 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-373-3073
Related Products | NSN 4820-01-373-3073
Technical Data | NSN 4820-01-373-3073
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 BODY STEEL COMP 316 FLOW CONTROL DEVICE PLASTIC POLYCHLOROTRIFLUOROETHYLENE SEAT STEEL COMP 316 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTMA182 ASSN STD SINGLE MATERIAL RESPONSE BODY ASTMA182 ASSN STD SINGLE MATERIAL RESPONSE FLOW CONTROL DEVICE ASTMA182 ASSN STD SINGLE MATERIAL RESPONSE SEAT ASTMA182 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | PASSIVATE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE |
| STYLE DESIGNATOR | A1 STRAIGHT THRU |
| FLOW CONTROL DEVICE | NEEDLE |
| MAXIMUM OPERATING PRESSURE | 5000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 350.0 DEG FAHRENHEIT SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED EXTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | G9 PLAIN ALL ENDS |
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.250 INCHES ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| BONNET TYPE | OUTSIDE SCREW-YOKE |
| BONNET ATTACHMENT METHOD | BOLTED |
| FURNISHED ITEMS AND QUANTITY | 1 HANDLE |
| III END ITEM IDENTIFICATION | 5865-01-338-0526 |
Restrictions/Controls & Freight Information | NSN 4820-01-373-3073
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-373-3073
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
