NSN 4820-01-406-8401 AM150FD3IN, AM150FD-3IN, 01-406-8401
Product Details | BALL VALVE
4820-01-406-8401 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: AM150FD3IN, AM150FD-3IN, 4820-01-406-8401, 01-406-8401, 4820014068401, 014068401
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 13 JAN 1995 | 01-406-8401 | 20962 ( VALVE, BALL ) |
Drawings & Photos | NSN 4820-01-406-8401
Demand History | NSN 4820-01-406-8401
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-406-8401 | 2013-02-37 | 1 | US |
Cross Reference | NSN 4820-01-406-8401
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AM150FD-3IN | 53154 | PORTLAND VALVE LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-406-8401
Technical Data | NSN 4820-01-406-8401
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |

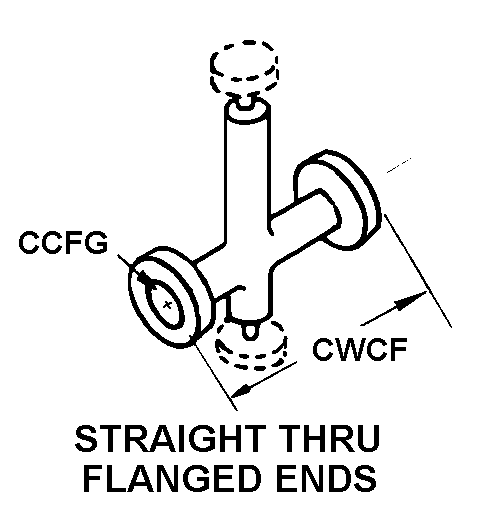

| STYLE DESIGNATOR | A44A STRAIGHT THRU FLANGED ENDS |
| VALVE SIZE | 3.000 INCHES |
| POWER DRIVE OPERATING PRESSURE | 150.0 POUNDS PER SQUARE INCH NOMINAL |
| MANUFACTURERS CODE | 53154 |
| DESIGN CONTROL REFERENCE | AM150FD-3IN |
Restrictions/Controls & Freight Information | NSN 4820-01-406-8401
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-406-8401
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 7H | Depot level reparable shipboard and base equipment, assemblies, components and repair parts related to Naval Sea Systems Command equipment Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | M1 | MSC unique components |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | H | Depot Level Reparable |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
