NSN 4820-01-420-8952 30006P, 3000-6-P, 01-420-8952
Product Details | NEEDLE VALVE STEM
4820-01-420-8952 A metallic, needle shaped item having a one-piece stem threaded for securing to, or positioning into, a mating part. The point may be of various angles or shapes, such as conical or tapered, to correspond with the mating seat. The item is designed for the fine control flow or restriction of liquids or gases in a given system. It may be provided with a knurled head for rotation by thumbs and fingers, or be driven with either a wrench, handle, or inserted driver. Excludes VALVE, FUEL-AIR MIXTURE CONTROL, AUTOMATIC.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 30006P, 3000-6-P, 4820-01-420-8952, 01-420-8952, 4820014208952, 014208952
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 27 OCT 1995 | 01-420-8952 | 28686 ( STEM, NEEDLE VALVE ) |
Drawings & Photos | NSN 4820-01-420-8952
Cross Reference | NSN 4820-01-420-8952
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3000-6-P | 98678 | GENERANT CO INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-420-8952
Technical Data | NSN 4820-01-420-8952
| Characteristic | Specifications |
|---|---|
| VALVE SIZE FOR WHICH DESIGNED | 0.187 INCHES |
| LARGEST OUTSIDE DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 1.625 INCHES NOMINAL |

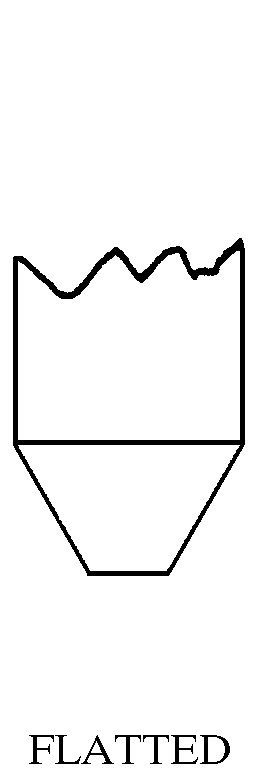

| DISK STYLE | 2 FLATTED |
| SPECIAL FEATURES | OPEN, CLOSE 2 WAY VALVE; PRESURE TO 200 PSI; CONNECTION POINT 1 FEMALE 1 MALE; STANDARD BRASS WITH STAINLESS STEEL STEM |
| III END ITEM IDENTIFICATION | CONTROL CONSOLE; P/N MS496-06782 ONBOARD WMEC 210A FT COAST GUARD VESSELS |
| MANUFACTURERS CODE | 98678 |
| DESIGN CONTROL REFERENCE | 3000-6-P |
Restrictions/Controls & Freight Information | NSN 4820-01-420-8952
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4820-01-420-8952
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZNC | Commanding Officer USCG Surface Force Logistics Center Code 028, Mil Stop 25 2401 Hawkins Point Road Baltimore, MD 21226-5000 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
