NSN 4820-01-463-4517 06R118AASB, 06R18AASB, 01-463-4517
Product Details | SYSTEM PRESSURE REGULATING VALVE
4820-01-463-4517 A value designed to automatically maintain within close limits a predetermined pressure within a closed system regardless of the higher fluctuating or constant inlet pressure. The excess pressure is by-passed to the accumulator or reservoir in lieu of passing through the entire system. It is designed primarily for use in refrigeration and air conditioning systems. Excludes VALVE, REGULATING, FLUID PRESSURE and VALVE, CALIBRATED FLOW.
Part Alternates: 06R118AASB, 06R18AASB, 4820-01-463-4517, 01-463-4517, 4820014634517, 014634517
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 23 MAR 1999 | 01-463-4517 | 35896 ( VALVE, REGULATING, SYSTEM PRESSURE ) |
Drawings & Photos | NSN 4820-01-463-4517
Cross Reference | NSN 4820-01-463-4517
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-463-4517
Technical Data | NSN 4820-01-463-4517
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ZINC |
| FLOW CONTROL DEVICE | DIAPHRAGM |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED INTERNAL PIPE |

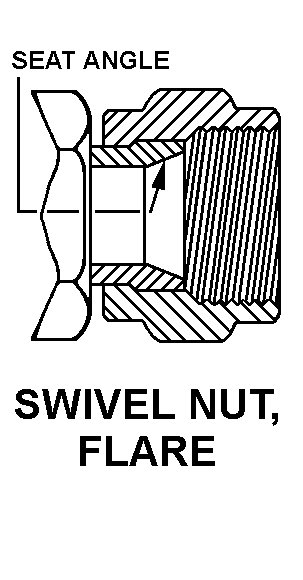

| FIRST END STYLE DESIGNATOR | B3 SWIVEL NUT, FLARE |
| FIRST END THREAD SIZE AND SERIES/TYPE DESIGNATOR | 1.750-12 STUB ACME |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| BODY STYLE | A1 STRAIGHT THRU |
| MEDIA FOR WHICH DESIGNED | AIR |
| REGULATION TYPE | MANUAL SINGLE STAGE |
| VALVE LOADING METHOD | SPRING |
| MAXIMUM INLET PRESSURE RATING | 250.0 POUNDS PER SQUARE INCH |
| OUTLET PRESSURE ACCURACY RATING | 60.000 POUNDS PER SQUARE INCH |
| FILTER | NOT INCLUDED |
| SPECIAL FEATURES | NHA MISC PARTS LIST |
Restrictions/Controls & Freight Information | NSN 4820-01-463-4517
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127200 | PRESSURE REDCNG WATER RELIEF VALVE |
| Less than car load rating | ||
| Less than truck load rating | M | 85.0 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-463-4517
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
