Product Details | BALL VALVE
4820-01-469-9732 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 10500, 10500 PC 14, 10500PC14, 105791B, 10579-1B, 10580, 4820-01-469-9732, 01-469-9732, 4820014699732, 014699732
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 02 DEC 1999 | 01-469-9732 | 20962 ( VALVE, BALL ) |
Drawings & Photos | NSN 4820-01-469-9732
Demand History | NSN 4820-01-469-9732
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 10500 PC 14 | 2024-01-08 | 2 | DIBBS |
| 10580 | 2024-01-08 | 2 | DIBBS |
| 10500 PC 14 | 2023-12-19 | 2 | DIBBS |
| 10580 | 2023-12-19 | 2 | DIBBS |
| 10500 PC 14 | 2023-04-11 | 1 | DIBBS |
| 10580 | 2023-04-11 | 1 | DIBBS |
| 10500 PC 14 | 2023-01-25 | 1 | DIBBS |
| 10580 | 2023-01-25 | 1 | DIBBS |
| 10500 PC 14 | 2021-01-05 | 4 | DIBBS |
| 10580 | 2021-01-05 | 4 | DIBBS |
| 10500 PC 14 | 2020-05-11 | 5 | DIBBS |
| 10580 | 2020-05-11 | 5 | DIBBS |
| 10500 PC 14 | 2020-02-20 | 5 | DIBBS |
| 10580 | 2020-02-20 | 5 | DIBBS |
| 4820-01-469-9732 | 2016-02-25 | 6 | DIBBS |
| 4820-01-469-9732 | 2014-02-17 | 4 | DIBBS |
| 4820-01-469-9732 | 2012-08-31 | 3 | DIBBS |
| 4820-01-469-9732 | 2012-03-19 | 2 | DIBBS |
| 4820-01-469-9732 | 2012-02-15 | 2 | DIBBS |
| 4820-01-469-9732 | 2012-01-03 | 1 | DIBBS |
| 4820-01-469-9732 | 2011-09-22 | 2 | DIBBS |
| 4820-01-469-9732 | 2011-06-21 | 2 | DIBBS |
| 4820-01-469-9732 | 2011-05-18 | 2 | DIBBS |
| 4820-01-469-9732 | 2010-12-15 | 2 | DIBBS |
| 4820-01-469-9732 | 2010-10-07 | 2 | DIBBS |
Cross Reference | NSN 4820-01-469-9732
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10500 | 62144 | PARKER-HANNIFIN CORPORATION DBA RACOR DIVISION |
| 10500 PC 14 | 62144 | PARKER-HANNIFIN CORPORATION DBA RACOR DIVISION |
| 10579-1B | 62144 | PARKER-HANNIFIN CORPORATION DBA RACOR DIVISION |
| 10580 | 62144 | PARKER-HANNIFIN CORPORATION DBA RACOR DIVISION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4820-01-469-9732
Related Products | NSN 4820-01-469-9732
4820-01-469-9852, 4820-01-469-9853, 4820-01-469-9872, 4820-01-469-9980, 4820-01-469-9990
Technical Data | NSN 4820-01-469-9732
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316L BODY |

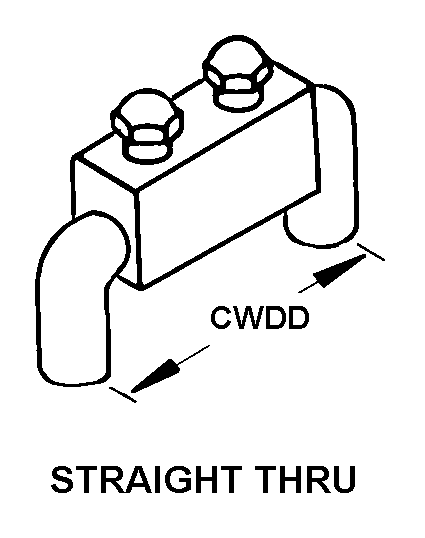

| STYLE DESIGNATOR | A4 STRAIGHT THRU |
| CENTER TO CENTER DISTANCE | 7.880 INCHES |
| VALVE OPERATION METHOD | MANUAL |
| FURNISHED ITEMS AND QUANTITY | 1 HANDLE AND 2 ADAPTER |
| SPECIAL FEATURES | NEXT HIGHER ASSY - REVERSE OSMOSIS/DEMINERALIZER/WATER PURIFICATION UNIT/MODEL 10500 RODM; ALL PIPING & PIPING COMPONENTS PASSIVATED TO QQ-P-36 |
| III SUPPLEMENTARY FEATURES | ALTERED ITEM INCLUDES 1/2" OD BALL VALVE (STRAIGHT THRU); 3/8 MNPTX1/2 OD SW ADAPTERS (2); 1/2" OD .065 WALL TUBING; AND 1/2" OD SW THREADED (UNION) PIECES (2); ADAPTED FOR SPECIAL USE |
| III END ITEM IDENTIFICATION | ARLEIGH BURKE CLASS DDG |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | VALVE, BALL, 2-WAY, 1/2 OD |
Restrictions/Controls & Freight Information | NSN 4820-01-469-9732
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-469-9732
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
