NSN 4820-01-481-6627 3/4 IN 2203-11-HT, 34IN220311HT, 01-481-6627
Product Details | STOP DIAPHRAGM VALVE
4820-01-481-6627 A valve designed specifically so the diaphragm seals the flow stream from the valve operating mechanism. The flow is controlled by the lifting of the diaphragm from or compressing it against an integral seat. For packless diaphragm valves which utilize a diaphragm as packing and a disk to control the flow, see VALVE, Y.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 3/4 IN 2203-11-HT, 34IN220311HT, 4820-01-481-6627, 01-481-6627, 4820014816627, 014816627
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 18 JAN 2001 | 01-481-6627 | 13619 ( VALVE, DIAPHRAGM, STOP ) |
Drawings & Photos | NSN 4820-01-481-6627
Cross Reference | NSN 4820-01-481-6627
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3/4 IN 2203-11-HT | 03ZD5 | ALFA LAVAL SAUNDERS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-481-6627
Technical Data | NSN 4820-01-481-6627
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY |

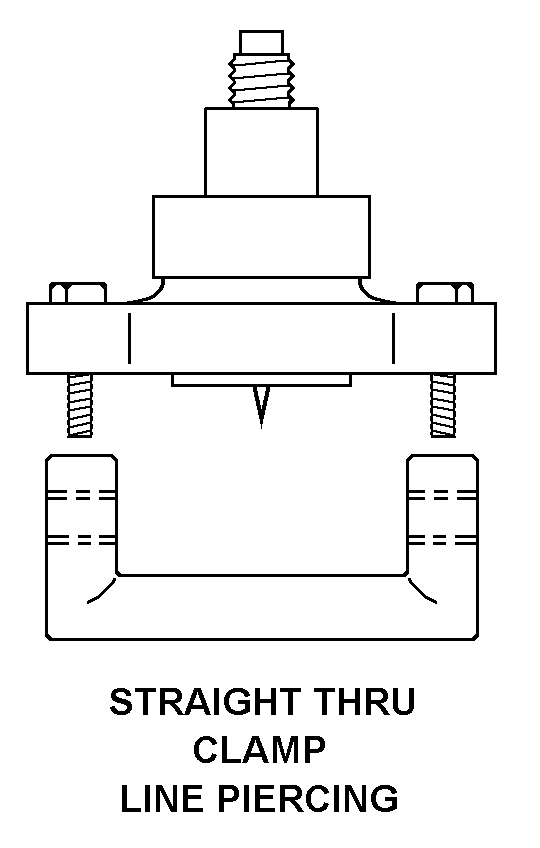

| STYLE DESIGNATOR | E5 STRAIGHT THRU CLAMP LINE PIERCING |
| MEDIA FOR WHICH DESIGNED | WATER-OIL-GAS SINGLE RESPONSE |
| NOMINAL LENGTH | 3.125 INCHES ALL ENDS |
| NOMINAL WIDTH | 3.250 INCHES ALL ENDS |
| SPECIAL FEATURES | DIAPHRAGM MATERIAL NEOPRENE RUBBER; BONNET HAND WHEEL INDICATING; BODY TYPE SCREWED ENDS |
| III END ITEM IDENTIFICATION | OILY WATER SEPARATOR |
Restrictions/Controls & Freight Information | NSN 4820-01-481-6627
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
