NSN 4820-01-499-9862 0466, 1452548, 14525481
Product Details | PNEUMATIC TANK VALVE
4820-01-499-9862 A valve, designed for attachment to pressure tanks and/or mechanical equipment for the purpose of permitting an increase, decrease, and the gaging of pressure (similar to tire valves) within a confining chamber carrying compressed air, gases or oil.
Part Alternates: 0466, 1452548, 14525481, 1452548-1, P466, 4820-01-499-9862, 01-499-9862, 4820014999862, 014999862
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 09 AUG 2002 | 01-499-9862 | 06509 ( VALVE, PNEUMATIC TANK ) |
Drawings & Photos | NSN 4820-01-499-9862
Demand History | NSN 4820-01-499-9862
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| P466 | 2025-07-198 | 4 | DIBBS |
| P466 | 2023-12-362 | 5 | DIBBS |
| P466 | 2022-10-300 | 6 | DIBBS |
| P466 | 2022-05-139 | 5 | DIBBS |
| P466 | 2021-12-339 | 3 | DIBBS |
| P466 | 2020-10-294 | 6 | DIBBS |
| P466 | 2019-12-351 | 6 | DIBBS |
| P466 | 2019-11-325 | 6 | DIBBS |
| 4820-01-499-9862 | 2018-09-264 | 6 | DIBBS |
| 4820-01-499-9862 | 2018-08-242 | 6 | DIBBS |
| 4820-01-499-9862 | 2018-02-43 | 3 | DIBBS |
| 4820-01-499-9862 | 2018-02-32 | 3 | DIBBS |
| 4820-01-499-9862 | 2013-02-32 | 13 | DIBBS |
| 4820-01-499-9862 | 2012-04-103 | 7 | DIBBS |
| 4820-01-499-9862 | 2011-06-165 | 7 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4820-01-499-9862
Related Products | NSN 4820-01-499-9862
Technical Data | NSN 4820-01-499-9862
| Characteristic | Specifications |
|---|---|
| BODY STYLE | D1 STRAIGHT THRU |
| BODY MATERIAL | STEEL |
| OUTSIDE SURFACE TREATMENT | PASSIVATED |
| END CONNECTION QUANTITY | 2 |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL PIPE |
| FIRST END STYLE DESIGNATOR | J6 PLAIN |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SECOND END CONNECTION TYPE | UNTHREADED EXTERNAL TUBE |

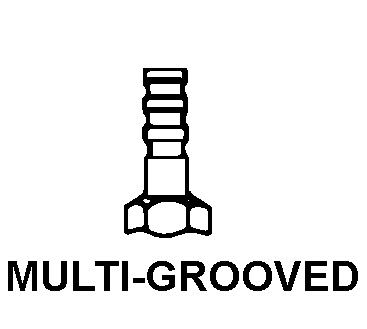

| SECOND END STYLE DESIGNATOR | K9 MULTI-GROOVED |
| SECOND END OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES NOMINAL |
| SECOND END THREAD CLASS | 3A |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END THREAD SERIES DESIGNATOR | UNJF |
| SECOND END NOMINAL THREAD SIZE | 0.437 INCHES |
| TEMP RATING | 74.0 DEG CELSIUS |
| FURNISHED ITEMS | CAP |
| SPECIAL FEATURES | OPERATING PRESSURE FROM 0 TO 200 PSIG |
| III END ITEM IDENTIFICATION | BAND 9/10 TRA - AIRCRAFT, PROWLER EA-6B |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | VALVE,PNEUMATIC TANK |
Restrictions/Controls & Freight Information | NSN 4820-01-499-9862
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-499-9862
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
