NSN 4820-01-522-5146 CASNN07SHH, D60-2-000 ASSY CASNN07SHH, D602000ASSYCASNN07SHH
Product Details | PRESSURE AND TEMPERATURE RELIEF VALVE
4820-01-522-5146 A valve designed to release under excessive pressure and/or excessive temperature by opening at a predetermined pressure and/or temperature. Thermostatically operated valves close when the pressure is relieved or the temperature is reduced. Fusible plug valves require replacement of the plug. See also VALVE, SAFETY RELIEF and VALVE, REGULATING. TEMPERATURE.
Part Alternates: CASNN07SHH, D60-2-000 ASSY CASNN07SHH, D602000ASSYCASNN07SHH, 4820-01-522-5146, 01-522-5146, 4820015225146, 015225146
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 03 AUG 2004 | 01-522-5146 | 16996 ( VALVE, RELIEF, PRESSURE AND TEMPERATURE ) |
Drawings & Photos | NSN 4820-01-522-5146
Demand History | NSN 4820-01-522-5146
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CASNN07SHH | 2022-03-86 | 1 | DIBBS |
| D60-2-000 ASSY CASNN07SHH | 2022-03-86 | 1 | DIBBS |
| 4820-01-522-5146 | 2018-06-172 | 1 | DIBBS |
| 4820-01-522-5146 | 2016-09-266 | 1 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-522-5146
Technical Data | NSN 4820-01-522-5146
| Characteristic | Specifications |
|---|---|

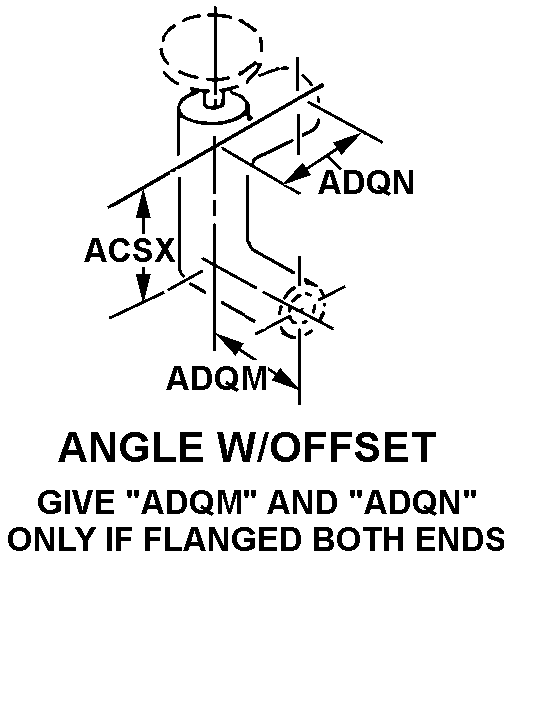

| BODY STYLE | A14 ANGLE W/OFFSET |
| FIRST CONNECTION FACE TO CENTERLINE DISTANCE | 4.750 INCHES NOMINAL |
| SECOND CONNECTION FACE TO CENTERLINE DISTANCE | 4.750 INCHES NOMINAL |
| OFFSET DISTANCE | 4.750 INCHES NOMINAL |
| BODY MATERIAL | STEEL |
| SEAT MATERIAL | STEEL |
| STEM MATERIAL | STEEL |
| END CONNECTION QUANTITY | 2 |
| TEMP RATING | 200.0 DEG FAHRENHEIT |
| SPECIAL FEATURES | 200 PSI AT 400 DEGREES F. ; THIS VALVE IS IN ACCORDANCE WITH MIL-V-24332 GRADE B LIQUID SERVICE OR MIL -V-22549 FOR GAS SERVICE |
| III END ITEM IDENTIFICATION | VALVE |
Restrictions/Controls & Freight Information | NSN 4820-01-522-5146
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-522-5146
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 3B | Navy-owned stocks of field level repairable DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | D | Field Level Reparables |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
