NSN 4820-01-539-6273 1693393, 169339-3, 01-539-6273
Product Details | VALVE DISK
4820-01-539-6273 An item of various shapes (usually circular, conical, cylindrical, or rectangular) used to prevent or regulate the flow of liquids or gases through the valve. May include a retainer, screw, holder, and the like.20616500058Aircraft Hydraulic, Vacuum, and De-icing System Components16600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment29150064Engine Fuel System Components, Aircraft and Missile Prime Movers48100015Valves, Powered48200018Valves, Nonpowered65150057Medical and Surgical Instruments, Equipment, and Supplies
Part Alternates: 1693393, 169339-3, 4820-01-539-6273, 01-539-6273, 4820015396273, 015396273
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 27 APR 2006 | 01-539-6273 | 35224 ( DISK, VALVE ) |
Drawings & Photos | NSN 4820-01-539-6273
Demand History | NSN 4820-01-539-6273
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-539-6273 | 2010-05-138 | 8 | DIBBS |
| 4820-01-539-6273 | 2009-06-152 | 21 | DIBBS |
| 4820-01-539-6273 | 2009-05-128 | 31 | DIBBS |
| 4820-01-539-6273 | 2008-12-358 | 17 | DIBBS |
Cross Reference | NSN 4820-01-539-6273
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 169339-3 | 70210 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-539-6273
Technical Data | NSN 4820-01-539-6273
| Characteristic | Specifications |
|---|---|

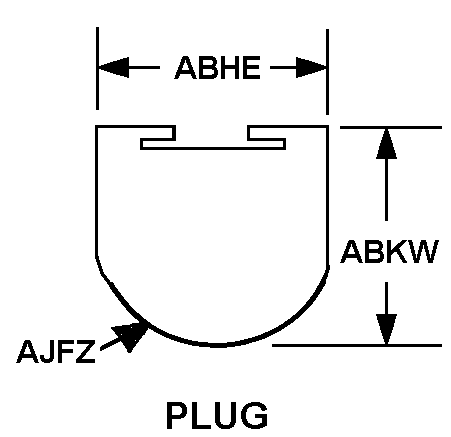

| STYLE DESIGNATOR | 19 PLUG |
| MEDIA FOR WHICH DESIGNED | LIQUID |
| END ITEM IDENTIFICATION | CHECK VALVE PART NUMBER 169332-1-1 |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | FLAPPER ASSEMBLY, BONDED |
Restrictions/Controls & Freight Information | NSN 4820-01-539-6273
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | SX | Oklahoma City Air Logistics Center Tinker AFB, OK 73145-3043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | E | Engineer supplies, other than those listed under code B. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-539-6273
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
