Product Details | BALL VALVE
4820-01-586-2479 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 3/4 6F3600TT, 346F3600TT, 4820-01-586-2479, 01-586-2479, 4820015862479, 015862479
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 21 JUN 2010 | 01-586-2479 | 20962 ( VALVE, BALL ) |

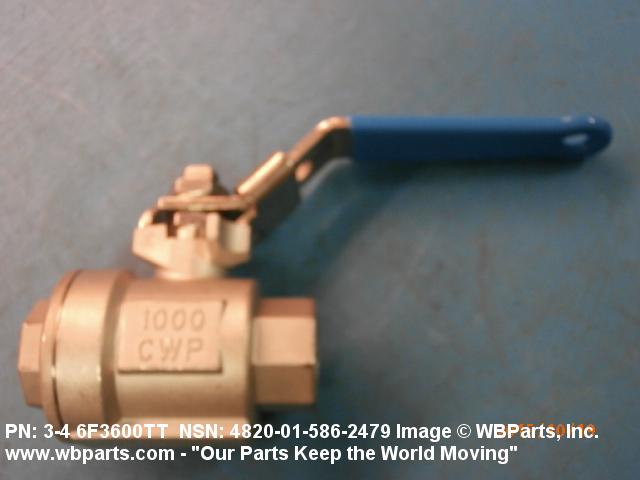

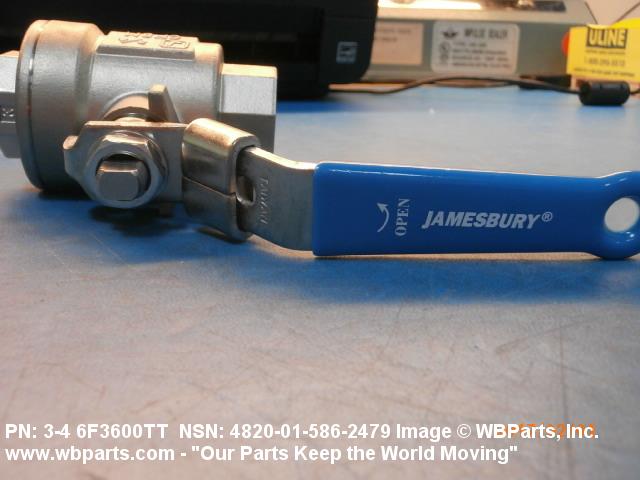

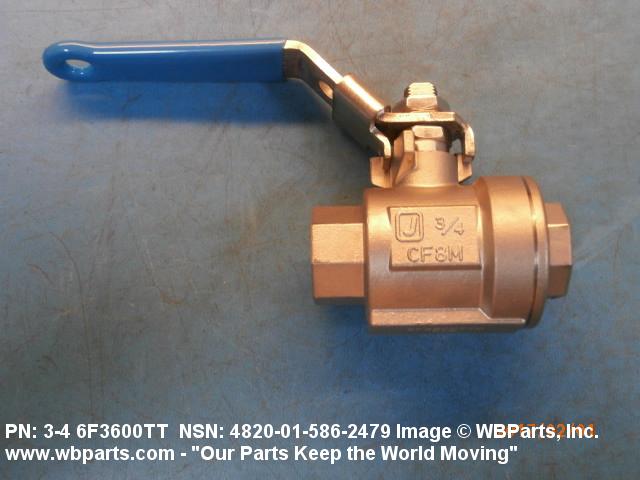

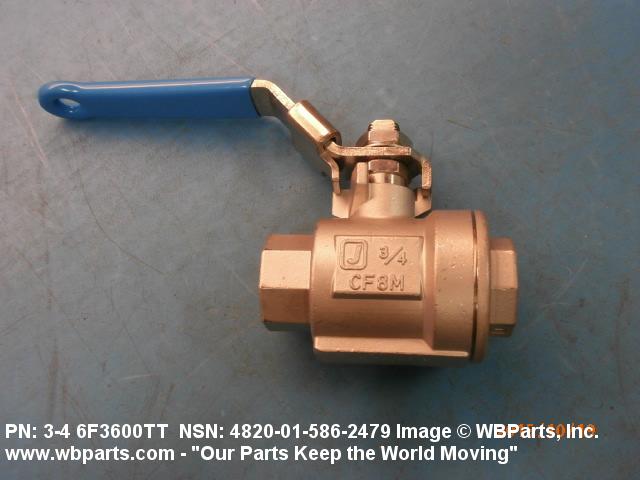

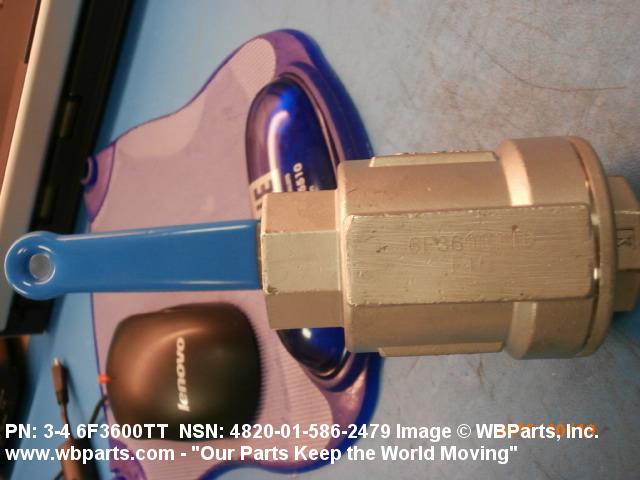

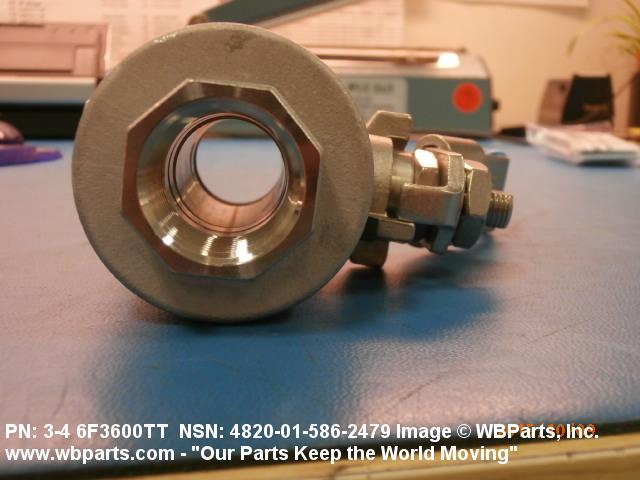

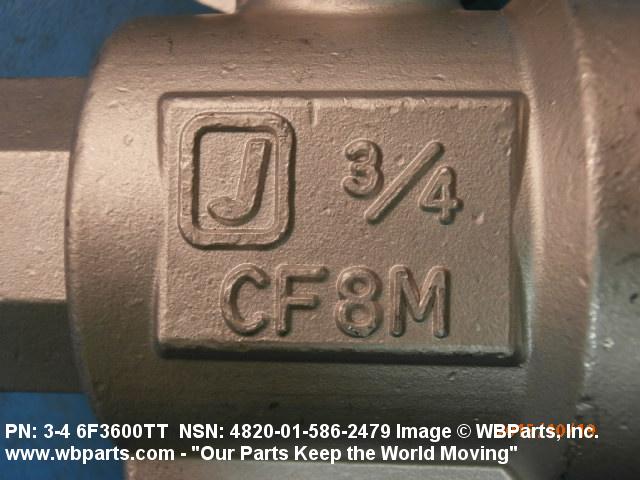

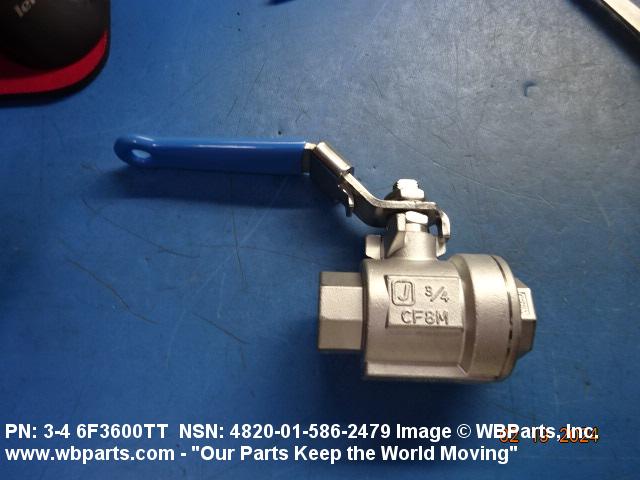

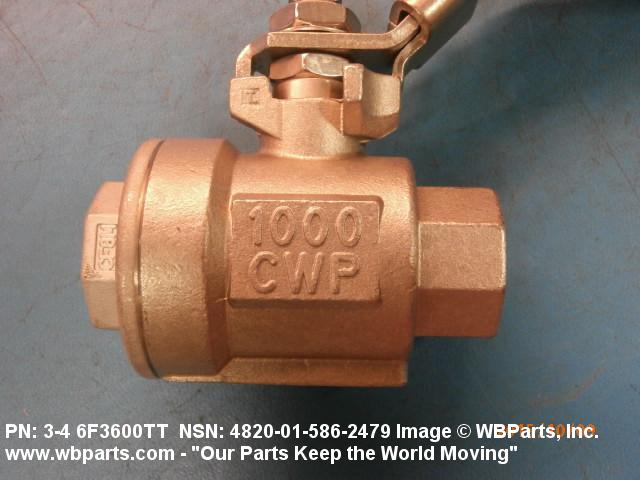

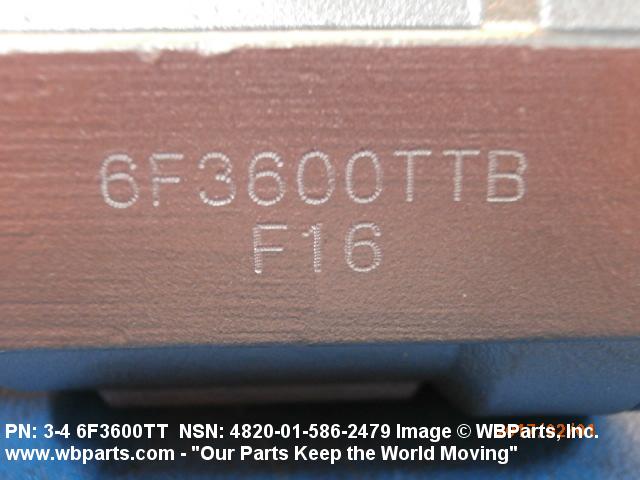

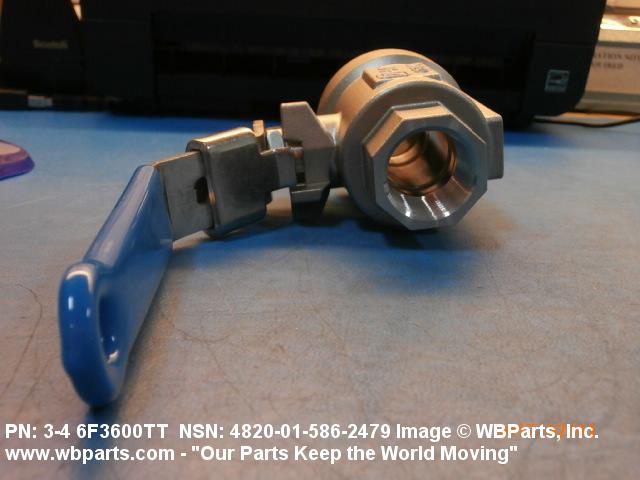

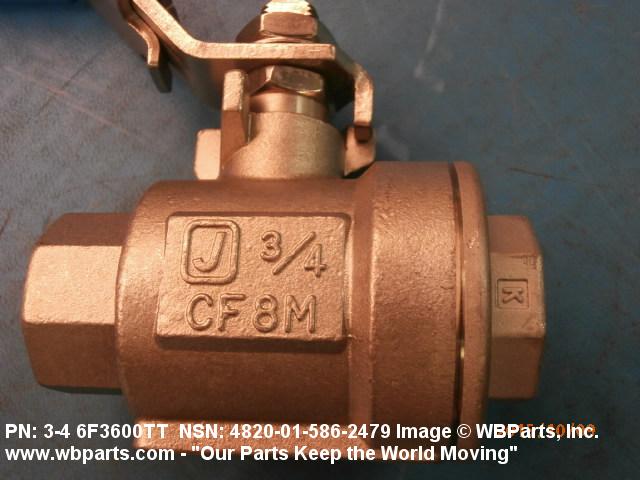

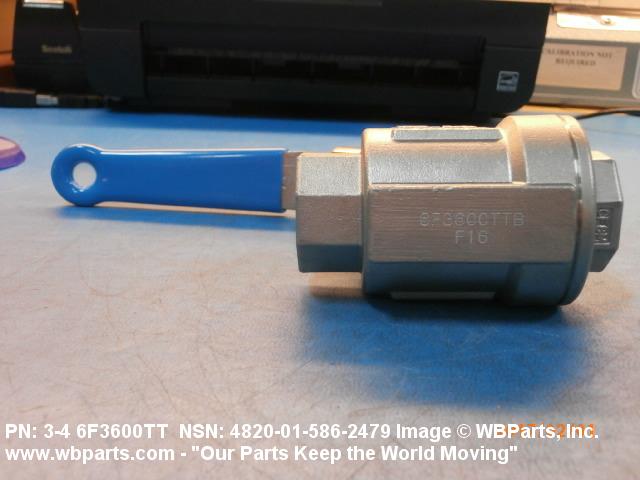

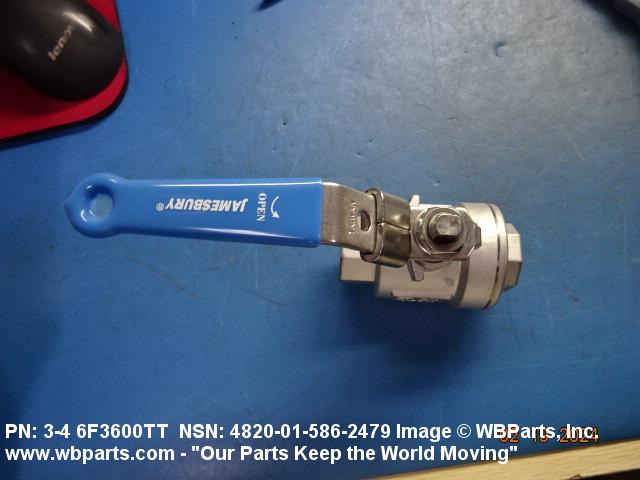

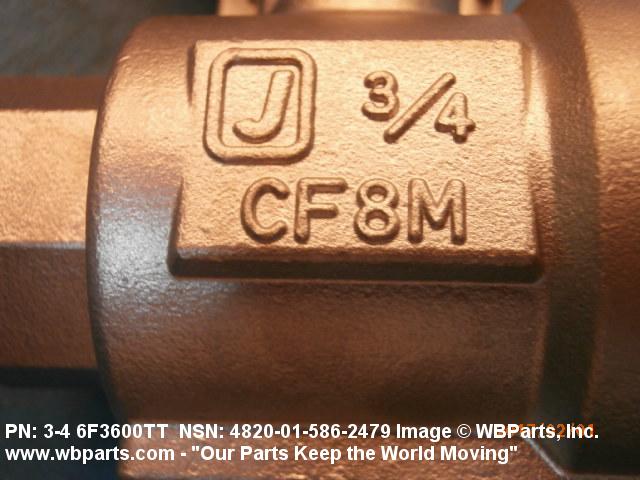

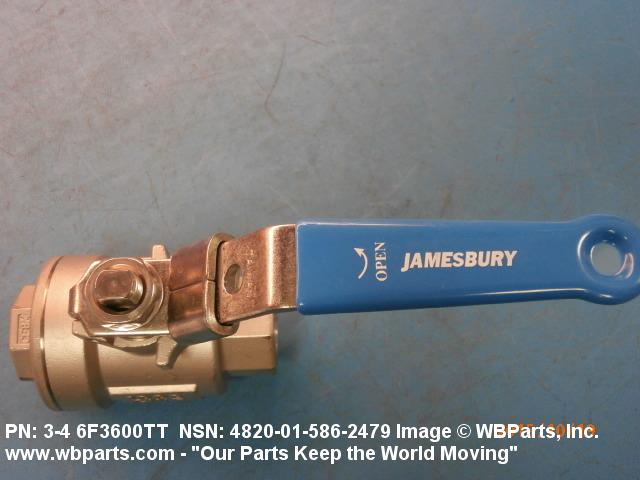

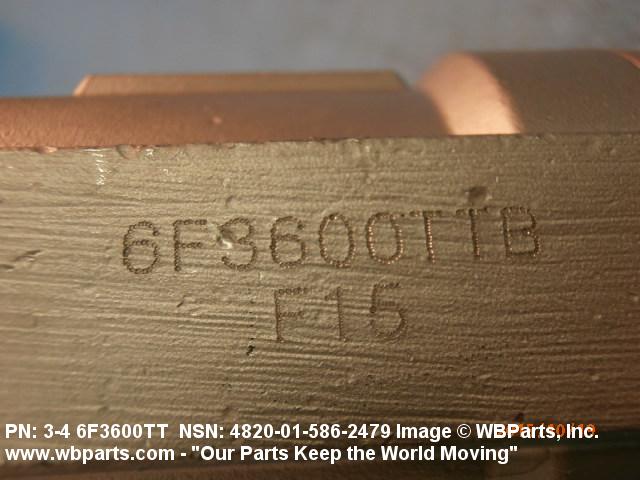

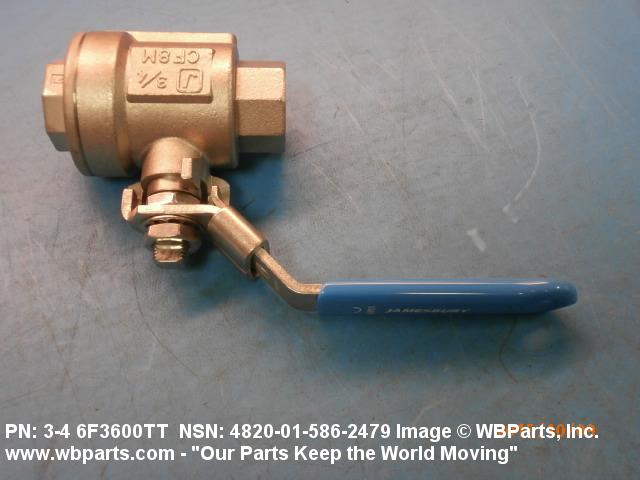

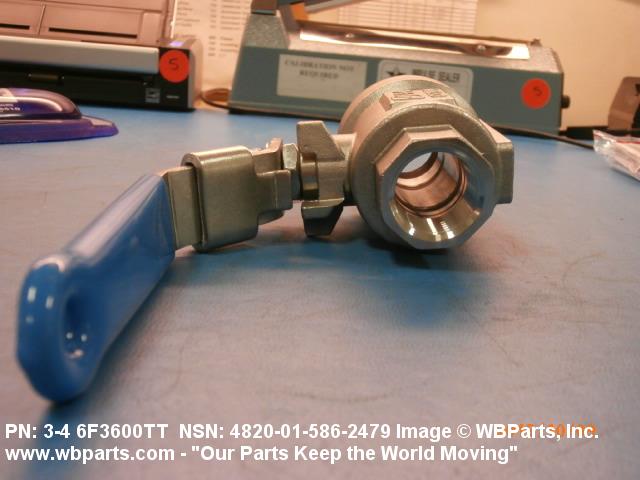

Drawings & Photos | NSN 4820-01-586-2479
Demand History | NSN 4820-01-586-2479
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-586-2479 | 2024-02-02 | 1 | United States |
| 4820-01-586-2479 | 2023-03-01 | 1 | United States |
| 4820-01-586-2479 | 2023-02-10 | 1 | US |
| 4820-01-586-2479 | 2020-04-29 | 2 | United States |
| 4820-01-586-2479 | 2019-09-09 | 1 | United States |
| 4820-01-586-2479 | 2019-08-23 | 1 | United States |
| 4820-01-586-2479 | 2017-01-20 | 1 | United States |
| 4820-01-586-2479 | 2015-09-30 | 1 | United States |
| 4820-01-586-2479 | 2015-09-30 | 1 | United States |
| 4820-01-586-2479 | 2015-09-30 | 1 | United States |
| 4820-01-586-2479 | 2015-09-28 | 4 | United States |
Cross Reference | NSN 4820-01-586-2479
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3/4 6F3600TT | 55WA2 | METSO AUTOMATION USA INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4820-01-586-2479
4820-01-586-3522, 4820-01-586-4808, 4820-01-586-5189, 4820-01-586-8208, 4820-01-586-8687
Technical Data | NSN 4820-01-586-2479
| Characteristic | Specifications |
|---|---|
| MEDIA FOR WHICH DESIGNED | WATER, FRESH SINGLE RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| MAXIMUM OPERATING PRESSURE | 1000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 100.0 DEG FAHRENHEIT SINGLE RESPONSE |
| MATERIAL | STEEL BODY AND GRAPHITE BODY |
Restrictions/Controls & Freight Information | NSN 4820-01-586-2479
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
