NSN 4820-01-592-7649 46095K42, 01-592-7649, 015927649
Product Details | BALL VALVE
4820-01-592-7649 A multi-ported, nonlubricated valve designed to provide straight through flow or ability to direct a number of flows or pressure through a single valve. The flow is controlled by the rotation of a ported ball within a suitable ported seat(s). The ball is usually engaged by a stem. It is normally operated in an open or closed position. Excludes VALVE, CHECK.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 46095K42, 4820-01-592-7649, 01-592-7649, 4820015927649, 015927649
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 18 MAR 2011 | 01-592-7649 | 20962 ( VALVE, BALL ) |

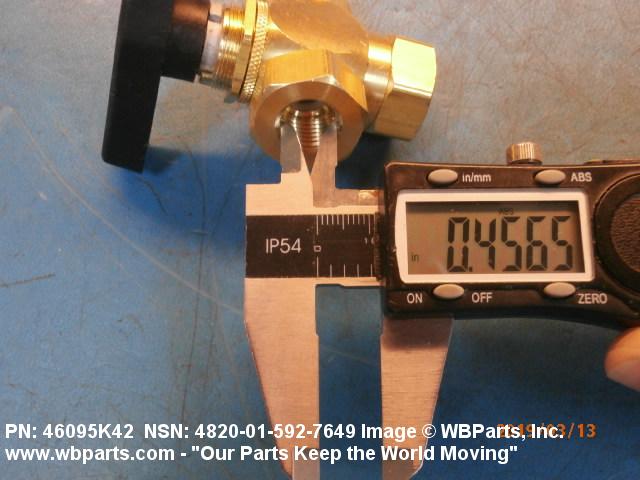

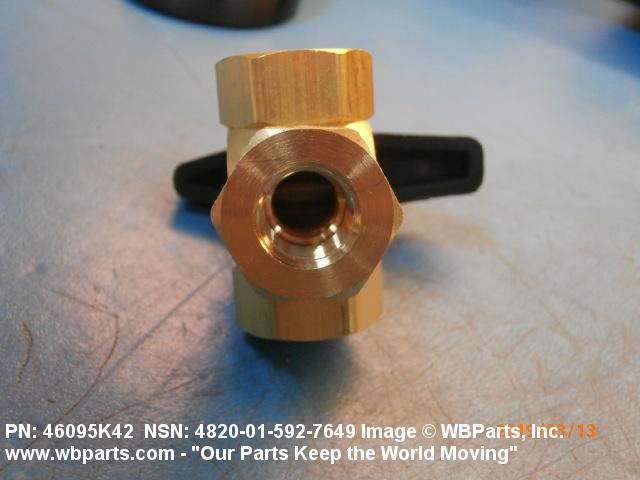

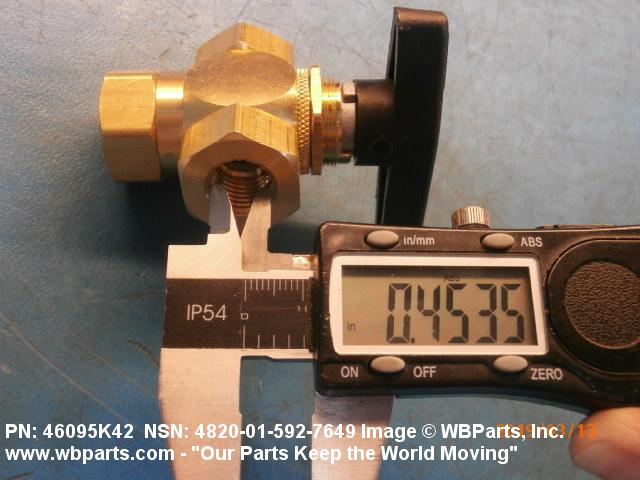

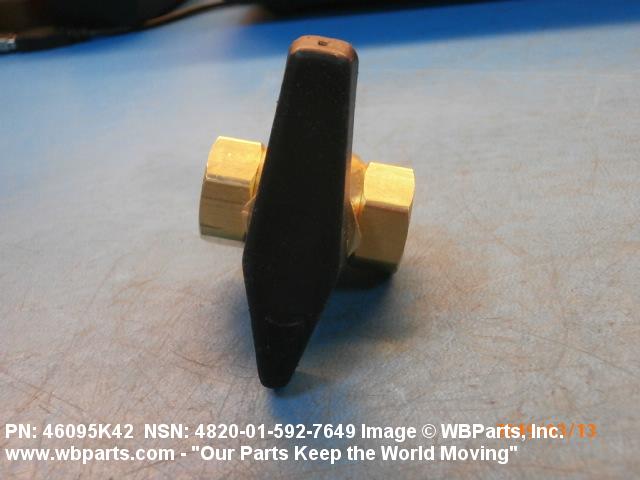

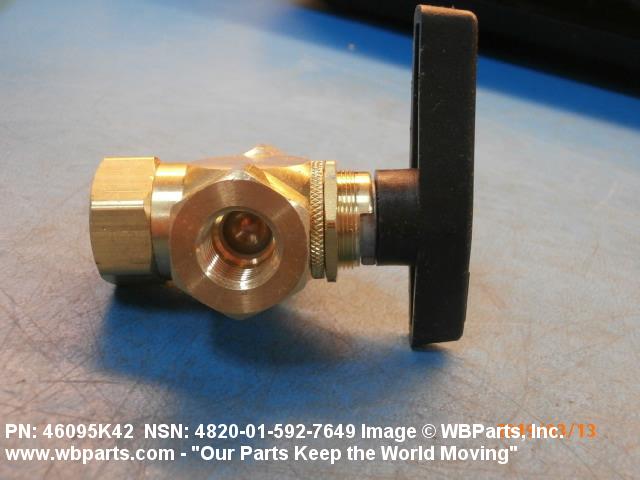

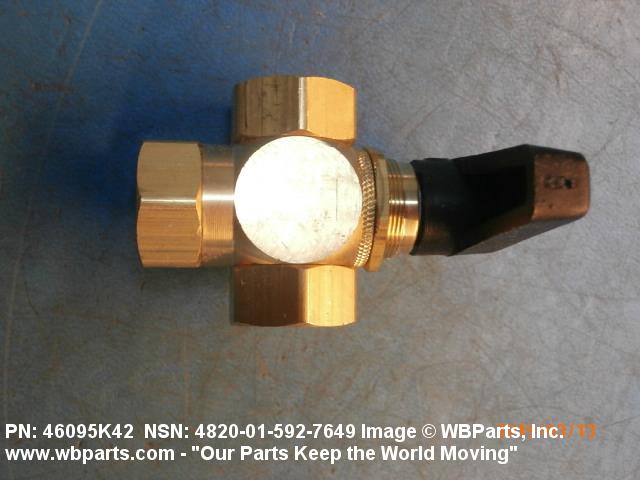

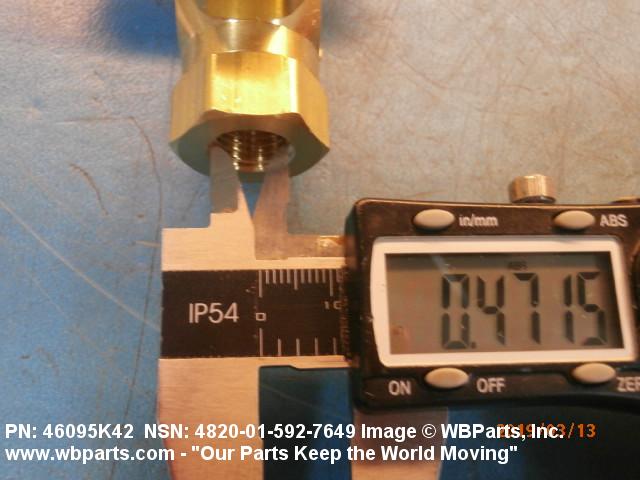

Drawings & Photos | NSN 4820-01-592-7649
Demand History | NSN 4820-01-592-7649
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4820-01-592-7649 | 2019-03-65 | 4 | United States |
Cross Reference | NSN 4820-01-592-7649
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 46095K42 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4820-01-592-7649
Technical Data | NSN 4820-01-592-7649
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | NPT ALL ENDS |
| VALVE OPERATION METHOD | MANUAL |
| STYLE DESIGNATOR | A2 CROSS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| NOMINAL THREAD SIZE | 0.250 INCHES ALL ENDS |
| CONNECTION STYLE | G9 PLAIN,OPTIONAL END(PIPE) ALL ENDS |
| FURNISHED ITEMS AND QUANTITY | 1 HANDLE |
| MATERIAL | COPPER ALLOY BODY |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| MAXIMUM OPERATING TEMP | 180.0 DEG FAHRENHEIT SINGLE RESPONSE |
Restrictions/Controls & Freight Information | NSN 4820-01-592-7649
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
