NSN 4910-01-480-9248 150-8.5, 15085, 01-480-9248
Product Details | VALVE SEAT REFACING PILOT
4910-01-480-9248 A device which, when inserted into the bore of a valve guide on an internal combustion engine, serves as a center post for aligning and guiding the grinding stone and/or reamer of a valve seat refacer.
Part Alternates: 150-8.5, 15085, 4910-01-480-9248, 01-480-9248, 4910014809248, 014809248
Maintenance and Repair Shop Equipment | Motor Vehicle Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 11 DEC 2000 | 01-480-9248 | 11030 ( PILOT, VALVE SEAT REFACING ) |
Drawings & Photos | NSN 4910-01-480-9248
Demand History | NSN 4910-01-480-9248
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 15085 | 2016-03-62 | 1 | US |
Cross Reference | NSN 4910-01-480-9248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 150-8.5 | 13484 | NEWAY MANUFACTURING, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4910-01-480-9248
Technical Data | NSN 4910-01-480-9248
| Characteristic | Specifications |
|---|---|
| DESIGN TYPE | EXPANDING |
| SIZE | 165.0 MILLIMETERS NOMINAL |

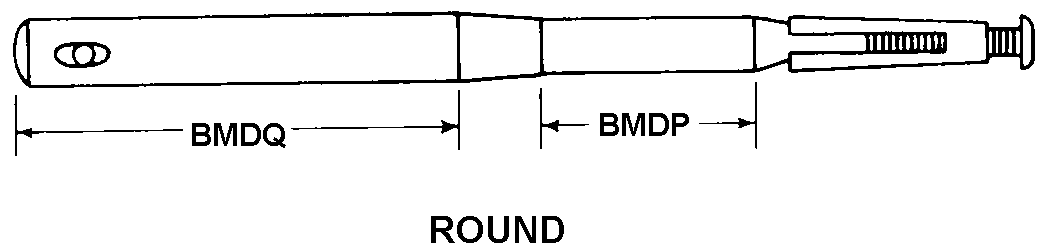

| STYLE DESIGNATOR | D3 ROUND |
Restrictions/Controls & Freight Information | NSN 4910-01-480-9248
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
