NSN 4933-00-616-3768 6163768, 00-616-3768, 006163768
Product Details | BREECHBLOCK HOLDING TOOL
4933-00-616-3768 A specially designed metallic item used to support the breechblock of an artillery weapon during assembly and disassembly.
Part Alternates: 6163768, 4933-00-616-3768, 00-616-3768, 4933006163768, 006163768
Maintenance and Repair Shop Equipment | Weapons Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 01 JAN 1963 | 00-616-3768 | 22132 ( HOLDING TOOL, BREECHBLOCK ) |
Drawings & Photos | NSN 4933-00-616-3768
Cross Reference | NSN 4933-00-616-3768
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6163768 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4933-00-616-3768
Technical Data | NSN 4933-00-616-3768
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON, MALLEABLE |

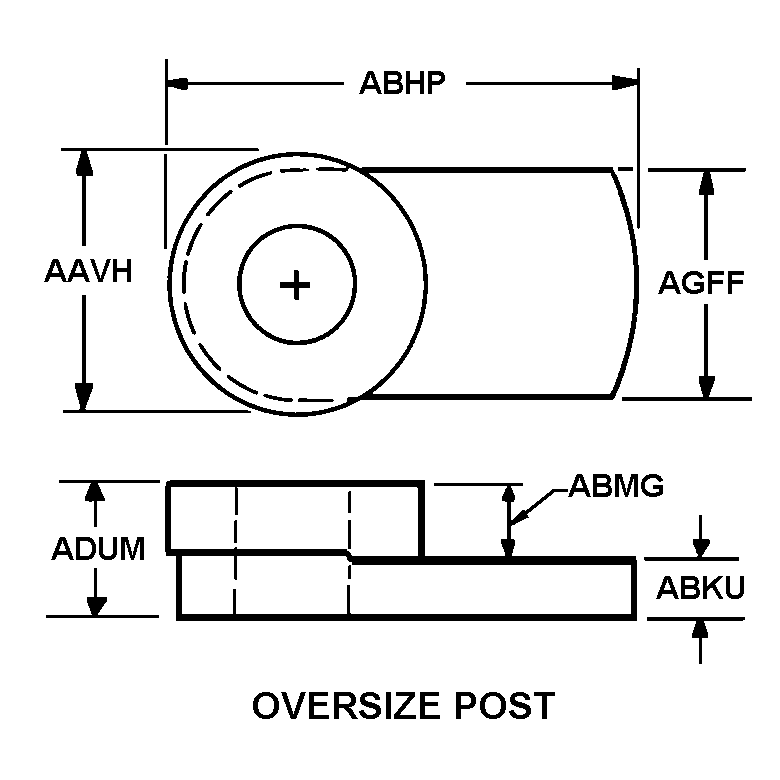

| STYLE DESIGNATOR | 1 OVERSIZE POST |
| SHOULDER DIAMETER | 2.187 INCHES MINIMUM AND 2.695 INCHES MAXIMUM |
| OVERALL LENGTH | 3.123 INCHES MINIMUM AND 3.138 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.625 INCHES NOMINAL |
| SHOULDER HEIGHT | 1.000 INCHES MINIMUM AND 1.010 INCHES MAXIMUM |
| OVERALL THICKNESS | 1.625 INCHES NOMINAL |
| FLANGE WIDTH | 1.938 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4933-00-616-3768
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
