NSN 4933-00-723-7269 7237269, 00-723-7269, 007237269
Product Details | BREECHBLOCK HOLDING TOOL
4933-00-723-7269 A specially designed metallic item used to support the breechblock of an artillery weapon during assembly and disassembly.
Part Alternates: 7237269, 4933-00-723-7269, 00-723-7269, 4933007237269, 007237269
Maintenance and Repair Shop Equipment | Weapons Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 01 JAN 1963 | 00-723-7269 | 22132 ( HOLDING TOOL, BREECHBLOCK ) |
Drawings & Photos | NSN 4933-00-723-7269
Cross Reference | NSN 4933-00-723-7269
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7237269 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4933-00-723-7269
Technical Data | NSN 4933-00-723-7269
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |

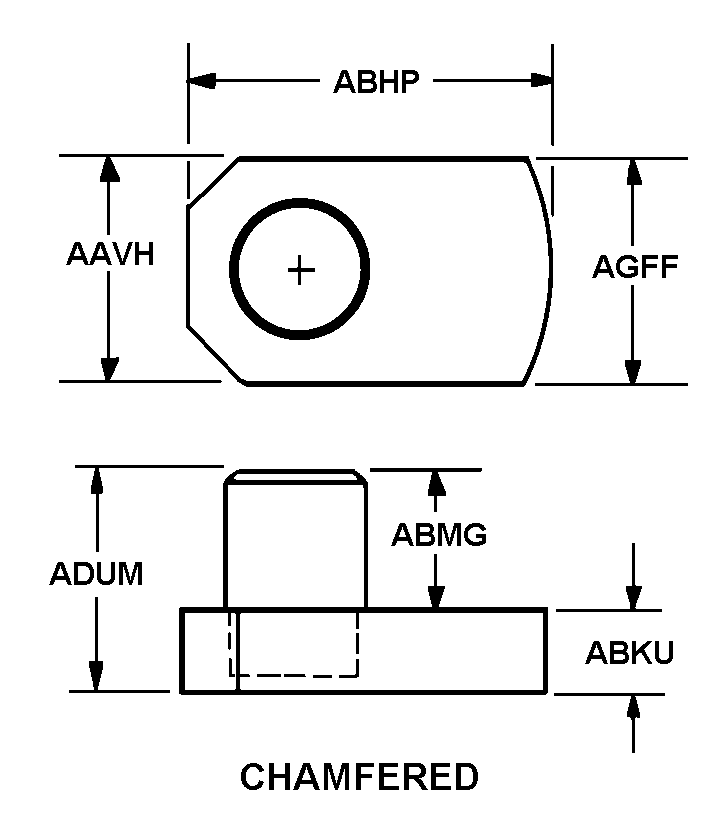

| STYLE DESIGNATOR | 4 CHAMFERED |
| SHOULDER DIAMETER | 1.239 INCHES MINIMUM AND 1.247 INCHES MAXIMUM |
| OVERALL LENGTH | 3.250 INCHES NOMINAL |
| FLANGE THICKNESS | 0.750 INCHES NOMINAL |
| SHOULDER HEIGHT | 1.250 INCHES NOMINAL |
| OVERALL THICKNESS | 2.000 INCHES NOMINAL |
| FLANGE WIDTH | 2.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4933-00-723-7269
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
