NSN 4933-00-726-5788 MAS4435, 49337265788, 4933-726-5788
Product Details | GUN BARREL REFLECTOR
4933-00-726-5788 An L-shaped housing designed for insertion into the barrel of a gun, such as a rifle, machine gun, or the like. An integral mirror provides a reflecting surface for visual inspection of the surface of the barrel interior. Excludes BORESCOPE; HOLDER, MIRROR; and HOLDER, REFLECTOR.
Part Alternates: MAS4435, 49337265788, 4933-726-5788 , 7265788, 4933-00-726-5788, 00-726-5788, 4933007265788, 007265788
Maintenance and Repair Shop Equipment | Weapons Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 01 JAN 1963 | 00-726-5788 | 22187 ( REFLECTOR, GUN BARREL ) |
Drawings & Photos | NSN 4933-00-726-5788
Demand History | NSN 4933-00-726-5788
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4933-00-726-5788 | 2023-01-31 | 6 | DIBBS |
| 4933-00-726-5788 | 2022-11-318 | 6 | DIBBS |
| 4933-00-726-5788 | 2022-10-304 | 6 | DIBBS |
| 4933-00-726-5788 | 2015-03-62 | 6 | DIBBS |
| 4933-00-726-5788 | 2014-05-149 | 6 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 4933-00-726-5788
Technical Data | NSN 4933-00-726-5788
| Characteristic | Specifications |
|---|---|
| HOUSING MATERIAL | STEEL |
| SIZE DESIGNATOR | .30 CAL |

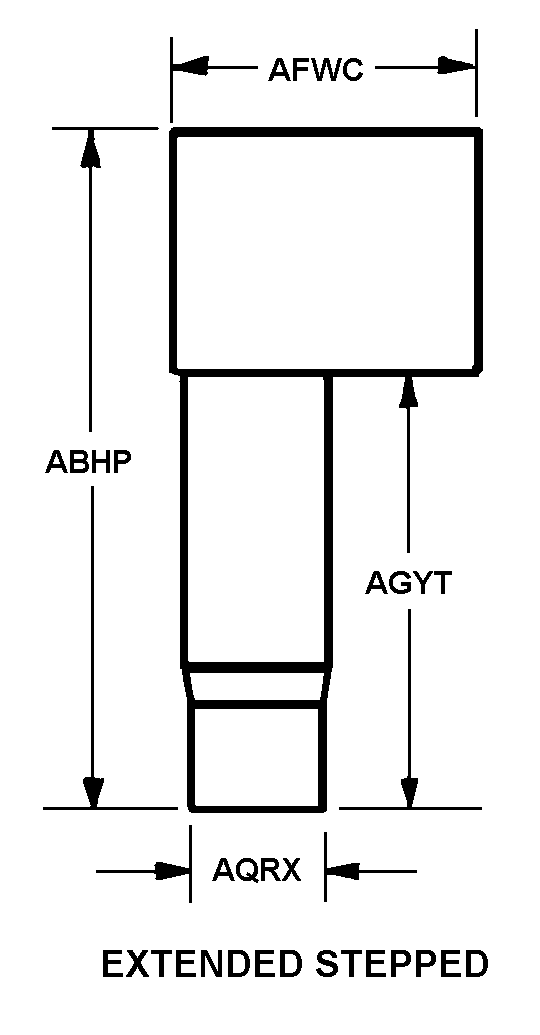

| STYLE DESIGNATOR | 2 EXTENDED STEPPED |
| OVERALL LENGTH | 2.812 INCHES NOMINAL |
| HOUSING HEIGHT | 1.000 INCHES NOMINAL |
| TUBE LENGTH | 1.453 INCHES NOMINAL |
| TUBING OUTSIDE DIAMETER | 0.463 INCHES MINIMUM AND 0.468 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 4933-00-726-5788
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 088460 | GLASS REFLECTORS NOI IN BARREL/BOX |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4933-00-726-5788
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
