NSN 4940-00-106-7833 E-40-S, EN40SMTM, EN-40-S-MTM
Product Details | TRAILER MOUNTED PRESSURE JET STEAM CLEANER
4940-00-106-7833 A unit designed to remove surface deposits of foreign materials by means of a forced stream of steam and detergent or water. Excludes CLEANER, STEAM, PRESSURE JET; DISHWASHING MACHINE, COMMERCIAL; DISHWASHING MACHINE, HOUSEHOLD; and CLEANER, PRESSURE, SOLVENT-WATER
Part Alternates: E-40-S, EN40SMTM, EN-40-S-MTM, E350, E40S, 4940-00-106-7833, 00-106-7833, 4940001067833, 001067833
Maintenance and Repair Shop Equipment | Miscellaneous Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 29 JUL 1968 | 00-106-7833 | 19228 ( CLEANER, STEAM, PRESSURE JET, TRAILER MOUNTED ) |
Drawings & Photos | NSN 4940-00-106-7833
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4940-00-106-7833
Related Products | NSN 4940-00-106-7833
Technical Data | NSN 4940-00-106-7833
| Characteristic | Specifications |
|---|---|
| STEAM GENERATOR | INCLUDED |
| OUTSIDE STEAM SOURCE | NOT REQUIRED |
| OUTSIDE WATER SOURCE | REQUIRED |
| MAXIMUM CLEANING SOLUTION JET PRESSURE RATING | 100.0 POUNDS PER SQUARE INCH |
| CLEANING SOLUTION MAXIMUM DISCHARGE RATE | 40.0 GALLONS PER HOUR |
| MAXIMUM LIQUID JET PRESSURE RATING | NOT RATED |
| CLEANING GUN QUANTITY | 1 |
| NOZZLE ADJUSTABILITY | NONADJUSTABLE |
| HAZARD PROTECTION FEATURE | NONSPARKING |
| HOSE CONNECTION QUANTITY | 1 |
| HOSE LENGTH | 25.000 FEET NOMINAL |
| HEATING METHOD | ELECTRICAL |
| POWER SOURCE | ELECTRIC MOTOR |
| QUANTITY | 1 |
| POWER SOURCE HORSEPOWER RATING | 0.25 |
| CURRENT TYPE | AC |
| VOLTAGE IN VOLTS | 220.0 |
| FREQUENCY IN HERTZ | 60.0 |
| PHASE | THREE |
| PUMP QUANTITY | 1 |
| PUMP CAPACITY | 40.0 GALLONS PER HOUR NOMINAL |
| STORAGE TANK QUANTITY | 1 |
| STORED MATERIAL | CLEANING SOLUTION |
| CAPACITY | 12.0 GALLONS |
| MOUNTING TYPE | TRAILER |
| WHEEL QUANTITY | 4 |
| TIRE TYPE | SOLID RUBBER |
| TIRE SIZE | 7 IN. DIA |
| WHEEL DIAMETER | 7.000 INCHES NOMINAL |

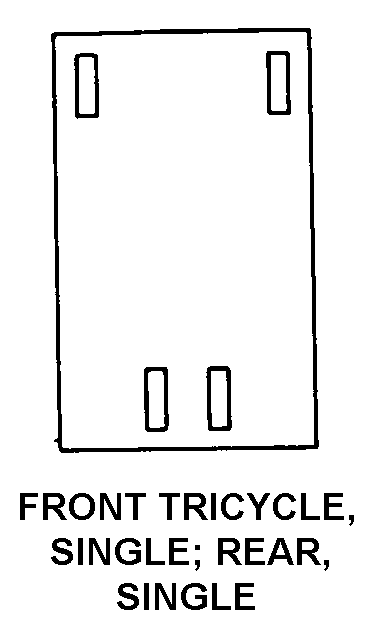

| WHEEL ARRANGEMENT STYLE | 7 FRONT TRIYCYCLE, SINGLE, REAR, SINGLE |
| RETRACTABLE SUPPORT FEATURE | NOT INCLUDED |
| FURNISHED ITEMS AND QUANTITY | HOSE WATER SUPPLY 50 FT /1/ |
Restrictions/Controls & Freight Information | NSN 4940-00-106-7833
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 177680 | SPRAYER/STEAM/ETC CLEAN OUTFIT |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 894 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | R | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4940-00-106-7833
Army
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 1 | REPARABLE ITEMS (Exclusive of Insurance and Provisioning Items.) This code will be used to identify serviceable or unserviceable items of a durable nature which when unserviceable normally can be repaired economically by depots or lower echelons of maintenance. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | N | Nonexpendable item. An item of Army property coded with an ARC of?N?in the AMDF. Nonexpendable items require property book accountability after issue from the stock record account. Commercial and fabricated items similar to items coded ?N? in the AMDF are considered nonexpendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | H | If condemned or uneconomically repairable, then dispose at Intermediate level. |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | TG | TG:AF SICA RESIDUAL MMAC-WR-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
