NSN 4940-01-357-7962 5/3000GHOT, 53000GHOT, 01-357-7962
Product Details | TRAILER MOUNTED PRESSURE JET STEAM CLEANER
4940-01-357-7962 A unit designed to remove surface deposits of foreign materials by means of a forced stream of steam and detergent or water. Excludes CLEANER, STEAM, PRESSURE JET; DISHWASHING MACHINE, COMMERCIAL; DISHWASHING MACHINE, HOUSEHOLD; and CLEANER, PRESSURE, SOLVENT-WATER
Part Alternates: 5/3000GHOT, 53000GHOT, 4940-01-357-7962, 01-357-7962, 4940013577962, 013577962
Maintenance and Repair Shop Equipment | Miscellaneous Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 30 APR 1992 | 01-357-7962 | 19228 ( CLEANER, STEAM, PRESSURE JET, TRAILER MOUNTED ) |
Drawings & Photos | NSN 4940-01-357-7962
Cross Reference | NSN 4940-01-357-7962
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5/3000GHOT | 64030 | HYDRO ENGINEERING, INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 4940-01-357-7962
Related Products | NSN 4940-01-357-7962
Technical Data | NSN 4940-01-357-7962
| Characteristic | Specifications |
|---|---|
| STEAM GENERATOR | INCLUDED |
| OUTSIDE STEAM SOURCE | NOT REQUIRED |
| OUTSIDE WATER SOURCE | NOT REQUIRED |
| MAXIMUM CLEANING SOLUTION JET PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH |
| CLEANING SOLUTION MAXIMUM DISCHARGE RATE | 300.0 GALLONS PER HOUR |
| MAXIMUM LIQUID JET PRESSURE RATING | 3000.0 POUNDS PER SQUARE INCH |
| MAXIMUM LIQUID DISCHARGE RATE | 300.0 GALLONS PER HOUR |
| STORAGE TANK QUANTITY | 2 |
| STORED MATERIAL | WATER AND SOAP |
| CAPACITY | 525.0 GALLONS AND 55.0 GALLONS |
| MOUNTING TYPE | TRAILER OR WHEEL |
| WHEEL QUANTITY | 4 |
| TIRE TYPE | PNEUMATIC |
| TIRE SIZE | 6.70-15 |
| WHEEL DIAMETER | 15.000 INCHES NOMINAL |

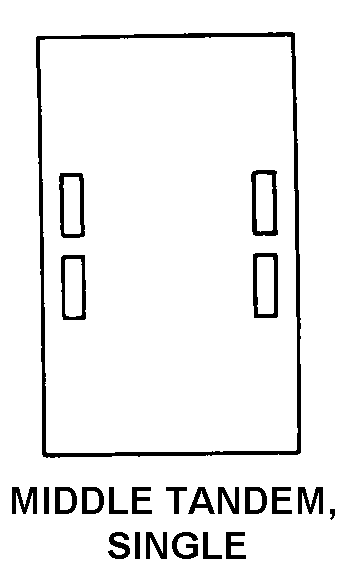

| WHEEL ARRANGEMENT STYLE | 4 MIDDLE TANDEM, SINGLE |
| RETRACTABLE SUPPORT FEATURE | NOT INCLUDED |
| SPECIAL FEATURES | GASOLINE ENGINE HP: 18; STARTER: ELECTRIC STD; FUEL TANK CAP.: 10 GAL; ELECTRICAL CONTROL:2000 W,115 VAC,BELT DRIVEN GENERATOR SUPPLIES BURNER AND AUX 115 VAC OUTLET ON AN ENGINE SYSTEMS; FRAME: STRUCTURAL STEEL FRAME COMPRISED OF WELDED 3 IN. AND 4 IN. CHANNEL; BUILT IN WAND HOLSTERS; HAS A LOCKABLE FULL ACCESS DOOR AND PROTECTS PUMPS,ENGINE,BATTERT,GENERATOR,AN D CONTROLS; HEAVY DUTY LEAF SPRING SUSPENSION; 200 FT WIRE-BRAID HOSE WITH QUICK DISCONNECT FITTINGS; DISCHARGE SOAP INJECTION USING PRECISION METERING VALVE CONTROLLED AT THE SPRAY WAND; AXLE: 2; HITCH COUPLER BALL SIZE 2.000 IN.; DIM. 181 IN. LG; 92 IN. W; 76 IN. H; WEIGHT: 2200/6900 LBS |
| III END ITEM IDENTIFICATION | MULTI-APPLICATION |
| MANUFACTURERS CODE | 64030 |
| DESIGN CONTROL REFERENCE | 5/3000GHOT |
Restrictions/Controls & Freight Information | NSN 4940-01-357-7962
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 148000 | OUTFITS SHOPS MILITARY REPAIR |
| Less than car load rating | ||
| Less than truck load rating | H | 110.0 |
| Water commodity Code | 593 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4940-01-357-7962
Air Force| Category | Code | Description |
|---|---|---|
| Fund Code | LP | Items initially authorized for local purchase. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RH | TG:AUTO TEST EQUIPMENT/AUTO TEST SYSTEMS (ATE/ATS) (FSC RESIDUAL MMAC) |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | L | LOCAL PURCHASE # (NON-STOCKED ITEMS) Defense Logistics Agency (DLA)/GSA/Service/Agency-managed items authorized for local purchase as normal means of support at base, post, camp or station level. Item not stocked in wholesale distribution system of IMM/Service/Agency ICP. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
