NSN 5120-00-017-9166 6760061, 6-76006-1, 00-017-9166
Product Details | OPEN END WRENCH
5120-00-017-9166 A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: 6760061, 6-76006-1, 5120-00-017-9166, 00-017-9166, 5120000179166, 000179166
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1961 | 00-017-9166 | 17182 ( WRENCH, OPEN END ) |

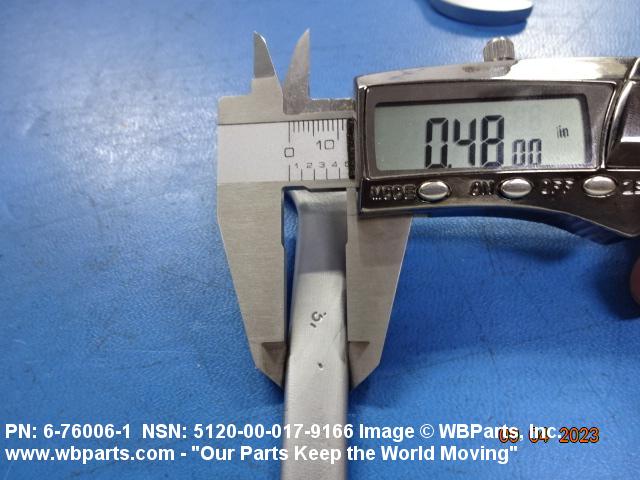

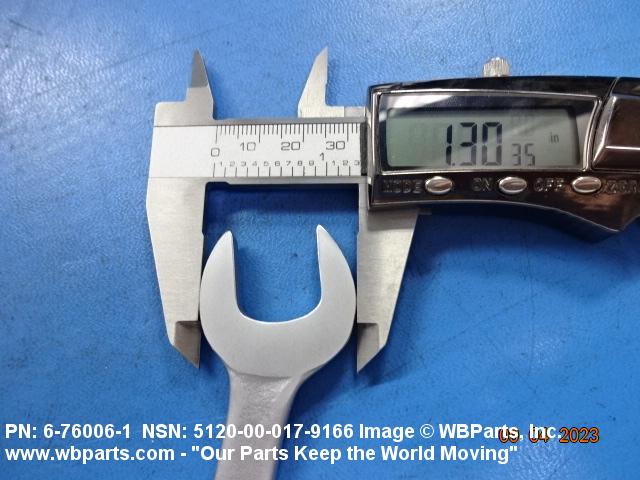

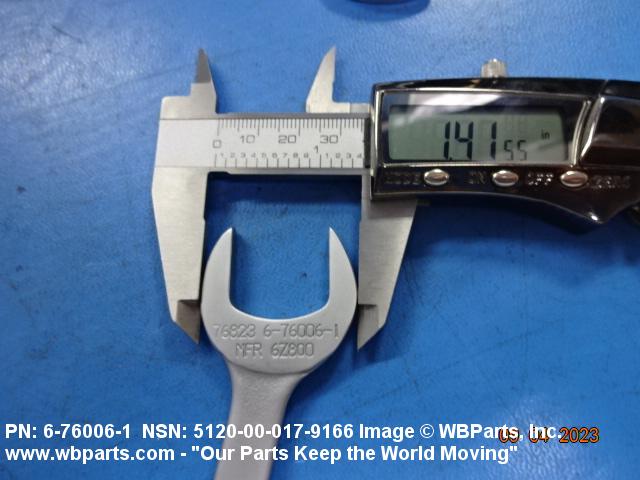

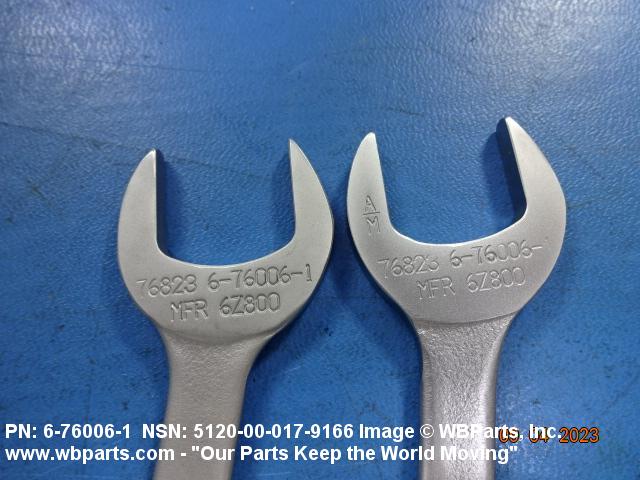

Drawings & Photos | NSN 5120-00-017-9166
Demand History | NSN 5120-00-017-9166
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-017-9166 | 2025-05-142 | 2 | us |
| 5120-00-017-9166 | 2023-08-219 | 2 | United States |
| 6760061 | 2021-09-245 | 4 | United States |
| 6760061 | 2010-08-216 | 4 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-017-9166
Related Products | NSN 5120-00-017-9166
Technical Data | NSN 5120-00-017-9166
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 104 DOUBLE HEAD |

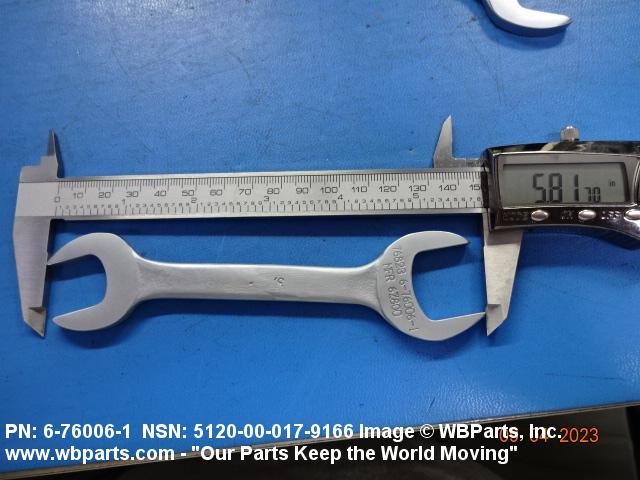

| OVERALL LENGTH | 5.880 INCHES NOMINAL |

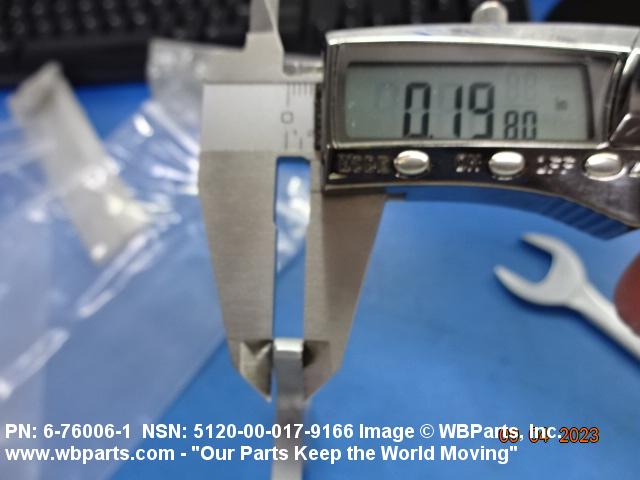

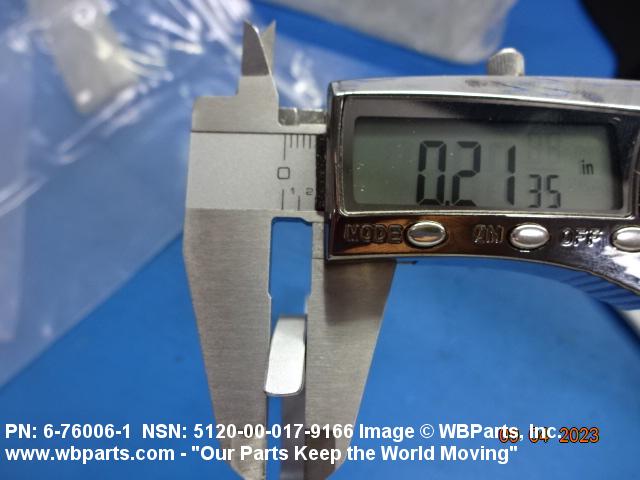

| LARGE END HEAD THICKNESS | 0.218 INCHES NOMINAL |
| SMALL END HEAD THICKNESS | 0.218 INCHES NOMINAL |
| SMALL END HEAD ANGLE | 15.0 DEGREES NOMINAL |
| LARGE END HEAD ANGLE | 15.0 DEGREES NOMINAL |

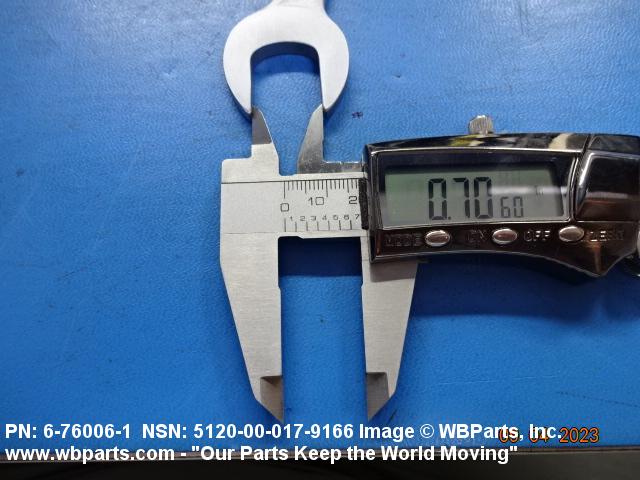

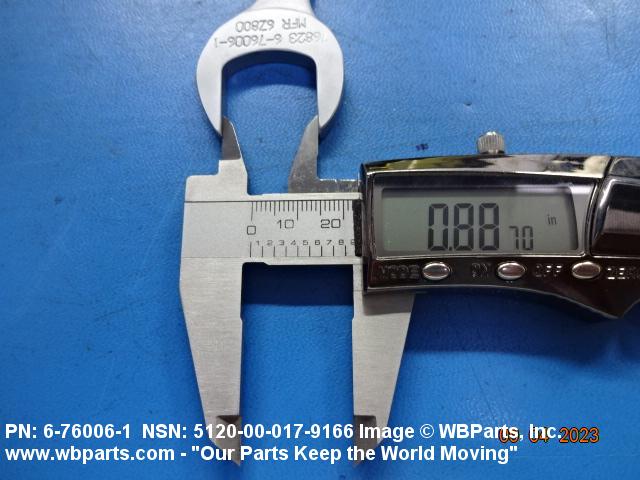

| WRENCHING SURFACE SIZE | 0.692 INCHES NOMINAL FIRST END 0.880 INCHES NOMINAL SECOND END |
| WRENCHING SURFACE SHAPE | OVAL BOTH ENDS INTERNAL |
Restrictions/Controls & Freight Information | NSN 5120-00-017-9166
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-017-9166
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
