Product Details | TERMINAL CRIMPING TOOL CONTACT POSITIONER
5120-00-133-1770 A device designed to regulate the positioning of the contact crimp barrel, the crimp depth, and the point of ratchet release in a tool which is designed to affix a terminal to an electrical wire.
Part Alternates: M22520/7-03, M22520703, MILC22520, MIL-C-22520, MIL-C-22520/7, MILC225207, 616328, 862, 86-2, 5120-00-133-1770, 00-133-1770, 5120001331770, 001331770
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 MAY 1974 | 00-133-1770 | 27126 ( CONTACT POSITIONER, TERMINAL CRIMPING TOOL ) |

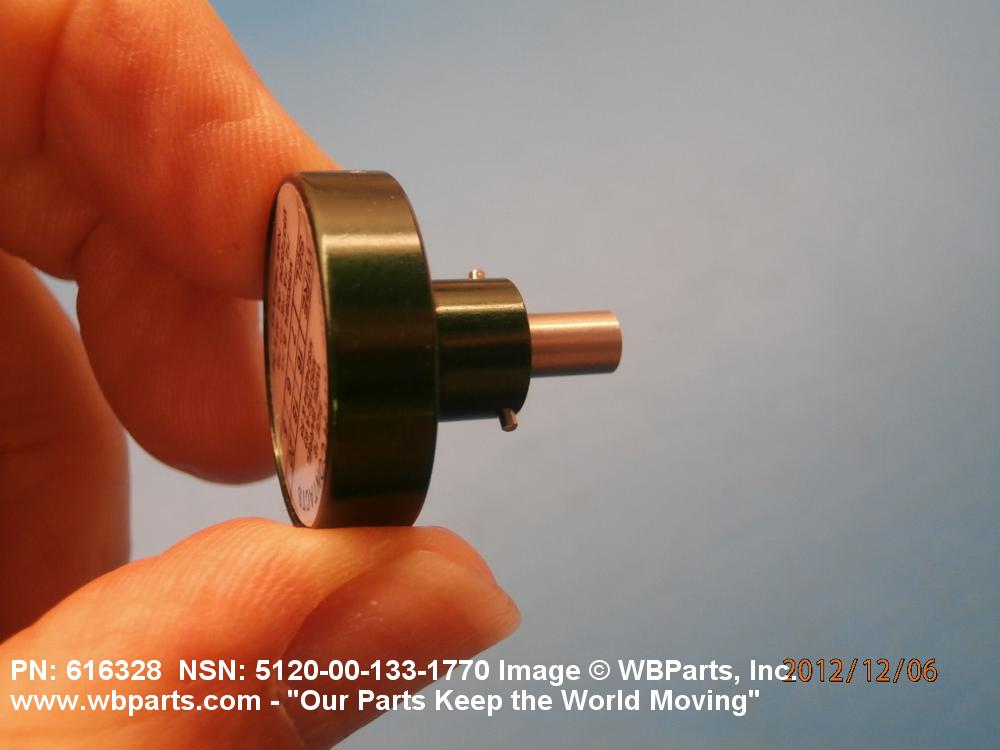

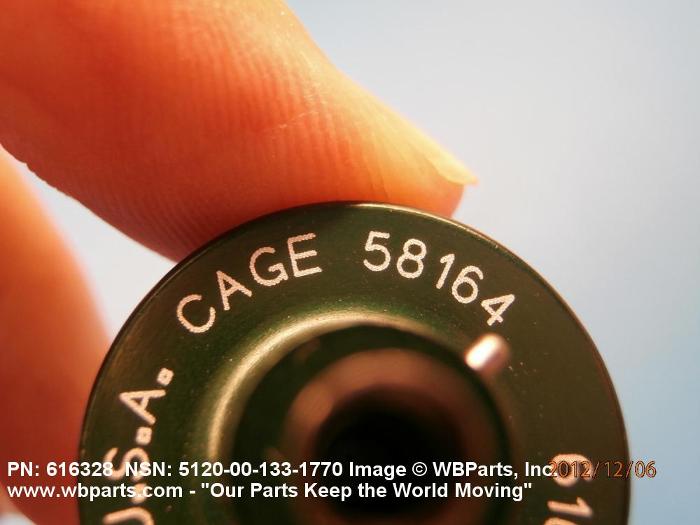

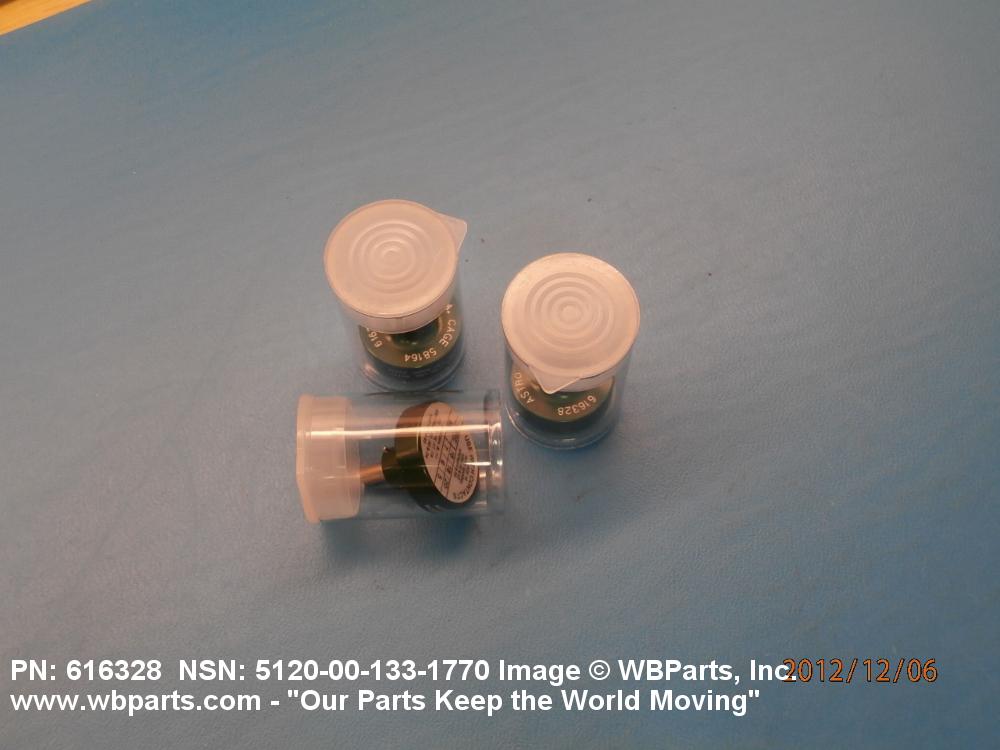

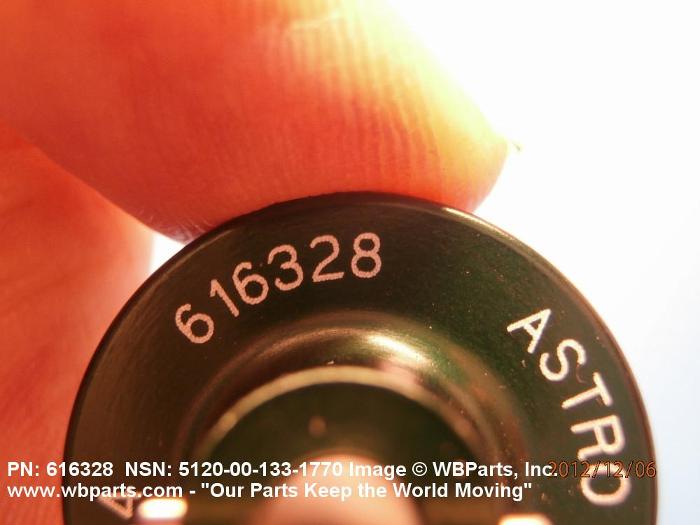

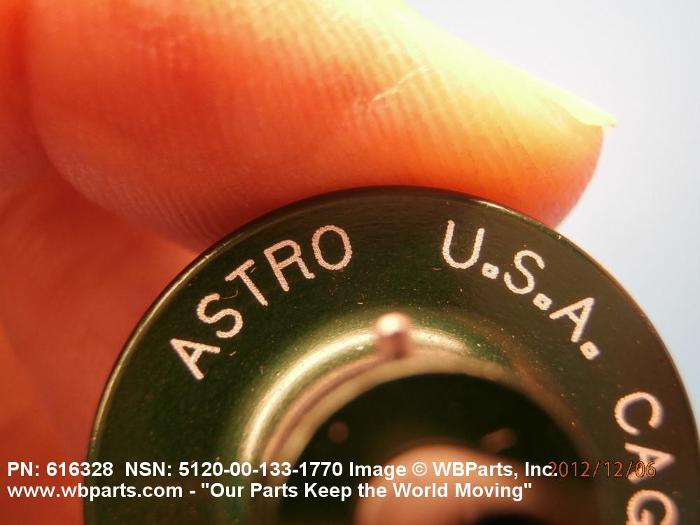

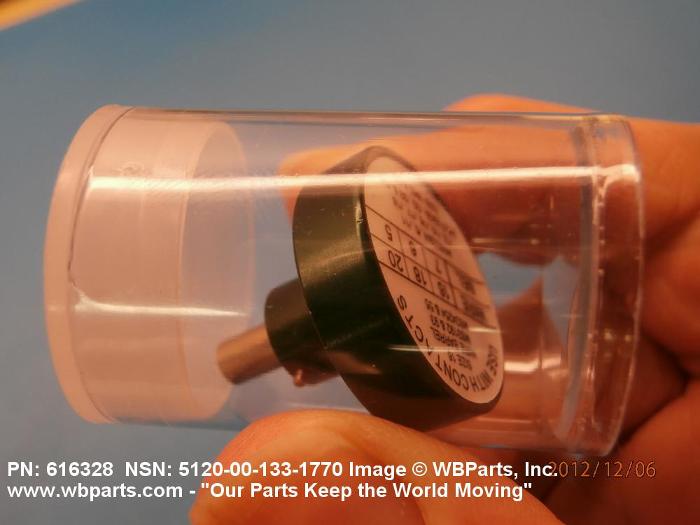

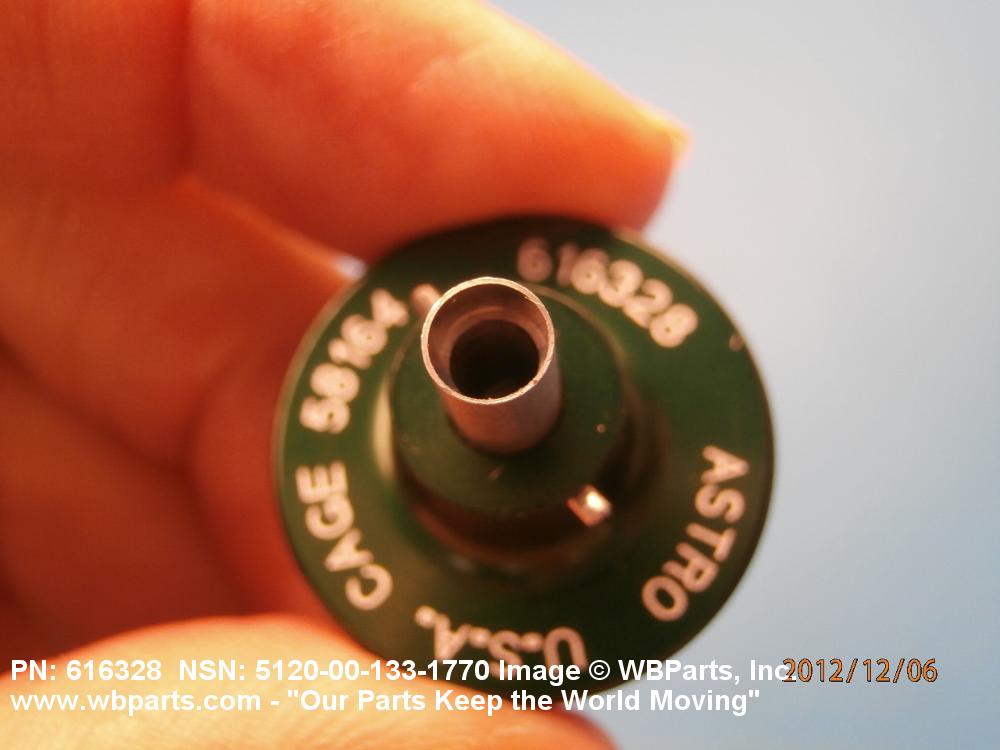

Drawings & Photos | NSN 5120-00-133-1770
Demand History | NSN 5120-00-133-1770
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-133-1770 | 2014-11-18 | 10 | United States |
| 5120-00-133-1770 | 2012-11-05 | 5 | United States |
| 5120-00-133-1770 | 2012-10-24 | 3 | United States |
| 5120-00-133-1770 | 2012-08-29 | 8 | us |
| 5120-00-133-1770 | 2012-08-06 | 8 | US |
| 5120-00-133-1770 | 2011-12-15 | 3 | United States |
| M22520703 | 2010-04-08 | 2 | China |
Cross Reference | NSN 5120-00-133-1770
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 616328 | 58164 | ASTRO TOOL CORP. |
| 86-2 | 11851 | DANIELS MANUFACTURING CORPORATION |
| 86-2 | F7391 | OCETA |
| M22520/7-03 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-22520 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-C-22520/7 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5120-00-133-1770
Related Products | NSN 5120-00-133-1770
5120-00-133-1772, 5120-00-133-1778, 5120-00-133-1781, 5120-00-133-1782, 5120-00-133-1785
Technical Data | NSN 5120-00-133-1770
| Characteristic | Specifications |
|---|---|
| TOOL TYPE FOR WHICH DESIGNED | HAND |

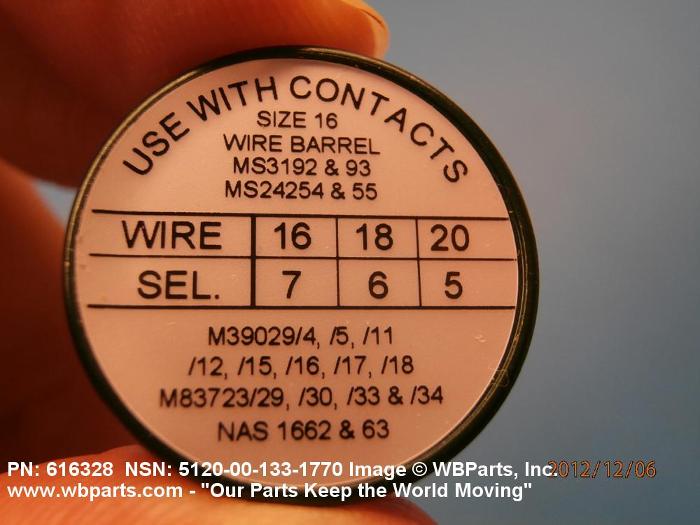

| CONTACT SIZE FOR WHICH DESIGNED | NO.MS3192-16-16A,MS3193--16-16A,M S24254-16P,MS24255-16S,MS39029-4- 16-16 AND 4-12-16 AND 5-16-16 AND 5-12-16 AND 11-16-16 AND 12-16-16 AND 15-16-16 AND 16-16-16 AND 18-16-16,M83723-29T16 AND 30T16 AND 33B16 AND 34B16,NAS1662-16,NAS1663-16 |
| NONDEFINITIVE SPEC/STD DATA | M22520-7-03 PART |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILC22520-7 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M22520-7-03 |
Restrictions/Controls & Freight Information | NSN 5120-00-133-1770
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | 75 | GSA, FSS/FCSC Washington, DC 20406 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-133-1770
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
