NSN 5120-00-184-8560 AA1351, A-A-1351, AN850511
Product Details | OPEN END WRENCH
5120-00-184-8560 A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: AA1351, A-A-1351, AN850511, AN8505-11, B107.100 , B107.39 , B107.39 TY2 , B107100, B10739, B10739TY2, CW072, S20111, TE8560, GGGW636, GGG-W-636, GGG-W-636 TY15, GGGW636TY15, K35511, 1047308111, 104-73081-11, 5120-00-184-8560, 00-184-8560, 5120001848560, 001848560
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-184-8560 | 17182 ( WRENCH, OPEN END ) |

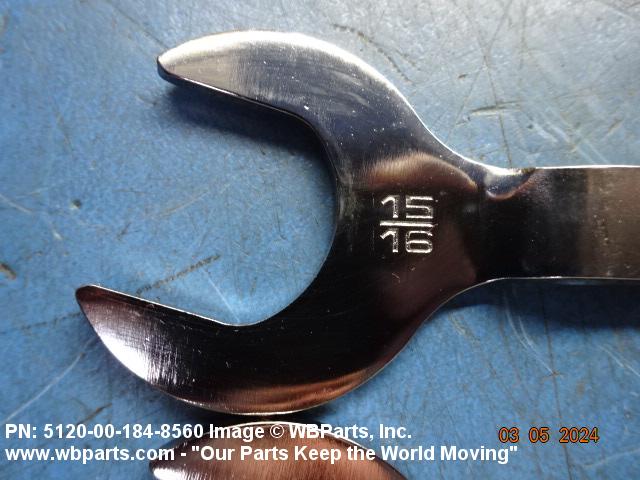

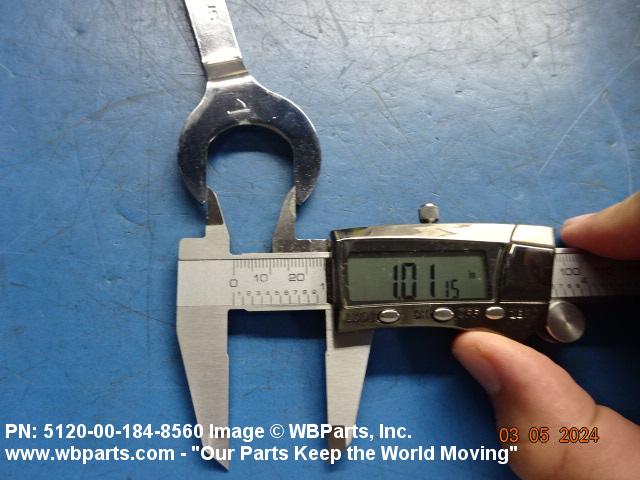

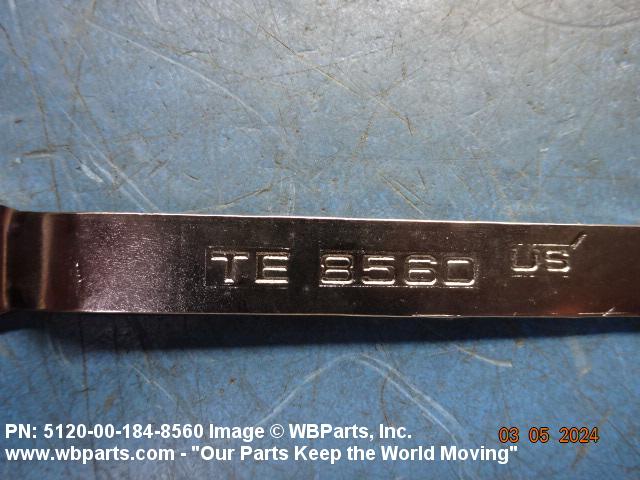

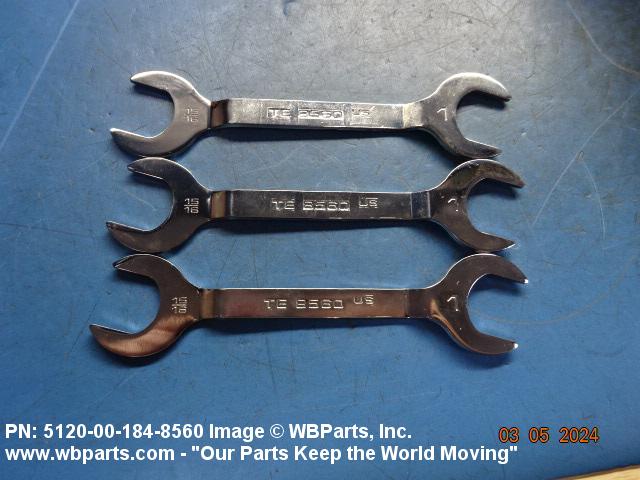

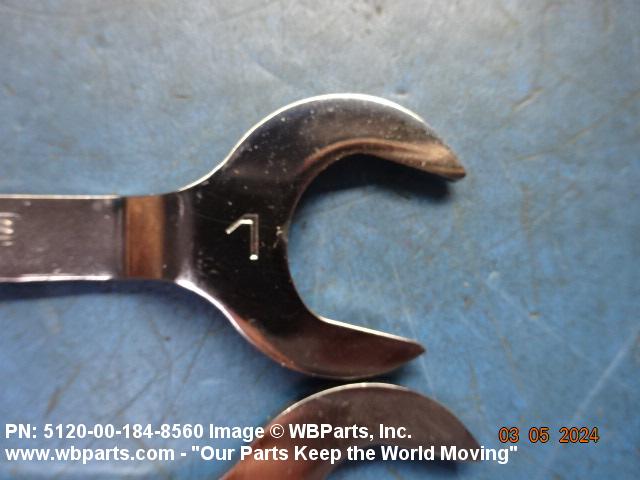

Drawings & Photos | NSN 5120-00-184-8560
Demand History | NSN 5120-00-184-8560
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-184-8560 | 2025-08-230 | 4 | United States |
| 5120-00-184-8560 | 2024-05-136 | 6 | United States |
| 5120-00-184-8560 | 2024-04-103 | 6 | United States |
| 5120-00-184-8560 | 2024-04-99 | 6 | United States |
| 5120-00-184-8560 | 2024-03-75 | 6 | United States |
| 5120-00-184-8560 | 2024-01-30 | 2 | United States |
| 5120-00-184-8560 | 2024-01-30 | 11 | United States |
| 5120-00-184-8560 | 2024-01-30 | 21 | United States |
| 5120-00-184-8560 | 2024-01-30 | 95 | United States |
| 5120-00-184-8560 | 2024-01-30 | 143 | United States |
| B107100 | 2021-01-16 | 2 | US |
| B107100 | 2018-09-255 | 1 | US |
| 5120-00-184-8560 | 2018-08-234 | 20 | US |
| 5120-00-184-8560 | 2017-04-111 | 1 | Taiwan |
| B107.100 | 2011-10-278 | 4 | US |
Cross Reference | NSN 5120-00-184-8560
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 104-73081-11 | 43999 | BOEING COMPANY, THE DBA BOEING |
| A-A-1351 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| AN8505-11 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| B107.100 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.39 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.39 TY2 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| CW072 | 71790 | CURTISS-WRIGHT CORP AIRPLANE DIV |
| GGG-W-636 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-W-636 TY15 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| K35511 | 18355 | BOEING COMPANY, THE DBA BOEING |
| K35511 | 88277 | BOEING COMPANY, THE DBA BOEING |
| S20111 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| TE8560 | 0FKL0 | TIMBER EDGE MACHINE INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-184-8560
Technical Data | NSN 5120-00-184-8560
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | NICKEL AND CHROMIUM OVERALL |
| STYLE DESIGNATOR | 106 THIN DOUBLE HEAD, DOUBLE OFFSET BOTH ENDS |
| OVERALL LENGTH | 7.500 INCHES NOMINAL |
| OFFSET HEIGHT | 0.188 INCHES NOMINAL |
| LARGE END HEAD THICKNESS | 0.125 INCHES NOMINAL |
| SMALL END HEAD THICKNESS | 0.125 INCHES NOMINAL |
| SMALL END HEAD ANGLE | 15.0 DEGREES NOMINAL |
| LARGE END HEAD ANGLE | 15.0 DEGREES NOMINAL |
| WRENCHING SURFACE SIZE | 0.938 INCHES NOMINAL FIRST END 1.000 INCHES NOMINAL SECOND END |
| WRENCHING SURFACE SHAPE | OVAL BOTH ENDS INTERNAL |
| SPECIAL FEATURES | FORGED STEEL |
Restrictions/Controls & Freight Information | NSN 5120-00-184-8560
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
