Product Details | BOILER TUBE WIRE BRUSH
5120-00-223-7976 A sectional item used to clean the internal surfaces of boiler tubes, condenser tubes, heat exchanger tubes, and the like. It may be hand-operated or power driven and of the expanding or nonexpanding type. It does not contain a scraper.20251200032Hand Tools, Nonedged, Nonpowered51300024Hand Tools, Power Driven
Part Alternates: 44038, 63INCH, 6-3INCH, 9001008, 5120-00-223-7976, 00-223-7976, 5120002237976, 002237976
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-223-7976 | 04807 ( BRUSH, WIRE, BOILER TUBE ) |

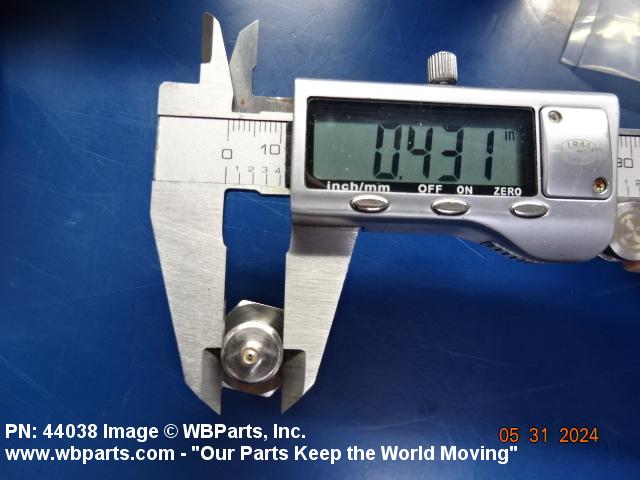

Drawings & Photos | NSN 5120-00-223-7976
Demand History | NSN 5120-00-223-7976
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5120-00-223-7976
Related Products | NSN 5120-00-223-7976
5120-00-223-8133, 5120-00-223-8134, 5120-00-223-8135, 5120-00-223-8136, 5120-00-223-8137
Technical Data | NSN 5120-00-223-7976
| Characteristic | Specifications |
|---|---|

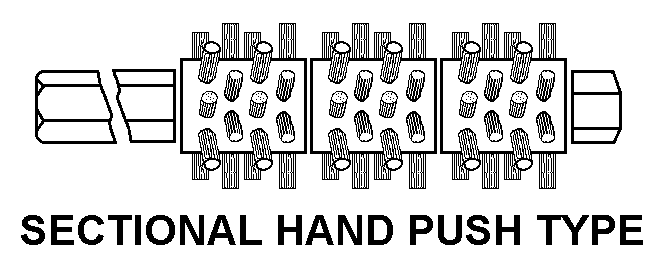

| STYLE DESIGNATOR | C1 SECTIONAL HAND PUSH TYPE |
| BOILER TUBE OUTSIDE DIAMETER FOR WHICH DESIGNED | 3.000 INCHES NOMINAL |
| BOILER TUBE WALL THICKNESS FOR WHICH DESIGNED | 0.109 INCHES NOMINAL |
| POWER OPERATING FEATURE | NOT INCLUDED |
| CONNECTOR END DESIGN | MALE OR FEMALE |
| CONNECTION FACILITY SCREW THREAD DIAMETER | 0.375 INCHES NOMINAL |
| CONNECTION FACILITY SCREW THREAD QUANTITY PER INCH | 18.000 |
| CONNECTION FACILITY SCREW THREAD SERIES DESIGNATOR | NPT |
Restrictions/Controls & Freight Information | NSN 5120-00-223-7976
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 000000 | NO NMFC FREIGHT DESCRIPTION |
| Less than car load rating | ||
| Less than truck load rating | Z | No Rating |
| Water commodity Code | 764 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-223-7976
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | D | Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
