5120-00-242-3263 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.2025120000065200043Dental Instruments, Equipment, and Supplies

Part Alternates: AA2411, A-A-2411, B107.14, B107.14 TY1CLCST1, B107.14M, B107.14M TY1CLBST1, B107.300 , B10714, B10714M, B10714MTY1CLBST1, B10714TY1CLCST1, B107300, 69969, 5120-00-242-3263, 00-242-3263, 5120002423263, 002423263

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 01 JAN 1963 00-242-3263

Drawings & Photos | NSN 5120-00-242-3263


Demand History | NSN 5120-00-242-3263

Part Number Request Date QTY Origin
B10714 2024-03-14 1 United States
5120-00-242-3263 2023-06-22 4 US
B107300 2022-03-16 1 US
B107300 2022-03-16 1 US
B10714TY1CLCST1 2021-09-09 1 US
AA2411 2021-01-16 4 US
B10714M 2014-03-04 2 Taiwan
AA2411 2013-04-25 1 US
A-A-2411 2013-02-15 2 United States
AA2411 2012-06-25 1 United States
B10714M 2011-07-04 7 Pakistan

Cross Reference | NSN 5120-00-242-3263

Part Number Cage Code Manufacturer
69969 07505 APPLIED POWER INC POWER PACKER
A-A-2411 58536 FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES
B107.14 05047 AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B107.14 TY1CLCST1 80244 GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
B107.14M 05047 AMERICAN SOCIETY OF MECHANICAL ENGINEERS
B107.14M TY1CLBST1 80244 GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE
B107.300 05047 AMERICAN SOCIETY OF MECHANICAL ENGINEERS

Request a Quote

What Our Customers Say

Compare

NSNs for Compare ( up to 4 ): Add 5120-00-242-3263

Technical Data | NSN 5120-00-242-3263

Characteristic Specifications
MATERIAL STEEL OVERALL
SURFACE TREATMENT CHROMIUM OVERALL

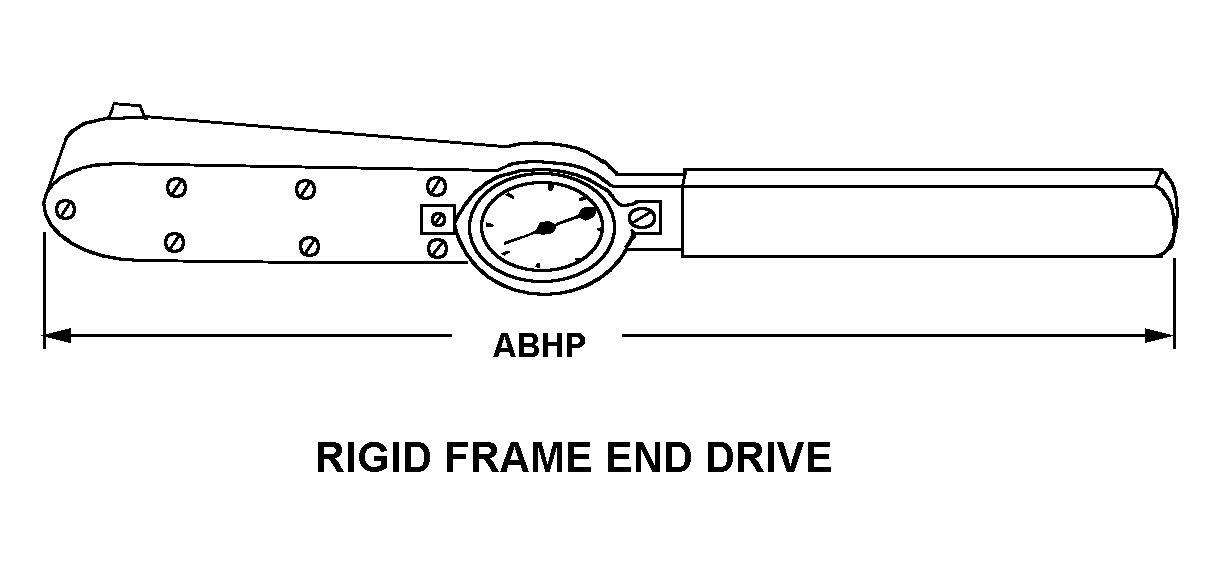

STYLE DESIGNATOR 850 RIGID FRAME END DRIVE
OVERALL LENGTH ANY ACCEPTABLE
DRIVE SURFACE SIZE 0.750 INCHES NOMINAL SINGLE END
DRIVE END SHAPE SQUARE SINGLE END EXTERNAL
TORQUE CAPACITY 0.0 FOOT-POUNDS MINIMUM AND 420.0 FOOT-POUNDS MAXIMUM
TORQUE INDICATING MECHANISM DIAL
TORQUE SIGNAL METHOD DIAL INDICATOR
TORQUE SCALE GRADUATION 10.00 FOOT-POUNDS
FURNISHED ITEMS CASE
SPECIAL FEATURES RATCHET HEAD
SPECIFICATION/STANDARD DATA 05047-ASME B107.14M PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
NONDEFINITIVE SPEC/STD DATA 1 TYPE AND B CLASS AND 1 STYLE
