Product Details | BOX WRENCH
5120-00-288-9675 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: AA1341, A-A-1341, GGGW636, GGG-W-636, GGG-W-636 TY18CL1, GGGW636TY18CL1, XH142C, 1808A, 5120-00-288-9675, 00-288-9675, 5120002889675, 002889675
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-288-9675 | 03555 ( WRENCH, BOX ) |

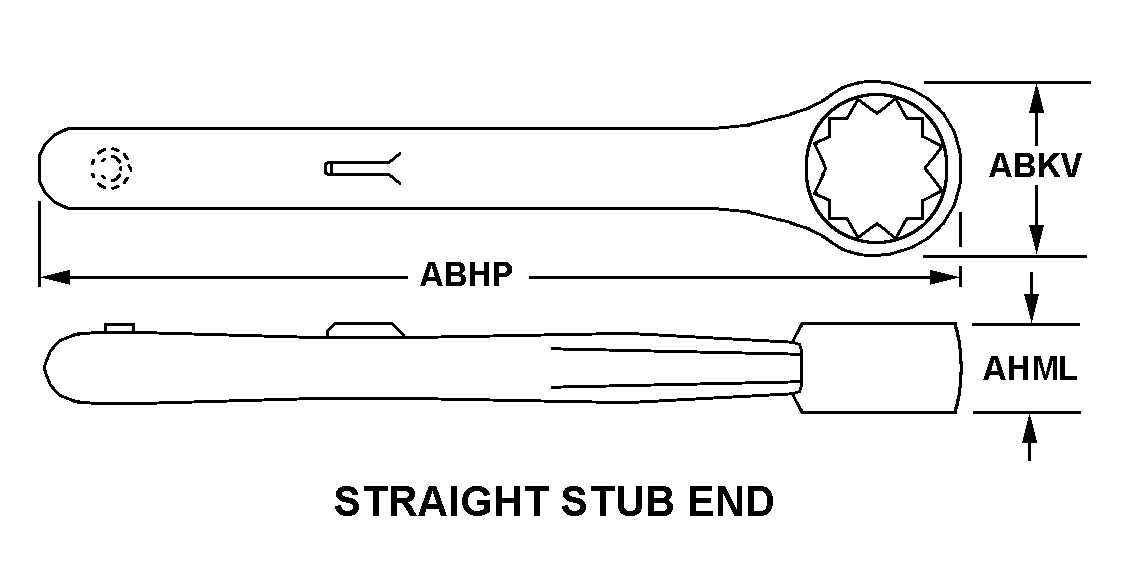

Drawings & Photos | NSN 5120-00-288-9675
Cross Reference | NSN 5120-00-288-9675
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1808A | 05506 | MARTIN SPROCKET AND GEAR INC |
| A-A-1341 | 58536 | FEDERAL COMMERCIAL ITEM DESCRIPTION PROMULGATED BY GENERAL SERVICES |
| GGG-W-636 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-W-636 TY18CL1 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| XH142C | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5120-00-288-9675
Related Products | NSN 5120-00-288-9675
5120-00-288-9676, 5120-00-288-9677, 5120-00-288-9678, 5120-00-288-9679, 5120-00-288-9680
Technical Data | NSN 5120-00-288-9675
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND ENAMEL AND OXIDE AND PHOSPHATE AND ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | TT-E-489 FED SPEC 2ND TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | 15 STRAIGHT STUB END |
| OVERALL LENGTH | 10.000 INCHES MINIMUM |
| OUTSIDE DIAMETER | 2.062 INCHES MAXIMUM |
| HEAD THICKNESS | 0.875 INCHES MAXIMUM |
| WRENCHING SURFACE SIZE | 1.312 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | 12 POINT SINGLE END INTERNAL |
| SPECIAL MARKINGS | WRENCH SIZE |
Restrictions/Controls & Freight Information | NSN 5120-00-288-9675
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-288-9675
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
