NSN 5120-00-293-0847 NNH0081, NN-H-0081, GGGS326
Product Details | SHOVEL HANDLE
5120-00-293-0847 00001015120000000
Part Alternates: NNH0081, NN-H-0081, GGGS326, GGG-S-326, 5120-00-293-0847, 00-293-0847, 5120002930847, 002930847
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-293-0847 | 32221 ( HANDLE, SHOVEL0 ) |

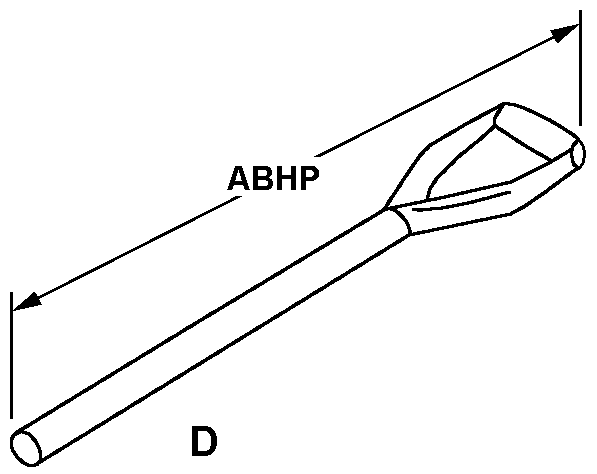

Drawings & Photos | NSN 5120-00-293-0847
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-293-0847
Related Products | NSN 5120-00-293-0847
Technical Data | NSN 5120-00-293-0847
| Characteristic | Specifications |
|---|---|
| MATERIAL | WOOD HANDLE |
| STYLE DESIGNATOR | M52 D |
| OVERALL LENGTH | 27.000 INCHES NOMINAL |
| RATED LIFT | 17.000 INCHES MINIMUM AND 20.000 INCHES MAXIMUM |
| BLADE SHANK TYPE FOR WHICH DESIGNED | SMOOTH BACK |
| NONDEFINITIVE SPEC/STD DATA | SA GRADE AND IV TYPE AND A CLASS AND 2 STYLE OR 3 STYLE OR 4 STYLE |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-S-326 |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | NN-H-0081 |
Restrictions/Controls & Freight Information | NSN 5120-00-293-0847
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095144 | HARDWARE:HANDLES,WOODEN NOI |
| Less than car load rating | ||
| Less than truck load rating | R | 65.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
