NSN 5120-00-389-3478 K9046017PC1, 679874PC1, 00-389-3478
Product Details | OPEN END WRENCH
5120-00-389-3478 A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: K9046017PC1, 679874PC1, 5120-00-389-3478, 00-389-3478, 5120003893478, 003893478
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 00-389-3478 | 17182 ( WRENCH, OPEN END ) |
Drawings & Photos | NSN 5120-00-389-3478
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-389-3478
Technical Data | NSN 5120-00-389-3478
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM AND NICKEL AND OXIDE OVERALL |

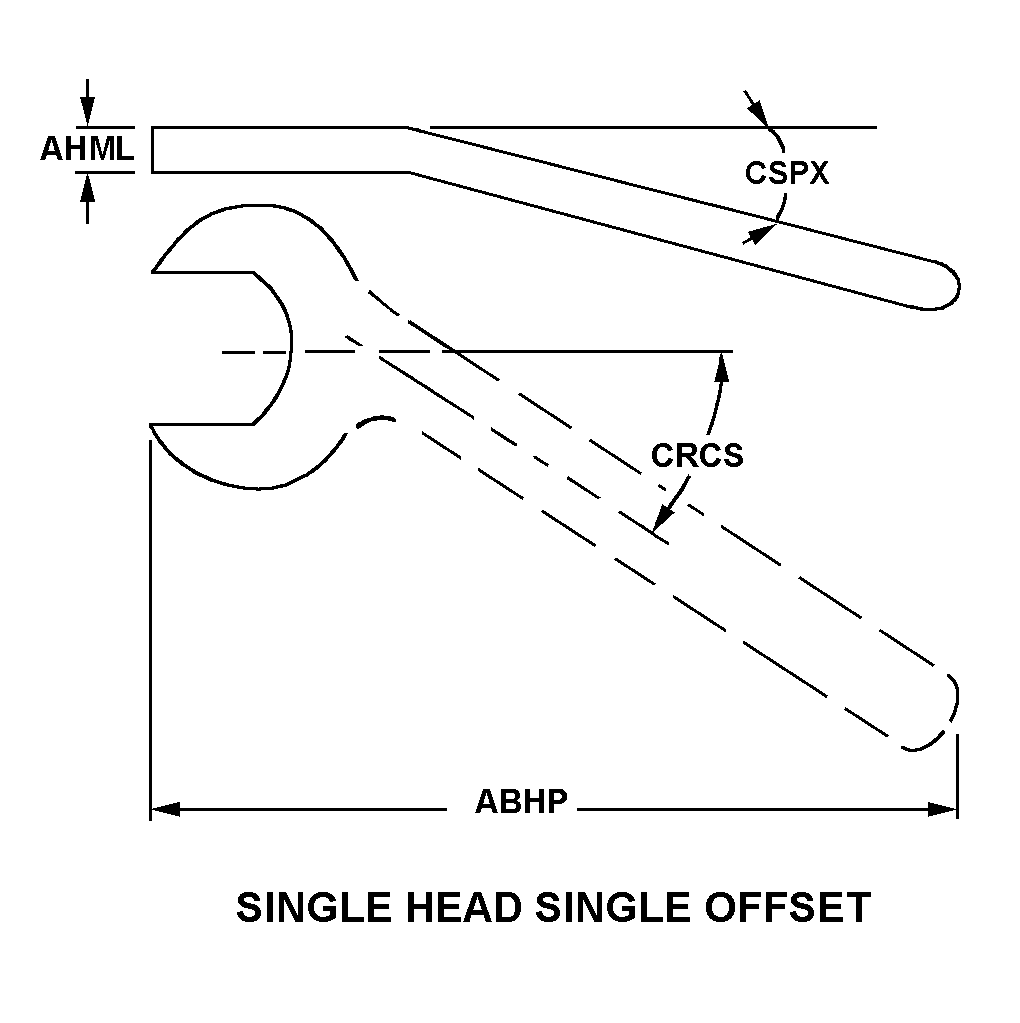

| STYLE DESIGNATOR | 89 SINGLE HEAD SINGLE OFFSET |
| OVERALL LENGTH | 7.000 INCHES NOMINAL |
| HEAD THICKNESS | 0.250 INCHES NOMINAL |
| HEAD ANGLE | 30.0 DEGREES NOMINAL |
| WRENCHING END OFFSET ANGLE | 15.0 DEGREES NOMINAL |
| WRENCHING SURFACE SIZE | 1.000 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | OVAL SINGLE END INTERNAL |
| SPECIAL FEATURES | HEAD MACHINED 1-1/2 IN. O/A ONOUTSIDE SURFACE PARALLEL TO WRENCHING SURFACE |
Restrictions/Controls & Freight Information | NSN 5120-00-389-3478
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
