NSN 5120-00-398-1425 GGGW646, GGG-W-646, GGG-W-646 TY2CL2STBTM161
Product Details | CROWFOOT SOCKET WRENCH HEAD TURNBUCKLE ADAPTER
5120-00-398-1425 A wrench component with one end designed to fit into a HEAD, CROWFOOT SOCKET WRENCH and the other end designed to slide over and partially encircle a round body type TURNBUCKLE. A removable drive pin, extending through the center of the turnbuckle opening at right angles, provides a means of locking the adapter to the TURNBUCKLE for turning to reduce or increase tension.
Part Alternates: GGGW646, GGG-W-646, GGG-W-646 TY2CL2STBTM161, GGGW646TY2CL2STBTM161, GIT6728, GIT-6728, 500TBA, 6728, 5120-00-398-1425, 00-398-1425, 5120003981425, 003981425
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-398-1425 | 21184 ( ADAPTER, TURNBUCKLE, CROWFOOT SOCKET WRENCH HEAD ) |

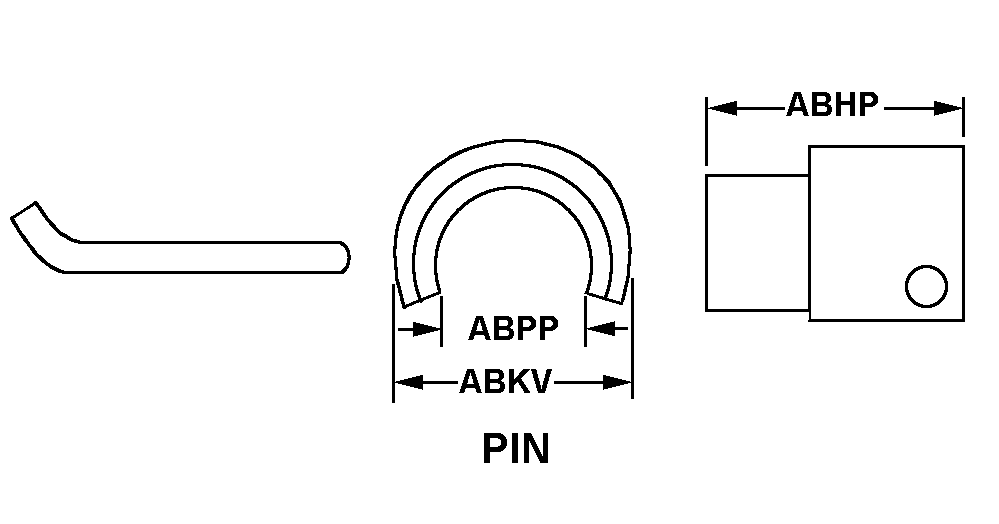

Drawings & Photos | NSN 5120-00-398-1425
Cross Reference | NSN 5120-00-398-1425
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 500TBA | 47805 | INGERSOLL-RAND CO PROTO TOOL DIV |
| 6728 | 63704 | GRANCO INDUSTRIES INC |
| GGG-W-646 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-W-646 TY2CL2STBTM161 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| GIT-6728 | 63704 | GRANCO INDUSTRIES INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-398-1425
Technical Data | NSN 5120-00-398-1425
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM AND NICKEL AND OXIDE OVERALL |
| STYLE DESIGNATOR | 31 PIN |
| OVERALL LENGTH | 0.948 INCHES MINIMUM AND 1.012 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.843 INCHES MINIMUM AND 0.907 INCHES MAXIMUM |
| OPENING WIDTH | 0.531 INCHES MINIMUM AND 0.546 INCHES MAXIMUM |
| WRENCHING SURFACE SIZE | 0.678 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | ROUND SINGLE END INTERNAL |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 2 CLASS AND B STYLE AND 161 ITEM |
Restrictions/Controls & Freight Information | NSN 5120-00-398-1425
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
