NSN 5120-00-402-2371 H464612, H4646-12, 00-402-2371
Product Details | HOT LINE STICK
5120-00-402-2371 A hand tool consisting of a straight, round stick (pole) made of a suitable nonconductive material with a tool fixed to one end. The other end may be plain or have a butt mounting device fixed to it. Various types of attachments (hooks, rings, and bands) may be fixed to the body. It is designed for use in the repair and maintenance of live high voltage aerial lines. Excludes hot line sticks without heads.
Part Alternates: H464612, H4646-12, 5120-00-402-2371, 00-402-2371, 5120004022371, 004022371
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 10 APR 1970 | 00-402-2371 | 17892 ( HOT LINE STICK ) |
Drawings & Photos | NSN 5120-00-402-2371
Cross Reference | NSN 5120-00-402-2371
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| H4646-12 | 0RUR0 | CHANCE AB |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-402-2371
Technical Data | NSN 5120-00-402-2371
| Characteristic | Specifications |
|---|---|
| MATERIAL | FIBERGLASS |

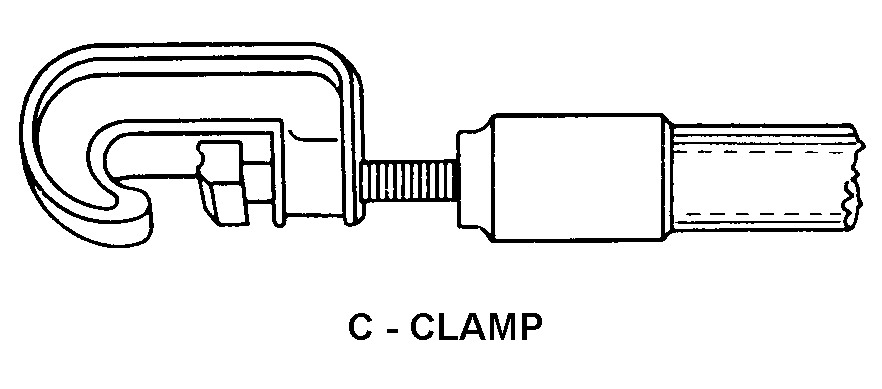

| TOOL HEAD END STYLE | AJ2 C-CLAMP |
| CABLE MAXIMUM DIAMETER ACCOMMODATED | 2.000 INCHES |

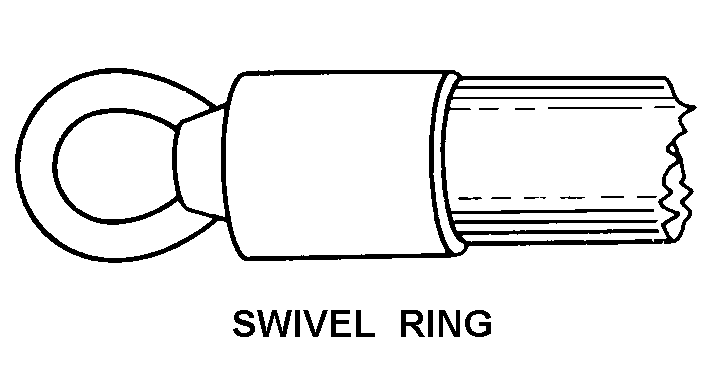

| BUTT END STYLE | AJ7 SWIVEL RING |
| BODY ATTACHMENT | NOT INCLUDED |
| LENGTH | 13.000 FEET NOMINAL |
| DIAMETER | 2.000 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5120-00-402-2371
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | CX | Defense Supply Center Richmond Richmond, VA 23297-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-402-2371
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
