NSN 5120-00-542-3418 5449N, 9018325, 00-542-3418
Product Details | SOCKET WRENCH HANDLE
5120-00-542-3418 An item having a square external end and designed to fit into the internal end of a wrench socket or attachment and to which force is applied to drive the socket. Excludes torque indicating and other torque controlled items. See also WRENCH, RATCHET.
Part Alternates: 5449N, 9018325, 5120-00-542-3418, 00-542-3418, 5120005423418, 005423418
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-542-3418 | 03493 ( HANDLE, SOCKET WRENCH ) |

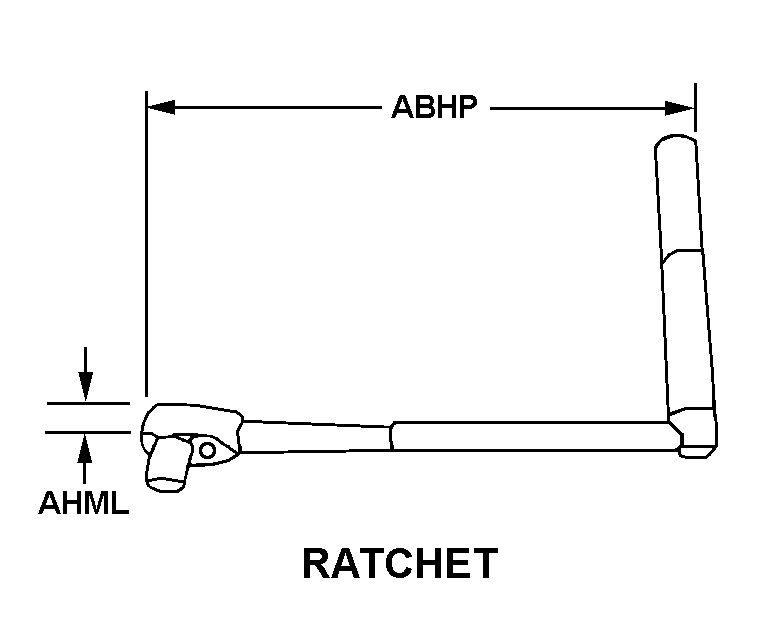

Drawings & Photos | NSN 5120-00-542-3418
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-542-3418
Technical Data | NSN 5120-00-542-3418
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON AND STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM AND NICKEL AND OXIDE OVERALL |
| STYLE DESIGNATOR | 89 RATCHET |
| OVERALL LENGTH | 13.500 INCHES NOMINAL |
| HEAD THICKNESS | 0.312 INCHES NOMINAL |
| DRIVE SURFACE SIZE | 0.500 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END EXTERNAL |
| FEATURES PROVIDED | REVERSIBLE RATCHET |
Restrictions/Controls & Freight Information | NSN 5120-00-542-3418
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
