NSN 5120-00-555-8939 2855763, 00-555-8939, 005558939
Product Details | OPEN END WRENCH
5120-00-555-8939 A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: 2855763, 5120-00-555-8939, 00-555-8939, 5120005558939, 005558939
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 04 NOV 1974 | 00-555-8939 | 17182 ( WRENCH, OPEN END ) |
Drawings & Photos | NSN 5120-00-555-8939
Cross Reference | NSN 5120-00-555-8939
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2855763 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-555-8939
Related Products | NSN 5120-00-555-8939
Technical Data | NSN 5120-00-555-8939
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |

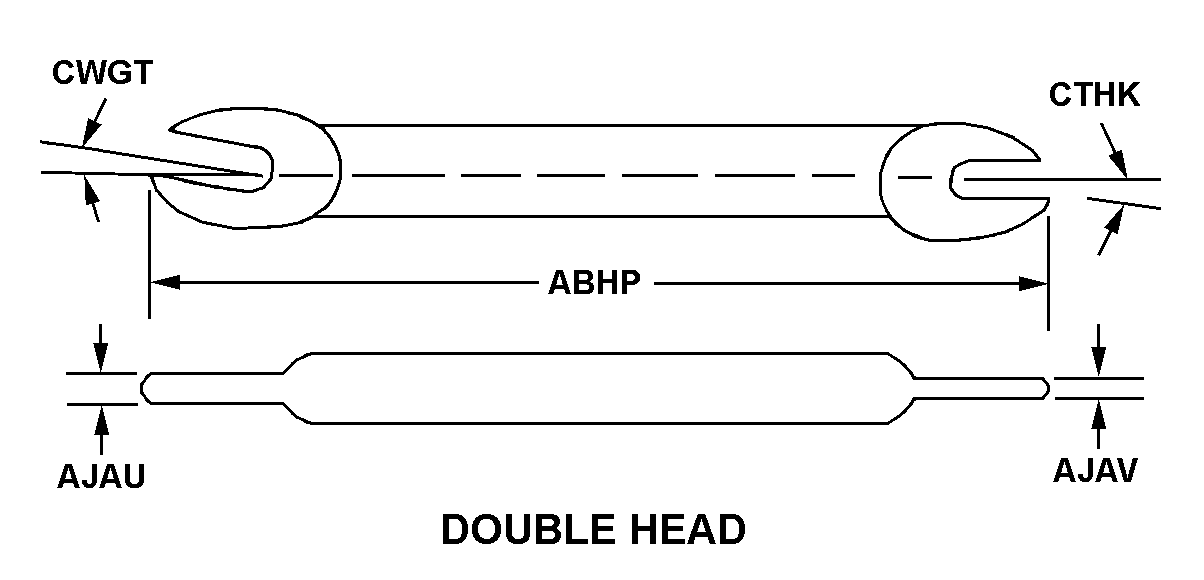

| STYLE DESIGNATOR | 113 DOUBLE HEAD |
| OVERALL LENGTH | 2.750 INCHES NOMINAL |
| LARGE END HEAD THICKNESS | 0.125 INCHES NOMINAL |
| SMALL END HEAD THICKNESS | 0.080 INCHES NOMINAL |
| WRENCHING END OFFSET ANGLE | 15.0 DEGREES NOMINAL |
| SMALL END HEAD ANGLE | 60.0 DEGREES NOMINAL |
| LARGE END HEAD ANGLE | 60.0 DEGREES NOMINAL |
| WRENCHING SURFACE SIZE | 0.281 INCHES NOMINAL FIRST END 0.312 INCHES NOMINAL SECOND END |
| WRENCHING SURFACE SHAPE | RECTANGULAR BOTH ENDS INTERNAL |
| SPECIAL FEATURES | 10 DEG SLANT ON 5/32 END AT 90 DEG ANGLE TO WRENCH HANDLE |
Restrictions/Controls & Freight Information | NSN 5120-00-555-8939
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Y | Protected cargo, other than above, including sensitive cargo requiring hand-to-hand receipt and/or security precautions. |
| Special Handling Code | 5 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-555-8939
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
