NSN 5120-00-585-6239 TR42, 00-585-6239, 005856239
Product Details | SHOCK TYPE WHEEL STUD NUT WRENCH
5120-00-585-6239 A manually operated item designed to remove wheel stud nuts. In operation the inner nut is turned by a socket attached to a shaft on which is a loose swinging weighted handle. The weighted handle may be swung quickly to provide an impact force against the socket to loosen the seized or jammed nuts. The outer nut is held stationary by a separate hexagonal holding wrench.
Part Alternates: TR42, 5120-00-585-6239, 00-585-6239, 5120005856239, 005856239
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-585-6239 | 17750 ( WRENCH, WHEEL STUD NUT, SHOCK TYPE ) |
Drawings & Photos | NSN 5120-00-585-6239
Cross Reference | NSN 5120-00-585-6239
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TR42 | 75204 | SUMMIT TOOL COMPANY DBA KEN-TOOLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-00-585-6239
Related Products | NSN 5120-00-585-6239
Technical Data | NSN 5120-00-585-6239
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | ANY ACCEPTABLE OVERALL |

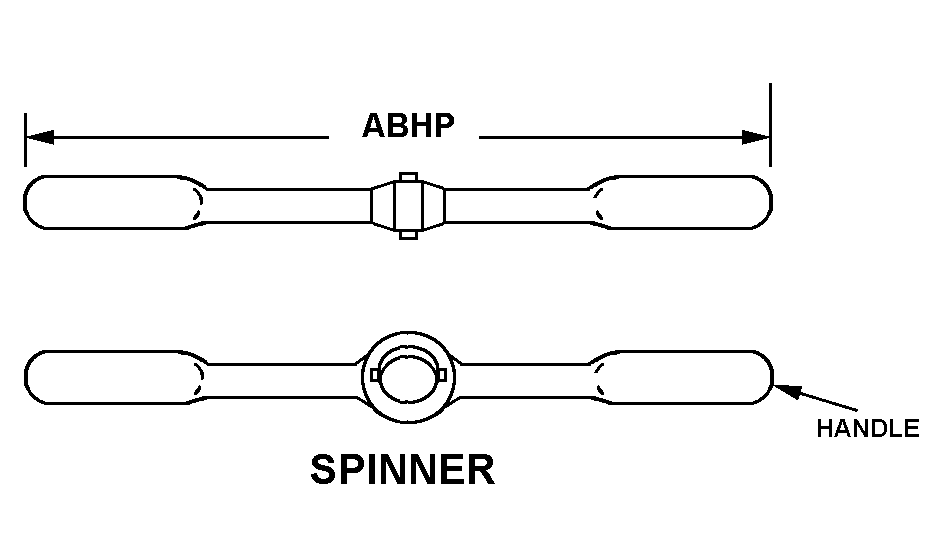

| STYLE DESIGNATOR | 875 SPINNER |
| OVERALL LENGTH | 25.500 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 0.750 INCHES NOMINAL FIRST END 0.812 INCHES NOMINAL SECOND END |
| WRENCHING SURFACE SHAPE | SQUARE FIRST END EXTERNAL SQUARE SECOND END INTERNAL |
| FURNISHED ITEMS | 1.500 IN. HEX SOCKET,1.500 IN. BUDD NUT WRENCH |
Restrictions/Controls & Freight Information | NSN 5120-00-585-6239
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-00-585-6239
Navy
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 2 | Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items. |
| Materiel Management Code | 0 | GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration. |
| Echelon Management Code | 4 | ICP/DSSCs Marine Corps/Defense/Integrated Materiel Manager (IMM) items which have been decontrolled by the inventory managers for local procurement. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SE : Set |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 SE : Set |
