NSN 5120-00-895-9571 GGGW645, GGG-W-645, GGG-W-645 TY1
Product Details | COMBINATION BOX AND OPEN END BOX WRENCH
5120-00-895-9571 A double end wrench, box and open end box, primarily designed for removing or replacing tube fittings. The opening in the open end box may be machined at an angle from the longitudinal center line of the wrench.
Part Alternates: GGGW645, GGG-W-645, GGG-W-645 TY1, GGGW645TY1, 5120-00-895-9566, 5120-00-895-9571, 00-895-9571, 5120008959566, 5120008959571, 008959571
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1962 | 00-895-9571 | 24156 ( WRENCH, BOX AND OPEN END BOX, COMBINATION ) |

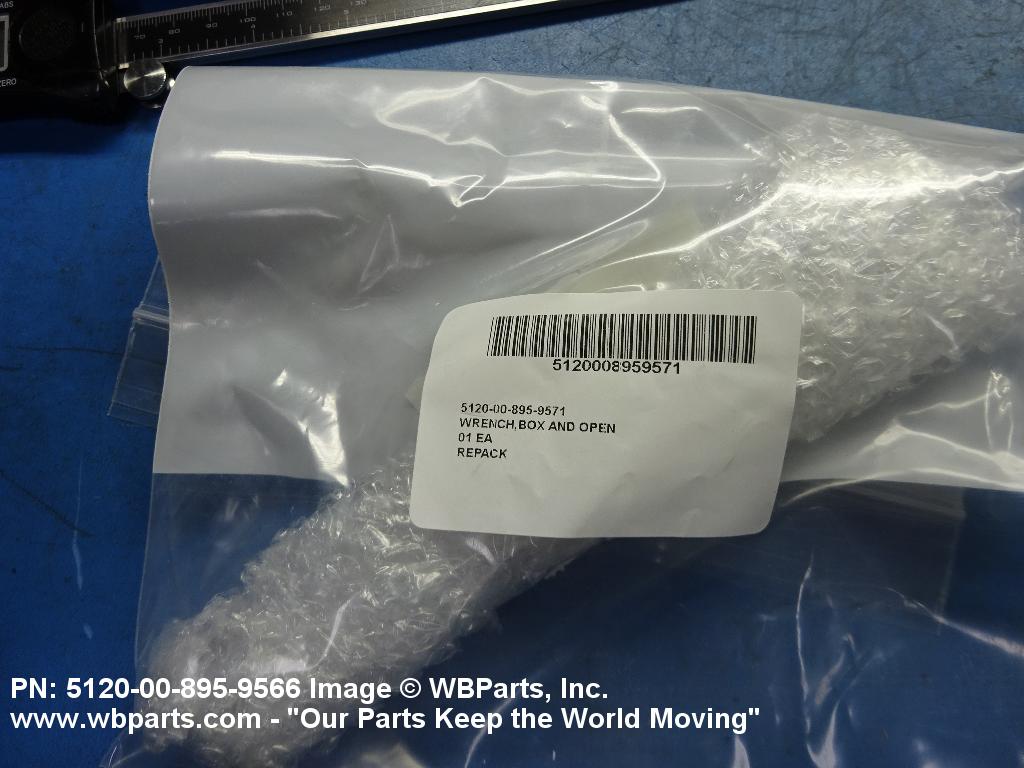

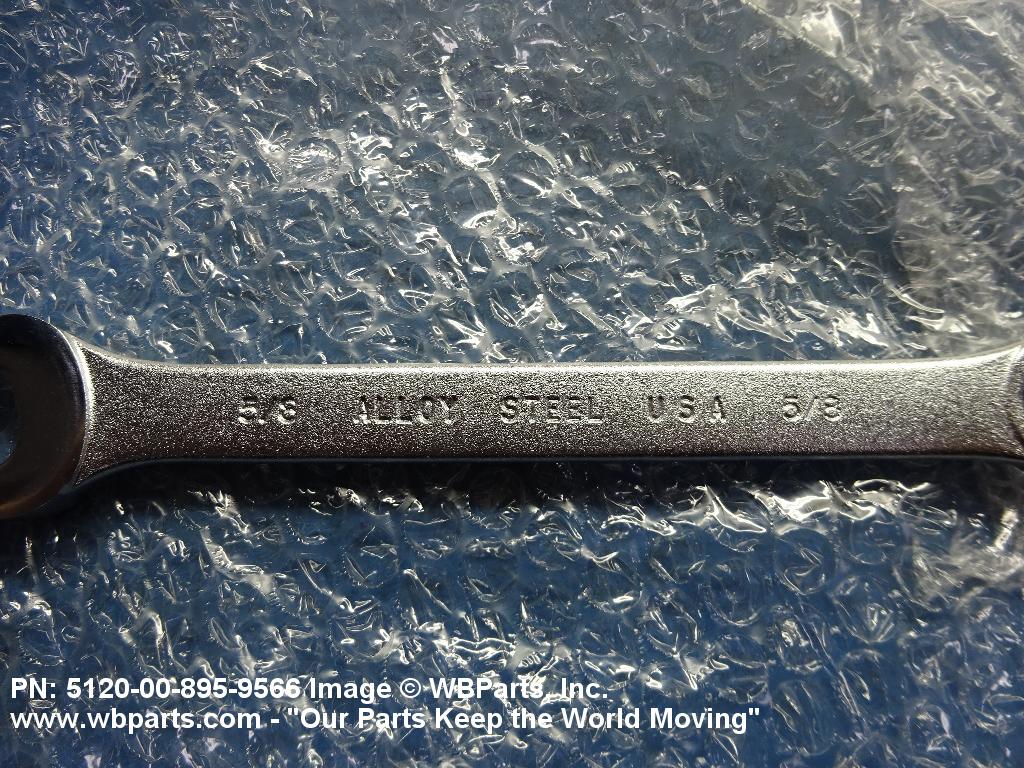

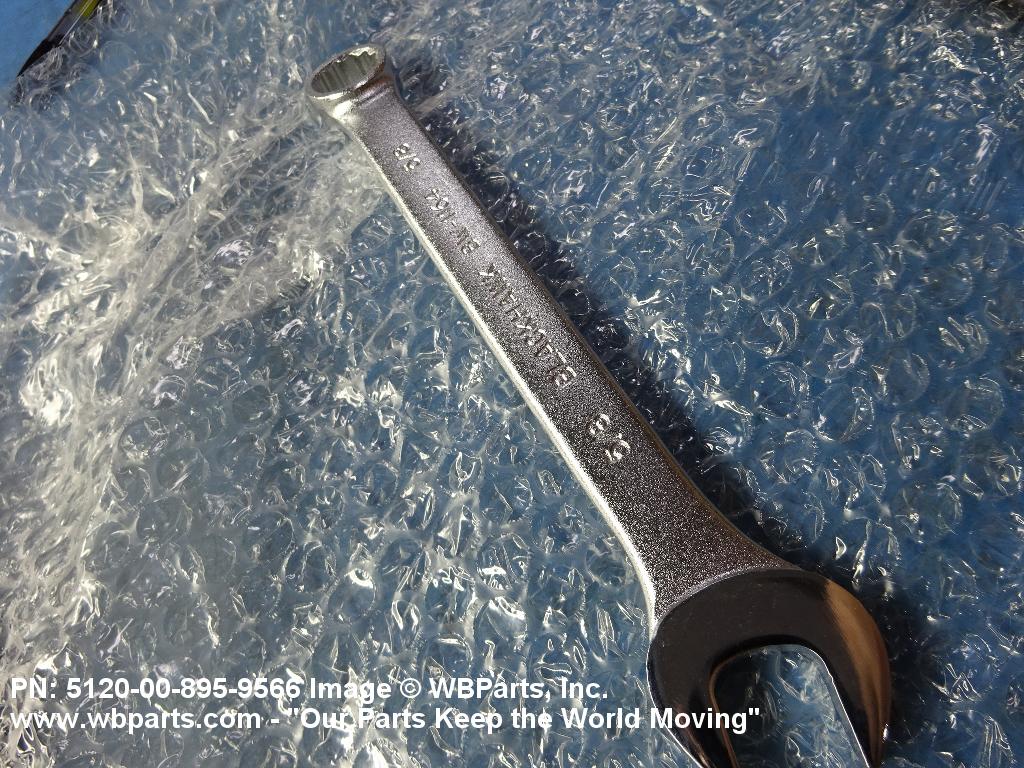

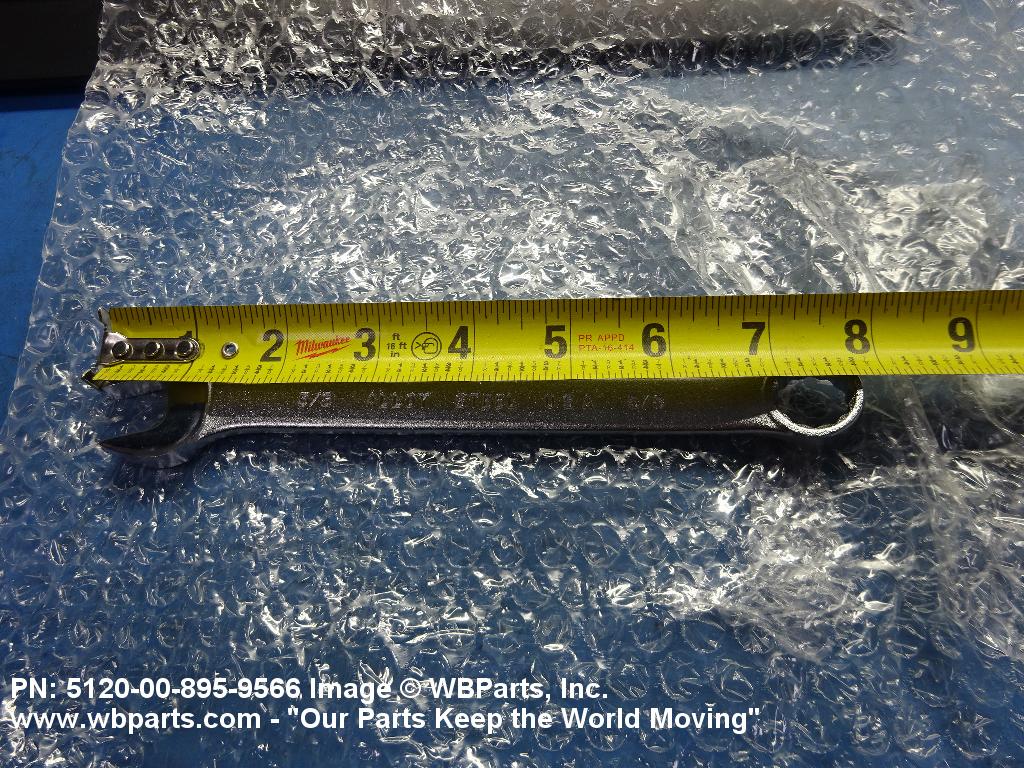

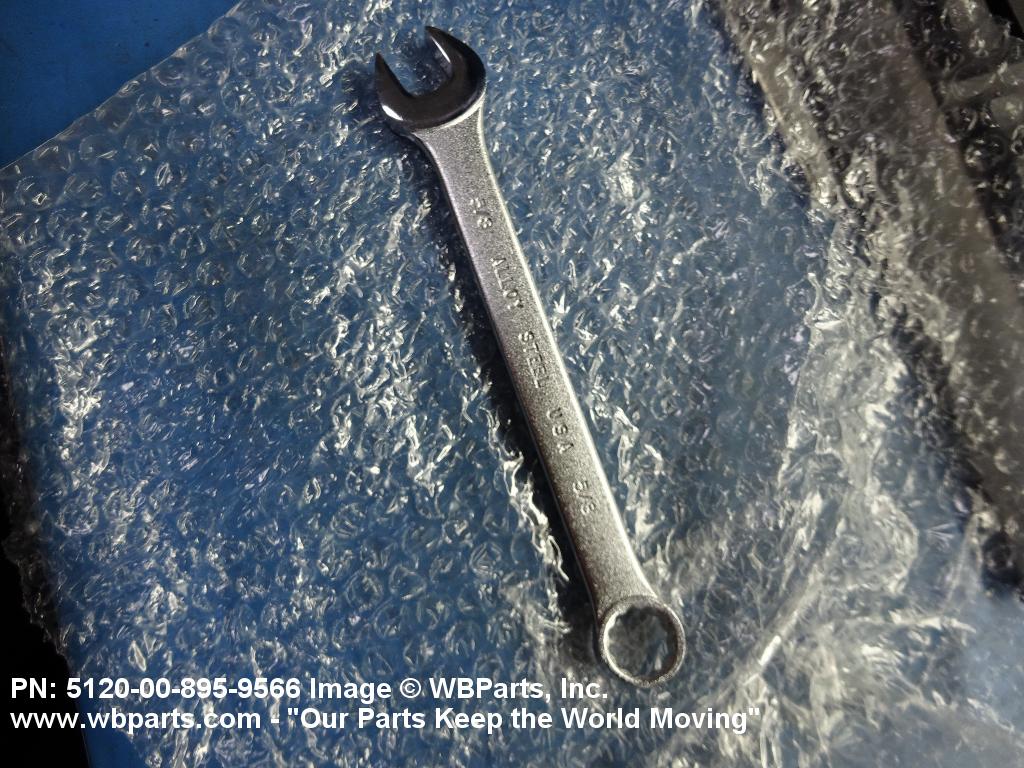

Drawings & Photos | NSN 5120-00-895-9571
Demand History | NSN 5120-00-895-9571
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-00-895-9566 | 2023-02-51 | 2 | us |
| 5120-00-895-9566 | 2021-06-167 | 2 | United States |
| 5120-00-895-9566 | 2021-01-16 | 2 | US |
| 5120-00-895-9566 | 2015-01-20 | 1 | United States |
| 5120-00-895-9566 | 2012-01-29 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-00-895-9571
Technical Data | NSN 5120-00-895-9571
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM AND NICKEL AND OXIDE OVERALL |
| STYLE DESIGNATOR | 68 STRAIGHT |
| OVERALL LENGTH | 7.250 INCHES MINIMUM |
| OPENING WIDTH | 0.406 INCHES MINIMUM |
| LARGE END HEAD THICKNESS | 0.469 INCHES MAXIMUM |
| SMALL END HEAD THICKNESS | 0.469 INCHES MAXIMUM |
| HEAD ANGLE | 20.0 DEGREES MAXIMUM |
| WRENCHING SURFACE SIZE | 0.625 INCHES NOMINAL BOTH ENDS |
| WRENCHING SURFACE SHAPE | 12 POINT BOTH ENDS INTERNAL |
| SPECIAL FEATURES | 7.000 IN. C TO C OF WORKING ENDS |
Restrictions/Controls & Freight Information | NSN 5120-00-895-9571
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
