NSN 5120-01-029-9969 01-029-9969, 010299969, 115648051
Product Details | BOX WRENCH
5120-01-029-9969 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: 5120-01-029-9969, 01-029-9969, 5120010299969, 010299969, 115648051
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 26 OCT 1976 | 01-029-9969 | 03555 ( WRENCH, BOX ) |
Drawings & Photos | NSN 5120-01-029-9969
Cross Reference | NSN 5120-01-029-9969
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 115648051 | 07309 | ROLLS-ROYCE MARINE NORTH AMERICA INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-029-9969
Related Products | NSN 5120-01-029-9969
Technical Data | NSN 5120-01-029-9969
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1018 OVERALL |

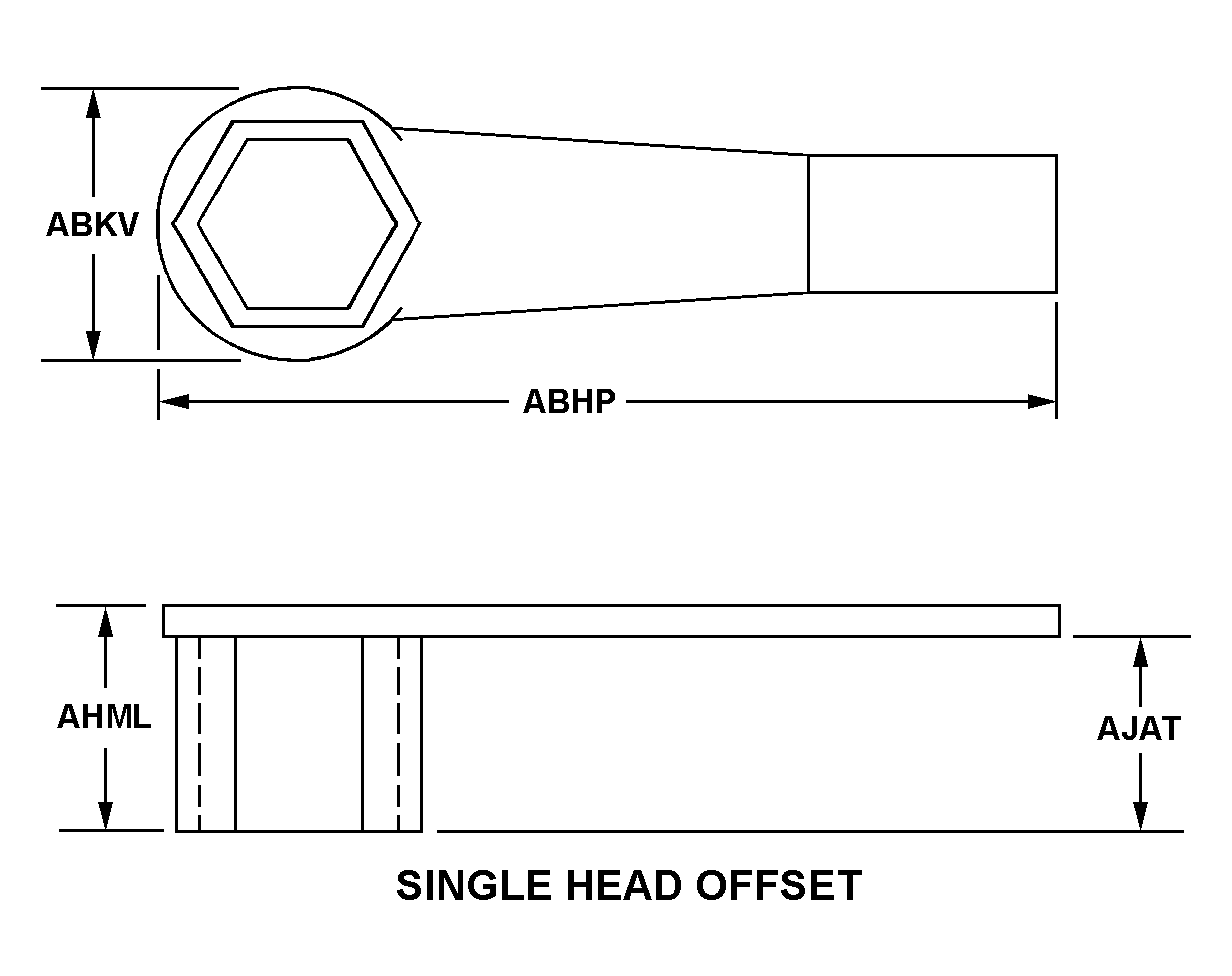

| STYLE DESIGNATOR | 34 SINGLE HEAD OFFSET |
| OVERALL LENGTH | 44.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.938 INCHES NOMINAL |
| HEAD THICKNESS | 3.000 INCHES NOMINAL |
| OFFSET HEIGHT | 2.000 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 3.375 INCHES NOMINAL FIRST END |
| WRENCHING SURFACE SHAPE | HEXAGON FIRST END INTERNAL |
| SPECIAL FEATURES | INCL 0.750 IN. SCREWPIN SHACKLE ASSY IN 0.938 IN. DIA HOLE THRU HANDLE END AND 0.625-11UNC-2A BY 2.500 IN. LG HEX HEAD SCREW FOR ATTACHING DRIVE END THRU 0.688 IN. DIA HOLE |
Restrictions/Controls & Freight Information | NSN 5120-01-029-9969
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | HD | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-029-9969
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
