NSN 5120-01-092-4047 J4381, 10900556, 11681657

Product Details | SPANNER WRENCH


5120-01-092-4047 A tool on which are located one or more pins, lugs, holes, keyways, or hooks, designed to engage matching holes, slots, or projections on a coupling, nut, or the like; for exerting a torsional force, concentrated at a point or points of a mating part, tending to turn the mating part about an axis. The drive end may have a hole for a separate straight bar used as a handle. Excludes WRENCH, BUNG.

Part Alternates: J4381, 10900556, 11681657, 5120-01-092-4047, 01-092-4047, 5120010924047, 010924047

Hand Tools | Hand Tools, Nonedged, Nonpowered

Supply Group (FSG) NSN Assign. NIIN
51 26 MAR 1980 01-092-4047

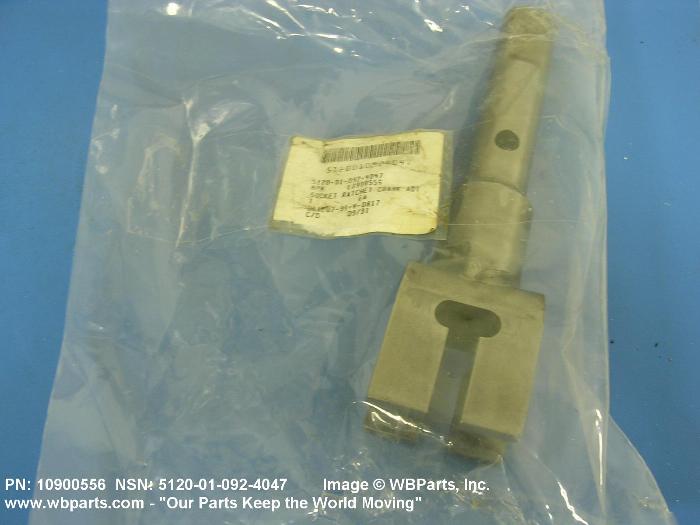

Drawings & Photos | NSN 5120-01-092-4047



Demand History | NSN 5120-01-092-4047


Part Number Request Date QTY Origin
5120-01-092-4047 2008-05-20 1 United States

Cross Reference | NSN 5120-01-092-4047


Part Number Cage Code Manufacturer
10900556 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
11681657 19207 U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
J4381 80837 KYSOR/WESTRAN CORP AUSTIN TRAILER DIV

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5120-01-092-4047


Technical Data | NSN 5120-01-092-4047


Characteristic Specifications
MATERIAL STEEL OVERALL

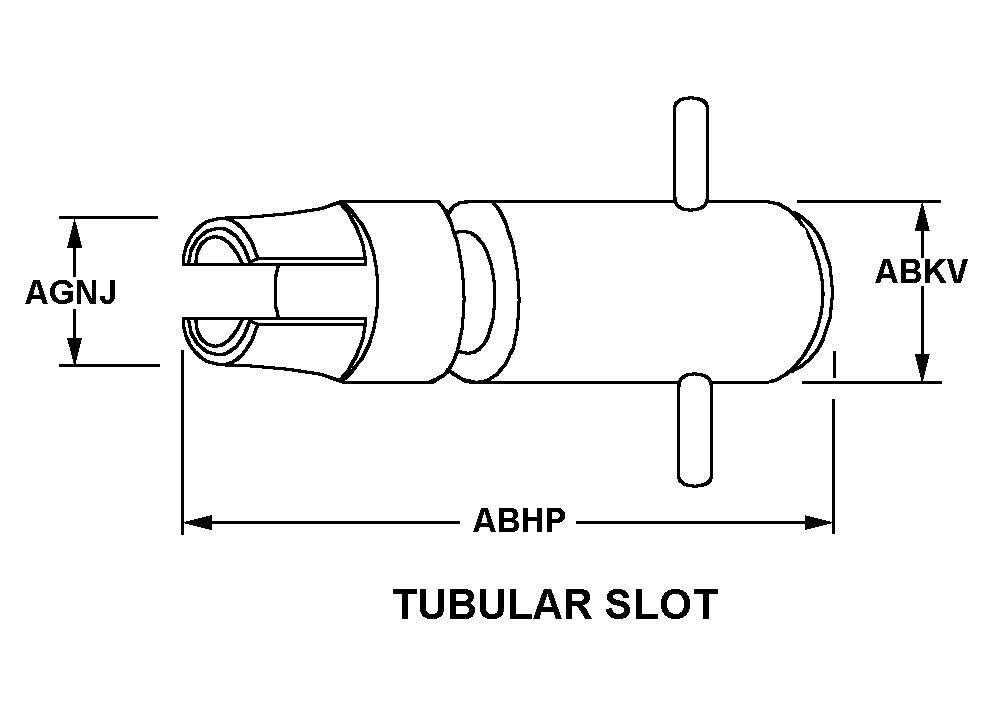

STYLE DESIGNATOR 818 TUBULAR SLOT
OVERALL LENGTH 7.718 INCHES NOMINAL
OUTSIDE DIAMETER 0.990 INCHES MINIMUM AND 1.000 INCHES MAXIMUM
OPENING DIAMETER 1.875 INCHES NOMINAL
III END ITEM IDENTIFICATION 2330-01-050-8810

Restrictions/Controls & Freight Information | NSN 5120-01-092-4047


Category Code Description
Shelf-Life Code:0Nondeteriorative
Hazardous Material Indicator CodeNThere is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:ANon-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:UUNCLASSIFIED
Precious Metals Indicator Code:AItem does not contain precious metal
Criticality Code:X The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Category Code Description
NMF Description 186620 TOOLS, NOI HAND OTHER THAN POWER
Less than car load rating
Less than truck load rating W Rating Variable
Water commodity Code 732 unknown
Originating Activity Code AZ U.S. Army Tank-Automotive and Armaments
Command
Warren, MI 48397-5000
Air Dimension Code A Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity B Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling Z No special handling required.
Special Handling Code 9 unknonwn
HAZMAT
Type of Cargo Z No special type of cargo code applicable

Management | NSN 5120-01-092-4047


Category Code Description
Materiel Category and Inventory ManagerE General Supplies (DLA/GSA Items)
Appropriation and Budget Activity2 Stock Fund Secondary Items
Management Inventory Segment2 NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic CodeP Other Automotive Categories
Weapons Systems/End Item or Homogeneous GroupPLTrailer, Prime, 5 Ton PM Miscellaneous Combat/Tactical Common Hardware/Decals/Data Plates
Accounting Requirements CodeD Durable item. An item of Army property coded with an ARC of "D" in the AMDF. Durable items do not require property book accountability after issue from the stock record account, but do require hand receipt control when issued to the user. Commercial and fabricated items similar to items coded ?D?in the AMDF are considered durable items.
Source of SupplySMSDefense Logistics Agency
Enterprise Business Systems
AgencyDADepartment of the Army
Service OrganizationAU.S. Army
ReparabilityZThis is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice CodesJNOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item CodeUUNCLASSIFIED
Shelf Life Code0Nondeteriorative
Purchasing QTY
UOM
1
EA : Each
