Product Details | HAND HAMMER
5120-01-092-6285 A tool with a striking face on one or both ends of a metallic weighted head fixed crosswise to a handle. It is used to strike and/or drive objects, or beat malleable materials. For items stocked without FACE, HAMMER, INSERTED, see HOLDER, INSERTED HAMMER FACE. Excludes DRIVER, COOPER'S and mechanical hammers. See also MALLET (as modified).
Part Alternates: B173.5 , B1735, BF617, BF617B, GGGH20, GGG-H-20, GGG-H-20 TY3CL3STB, GGGH20TY3CL3STB, 5120-01-092-6285, 01-092-6285, 5120010926285, 010926285
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 30 MAR 1980 | 01-092-6285 | 05970 ( HAMMER, HAND ) |

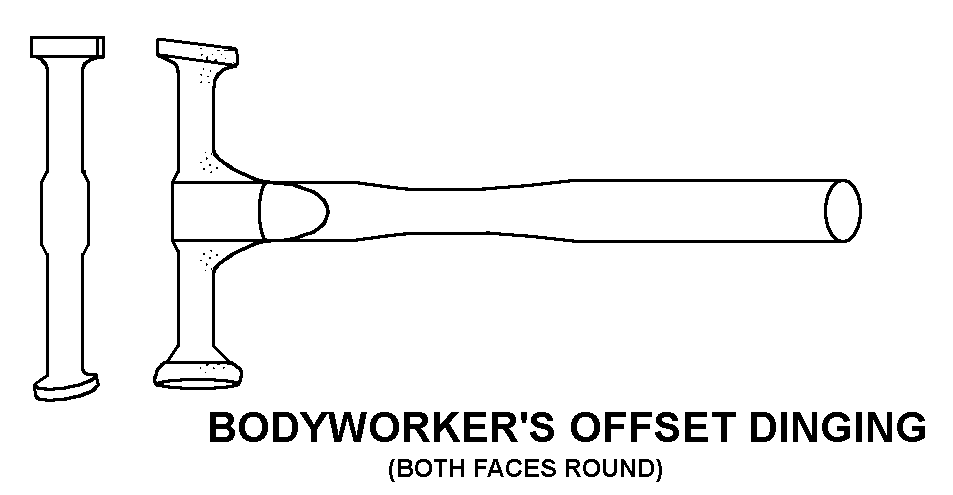

Drawings & Photos | NSN 5120-01-092-6285
Cross Reference | NSN 5120-01-092-6285
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B173.5 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| BF617 | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| BF617B | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| GGG-H-20 | 81348 | FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES |
| GGG-H-20 TY3CL3STB | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5120-01-092-6285
5120-01-092-6592, 5120-01-092-7099, 5120-01-092-7320, 5120-01-092-7321, 5120-01-092-8318
Technical Data | NSN 5120-01-092-6285
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | 40 BODYWORKER'S OFFSET DINGING |
| HEAD WEIGHT | 16.000 OUNCES |
| HANDLE MATERIAL | WOOD |
| HEAD LENGTH | 4.250 INCHES NOMINAL |
| HANDLE LENGTH | 12.000 INCHES NOMINAL |
| SPECIAL FEATURES | HICKORY HANDLE; 1-3/4 IN. DIA ROUND POLISHED FACE; 1-5/8 IN. SQUARE FACE |
| DEPARTURE FROM CITED DESIGNATOR | AS MODIFIED BY SPECIAL FEATURES |
| MANUFACTURERS CODE | 81348 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | GGG-H-20 |
Restrictions/Controls & Freight Information | NSN 5120-01-092-6285
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | JN | Naval Facilities Expeditionary Logistics Center Port Hueneme, CA 93043 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-092-6285
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
