NSN 5120-01-188-9103 4687720-34, 845-4687720 ITEM 34 , 845468772034
Product Details | BOX WRENCH
5120-01-188-9103 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: 4687720-34, 845-4687720 ITEM 34 , 845468772034, 845-4687720-34, 8454687720ITEM34, 5120-01-188-9103, 01-188-9103, 5120011889103, 468772034, 011889103
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 10 SEP 1984 | 01-188-9103 | 03555 ( WRENCH, BOX ) |

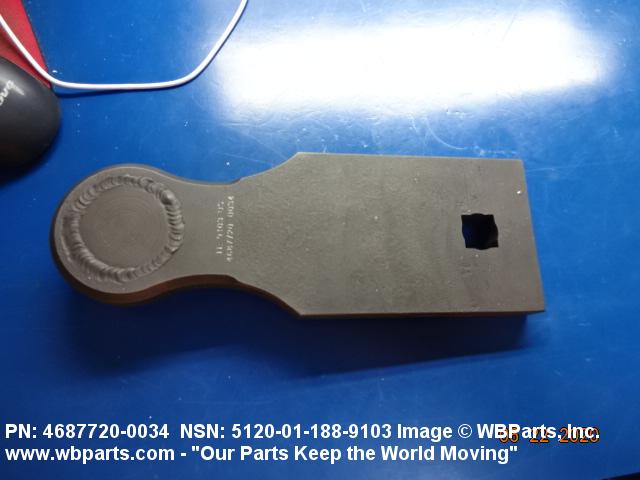

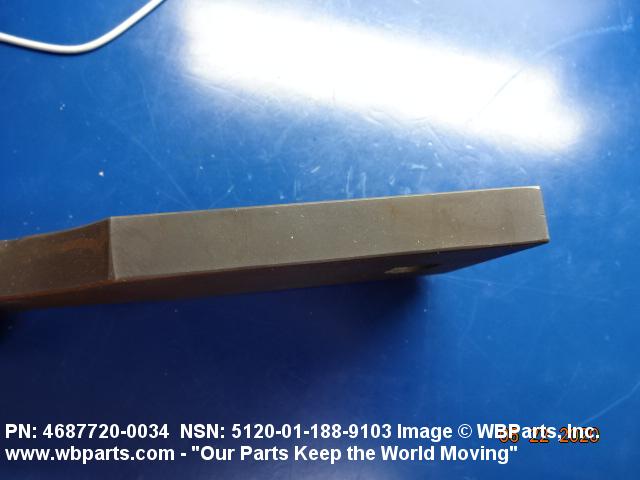

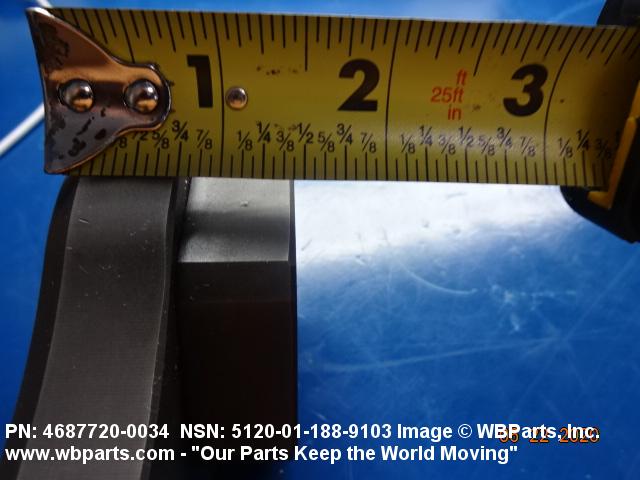

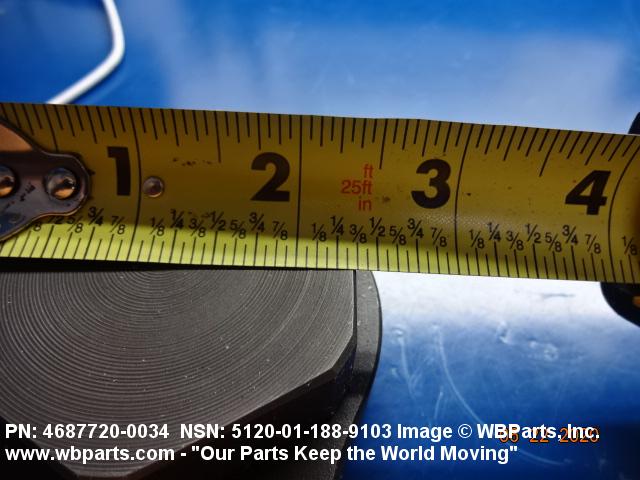

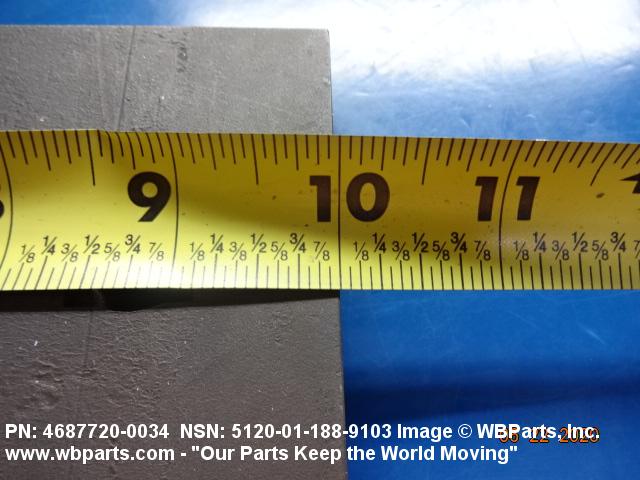

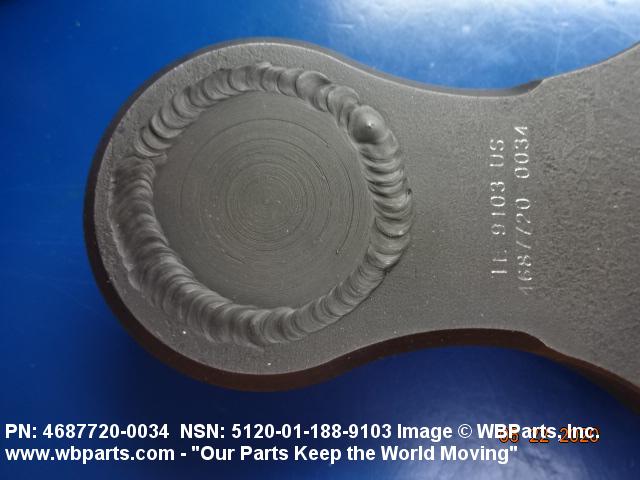

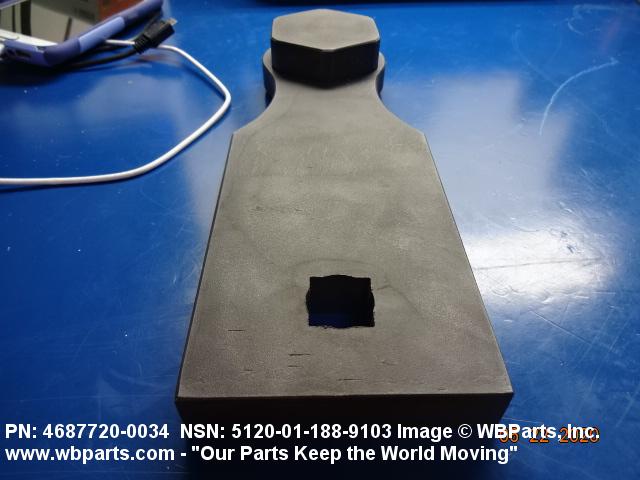

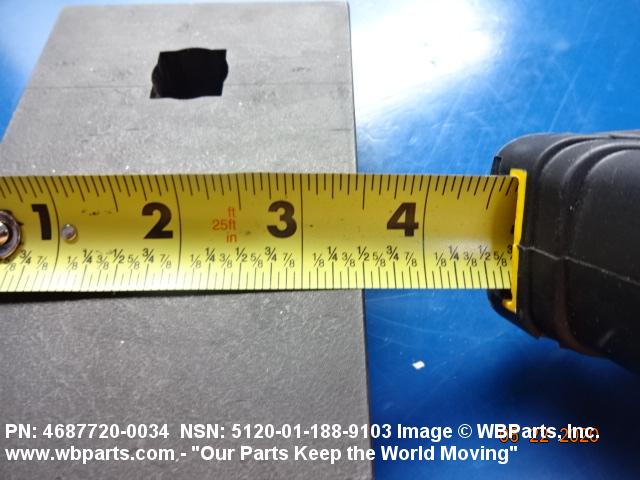

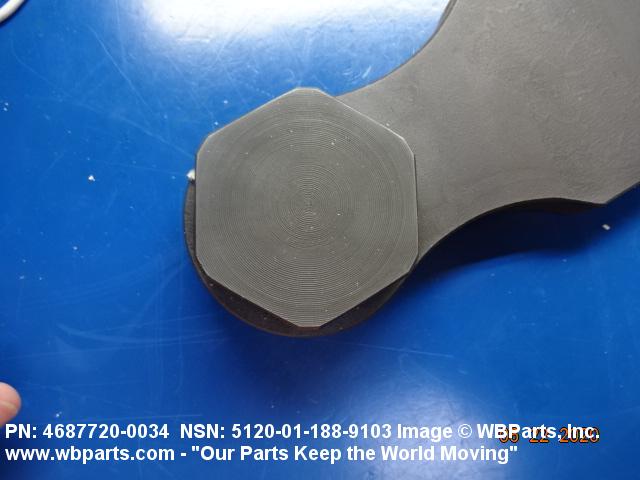

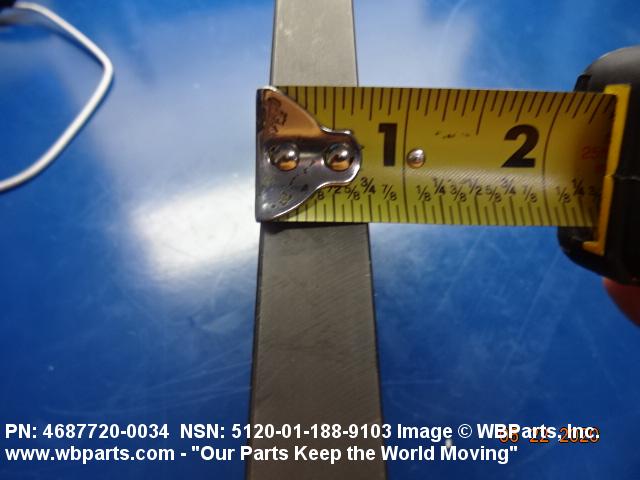

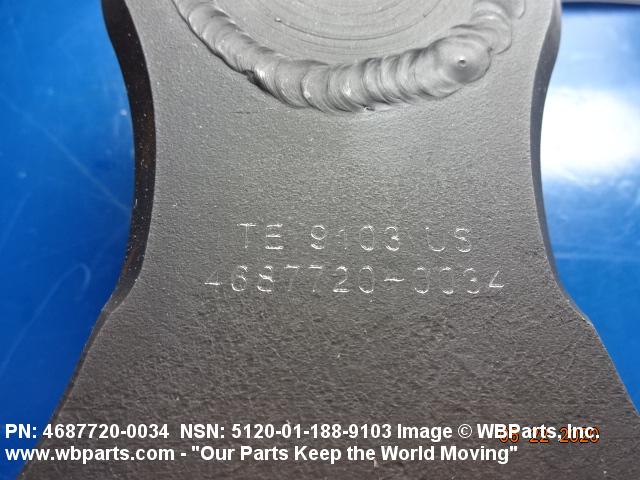

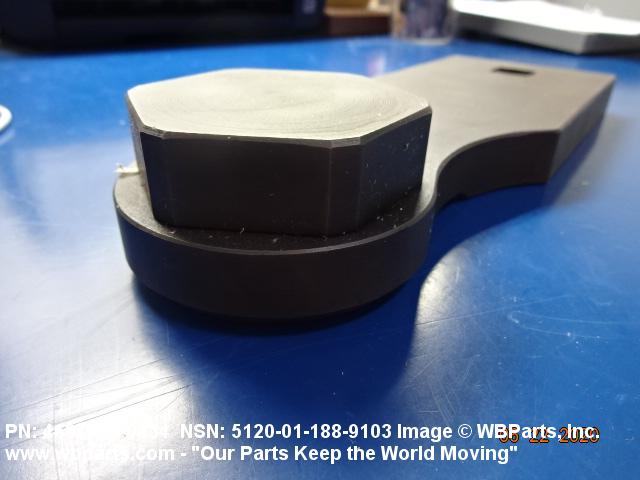

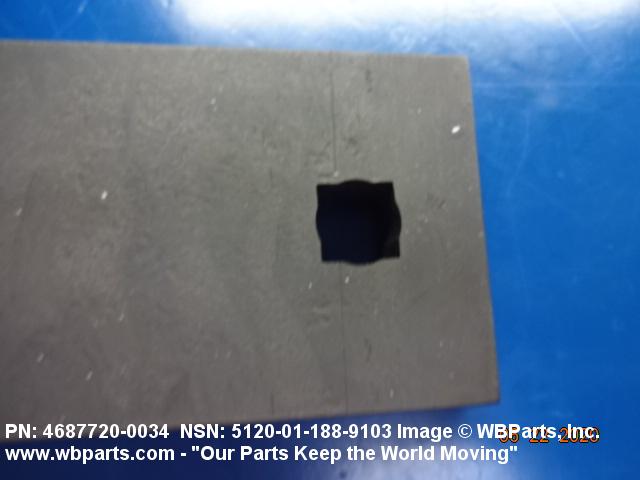

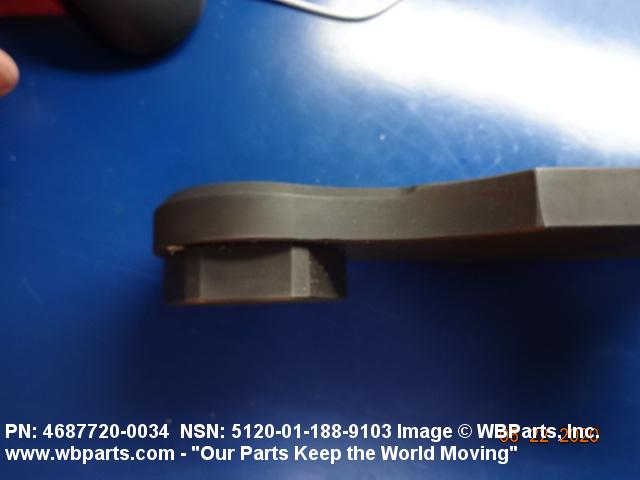

Drawings & Photos | NSN 5120-01-188-9103
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-188-9103
Technical Data | NSN 5120-01-188-9103
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| OVERALL LENGTH | 8.590 INCHES NOMINAL |
| OVERALL WIDTH | 3.500 INCHES NOMINAL |
| HEAD THICKNESS | 1.440 INCHES NOMINAL |
| OFFSET HEIGHT | 1.250 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 2.375 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | HEXAGON SINGLE END INTERNAL |
| DRIVE SURFACE SIZE | 0.750 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |
Restrictions/Controls & Freight Information | NSN 5120-01-188-9103
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-188-9103
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
