NSN 5120-01-218-7380 B4039754, 01-218-7380, 012187380
Product Details | OPEN END WRENCH
5120-01-218-7380 A nonadjustable wrench having an open end wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; WRENCH, LINEMAN'S; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: B4039754, 5120-01-218-7380, 01-218-7380, 5120012187380, 012187380
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01-218-7380 | 17182 ( WRENCH, OPEN END ) |

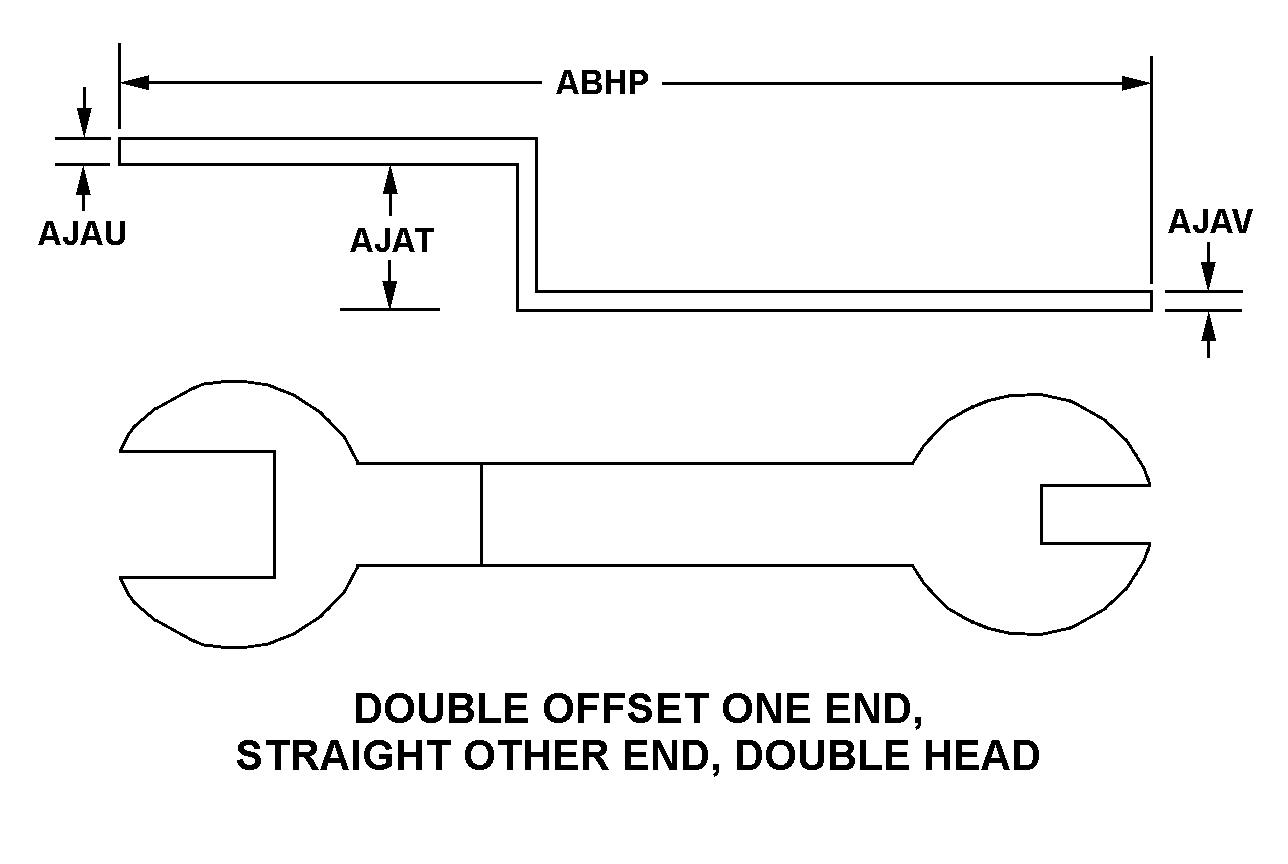

Drawings & Photos | NSN 5120-01-218-7380
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-218-7380
Technical Data | NSN 5120-01-218-7380
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 107 DOUBLE OFFSET ONE END, STRAIGHT OTHER END, DOUBLE HEAD |
| OVERALL LENGTH | 2.900 INCHES NOMINAL |
| OFFSET HEIGHT | 0.400 INCHES NOMINAL |
| LARGE END HEAD THICKNESS | 0.075 INCHES NOMINAL |
| SMALL END HEAD THICKNESS | 0.075 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 0.226 INCHES NOMINAL BOTH ENDS |
| WRENCHING SURFACE SHAPE | OVAL BOTH ENDS INTERNAL |
| HARDNESS RATING | 40.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5120-01-218-7380
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
