NSN 5120-01-334-3219 SBX1012, 01-334-3219, 013343219
Product Details | BOX WRENCH
5120-01-334-3219 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: SBX1012, 5120-01-334-3219, 01-334-3219, 5120013343219, 013343219
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 19 FEB 1991 | 01-334-3219 | 03555 ( WRENCH, BOX ) |

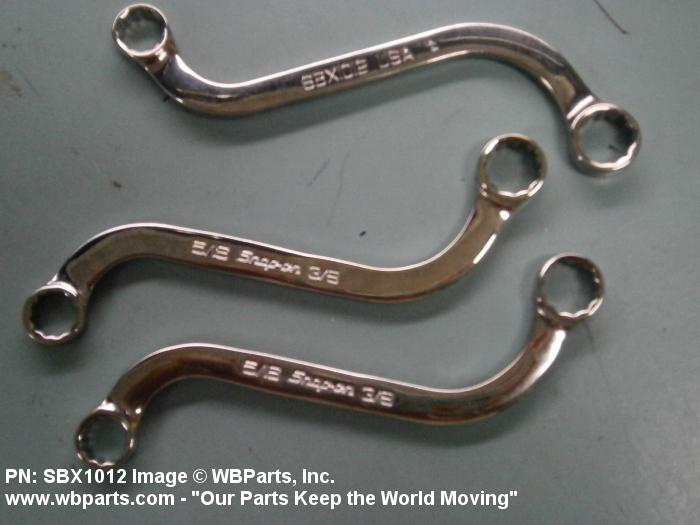

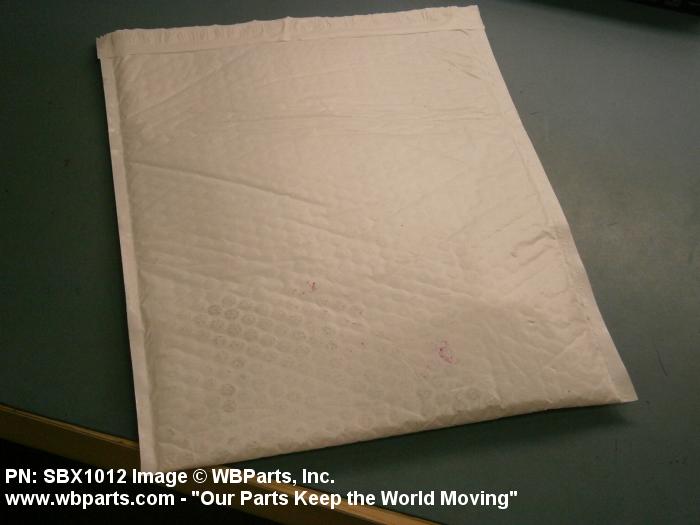

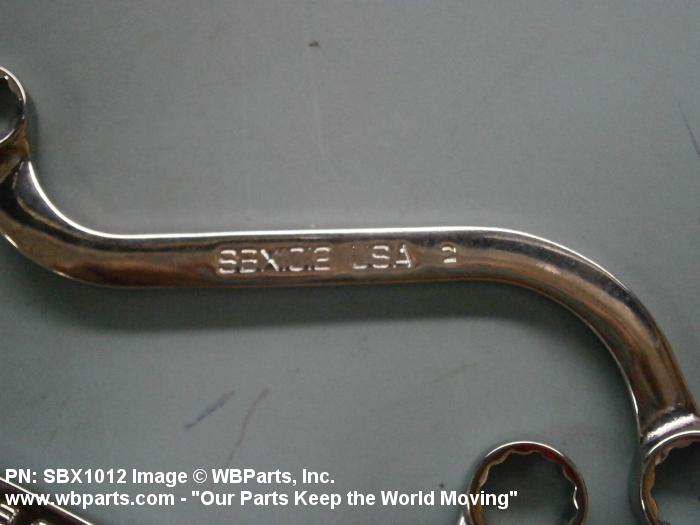

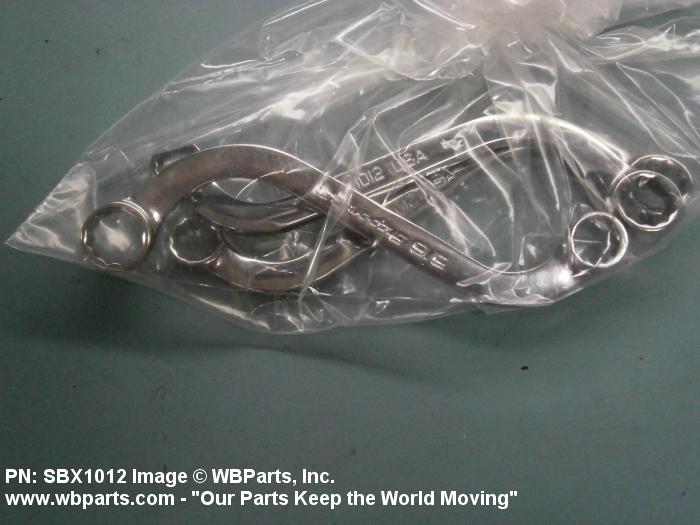

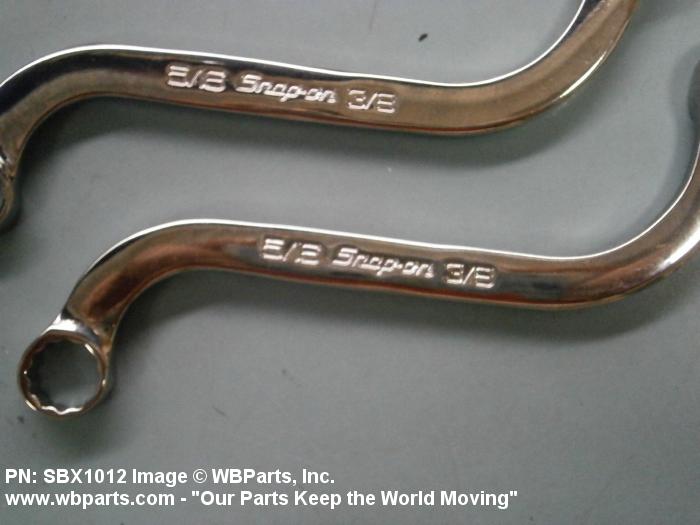

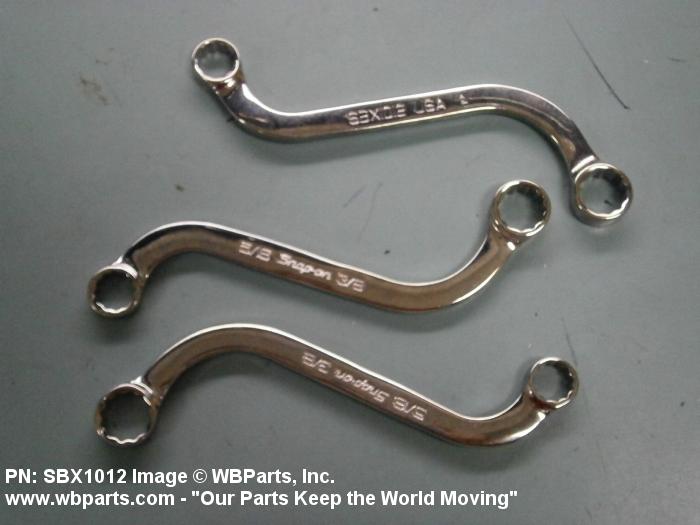

Drawings & Photos | NSN 5120-01-334-3219
Demand History | NSN 5120-01-334-3219
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-334-3219 | 2013-06-178 | 1 | Thailand |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-334-3219
Technical Data | NSN 5120-01-334-3219
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | 51 S-SHAPED DOUBLE HEAD |
| OVERALL LENGTH | 3.750 INCHES NOMINAL |
| LARGE END OUTSIDE DIAMETER | 0.562 INCHES NOMINAL |
| SMALL END OUTSIDE DIAMETER | 0.469 INCHES NOMINAL |
| LARGE END HEAD THICKNESS | 0.219 INCHES NOMINAL |
| SMALL END HEAD THICKNESS | 0.188 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 0.312 INCHES NOMINAL FIRST END 0.375 INCHES NOMINAL SECOND END |
| WRENCHING SURFACE SHAPE | 12 POINT BOTH ENDS INTERNAL |
Restrictions/Controls & Freight Information | NSN 5120-01-334-3219
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
