NSN 5120-01-355-1736 B107.14, B107.14 TY2CLAST2DEA, B107.14M
Product Details | TORQUE WRENCH
5120-01-355-1736 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.2025120000065200043Dental Instruments, Equipment, and Supplies
Part Alternates: B107.14, B107.14 TY2CLAST2DEA, B107.14M, B107.14M TY2CLAST2DEA, B10714, B10714M, B10714MTY2CLAST2DEA, B10714TY2CLAST2DEA, QC2R100, QD2R100, QJR2100, QJR2100B, QJR2100E, 12901100, 5120-01-355-1736, 01-355-1736, 5120013551736, 013551736
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 12 MAR 1992 | 01-355-1736 | 17611 ( WRENCH, TORQUE ) |

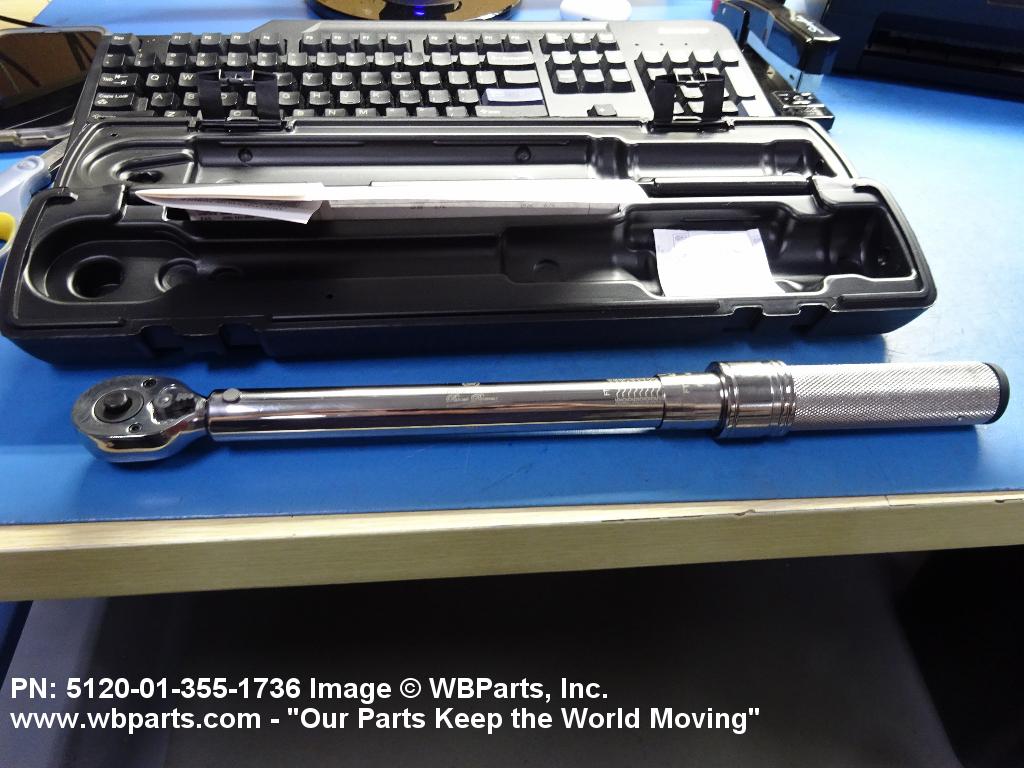

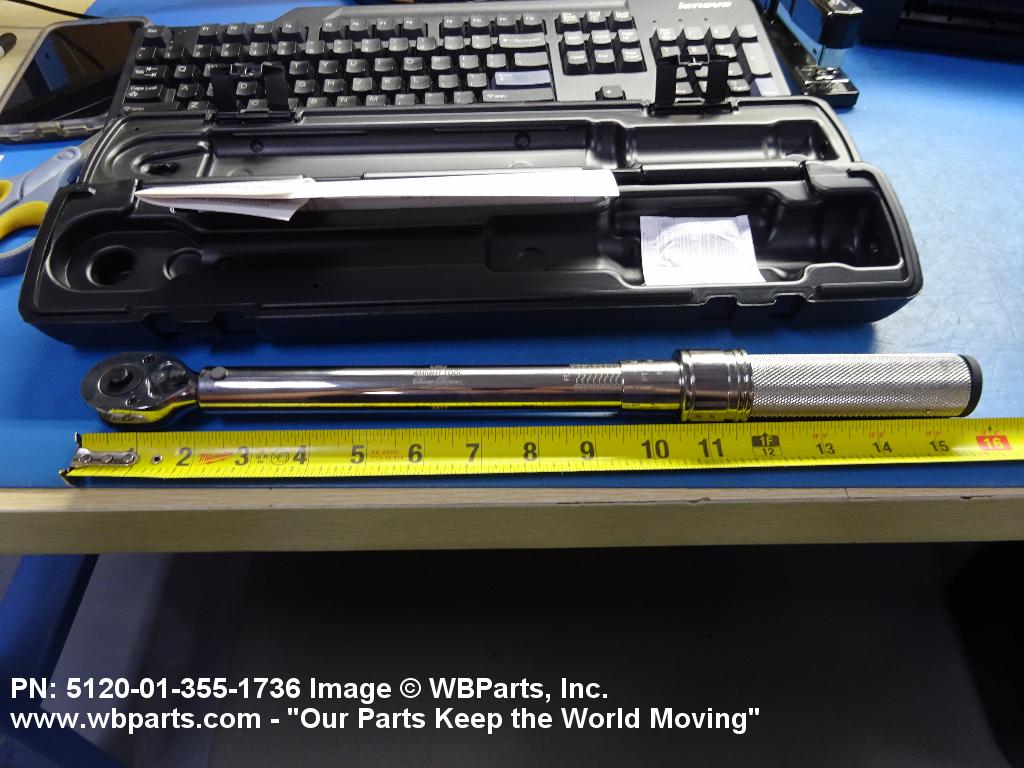

Drawings & Photos | NSN 5120-01-355-1736
Demand History | NSN 5120-01-355-1736
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B10714 | 2025-10-298 | 1 | IN |
| 5120-01-355-1736 | 2025-08-233 | 1 | United States |
| 5120-01-355-1736 | 2025-07-205 | 1 | United States |
| B10714 | 2024-03-74 | 1 | United States |
| 5120-01-355-1736 | 2022-05-125 | 1 | United States |
| B107.14M TY2CLAST2DEA | 2019-04-114 | 1 | France |
| QD2R100 | 2016-04-105 | 1 | Taiwan |
| QD2R100 | 2015-05-149 | 2 | US |
| B10714M | 2014-03-63 | 2 | Taiwan |
| QD2R100 | 2011-08-224 | 2 | PH |
| B10714M | 2011-07-185 | 7 | Pakistan |
| 5120-01-355-1736 | 2009-03-63 | 1 | US |
Cross Reference | NSN 5120-01-355-1736
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12901100 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
| AS28431 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS28431 TY1CL2 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.14 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.14 TY2CLAST2DEA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.14M | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.14M TY2CLAST2DEA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.300 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| KTC S0989 | 00NS2 | KIPPER TOOL COMPANY |
| QC2R100 | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| QD2R100 | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| QJR2100 | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| QJR2100B | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| QJR2100E | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| QJR2100E | K5773 | SNAP ON UK HOLDINGS LTD T/A SNAP ON TOOLS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5120-01-355-1736
Related Products | NSN 5120-01-355-1736
Technical Data | NSN 5120-01-355-1736
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | 858 MICROMETER END DRIVE |
| OVERALL LENGTH | 14.750 INCHES NOMINAL |
| DRIVE SURFACE SIZE | 0.375 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END EXTERNAL |
| TORQUE CAPACITY | 15.0 FOOT-POUNDS MINIMUM AND 100.0 FOOT-POUNDS MAXIMUM |
| TORQUE INDICATING MECHANISM | MICROMETER |
| TORQUE SIGNAL METHOD | AUDIBLE |
| TORQUE SCALE GRADUATION | 0.50 FOOT-POUNDS |
| FURNISHED ITEMS | CASE |
| SPECIAL FEATURES | RATCHET HEAD; PLAIN STEEL HANDLE |
| III SUPPLEMENTARY FEATURES | INDUSTRIAL QUALITY (IQ) TOOLS PROGRAM ITEM |
Restrictions/Controls & Freight Information | NSN 5120-01-355-1736
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-355-1736
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | 0 | GSA MaterielItems cataloged by the Marine Corps and managed by the General Services Administration. |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Operational Test Code | 3 | All items requiring calibration. Items may be technical or non-technical in nature, (i.e., electronic test equipment, meters, gauges, torque wrenches, etc.) All OTC 3 items require established calibration procedures.BLANK |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
