NSN 5120-01-367-9746 266325 PC7 , 266325PC7, 266325PIECE7
Product Details | COMBINATION OPEN END AND SPANNER WRENCH
5120-01-367-9746 A tool having open end wrench characteristics at one end and spanner wrench features such as fixed hook(s), pin(s), hole(s), keyway(s), or lug(s) at the other end.
Part Alternates: 266325 PC7 , 266325PC7, 266325PIECE7, 266325-PIECE-7, 4961512X8IT7, 49615-12X8-IT-7, 5120-01-367-9746, 01-367-9746, 5120013679746, 013679746
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 23 NOV 1992 | 01-367-9746 | 21152 ( WRENCH, OPEN END AND SPANNER, COMBINATION ) |
Drawings & Photos | NSN 5120-01-367-9746
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-367-9746
Technical Data | NSN 5120-01-367-9746
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

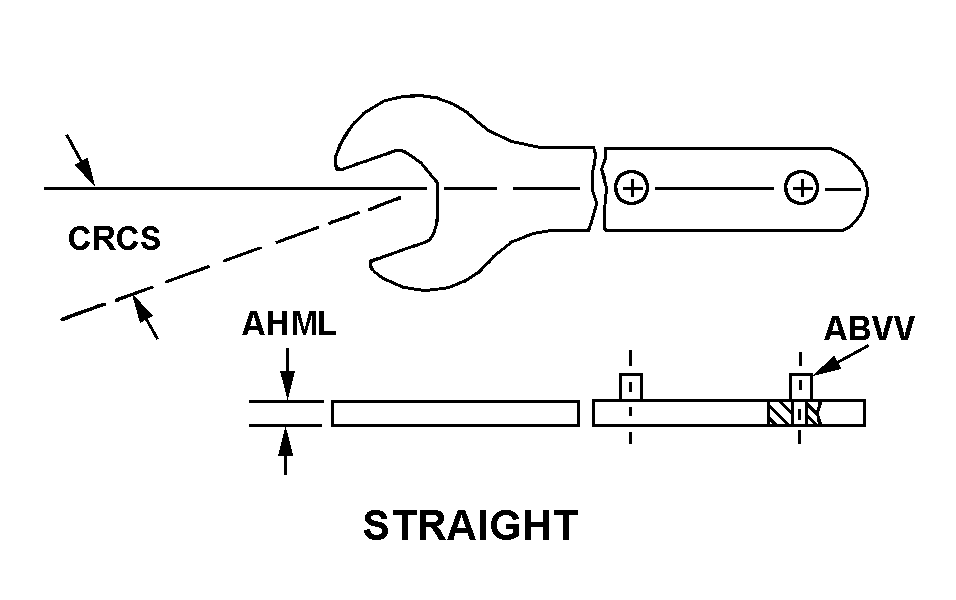

| STYLE DESIGNATOR | 121 STRAIGHT |
| PIN DIAMETER | 0.312 INCHES NOMINAL |
| HEAD THICKNESS | 0.375 INCHES NOMINAL |
| WRENCHING SURFACE SIZE | 1.257 INCHES MINIMUM AND 1.267 INCHES MAXIMUM SINGLE END |
| WRENCHING SURFACE SHAPE | OVAL SINGLE END INTERNAL |
| SPECIAL FEATURES | OVERALL LG. 9-3/4 INS. |
Restrictions/Controls & Freight Information | NSN 5120-01-367-9746
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-367-9746
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
