NSN 5120-01-374-4139 9082392, 01-374-4139, 013744139
Product Details | TORQUE WRENCH ADAPTER
5120-01-374-4139 An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit.2025120000065200043Dental Instruments, Equipment, and Supplies
Part Alternates: 9082392, 5120-01-374-4139, 01-374-4139, 5120013744139, 013744139
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 22 APR 1993 | 01-374-4139 | 60023 ( ADAPTER, TORQUE WRENCH ) |

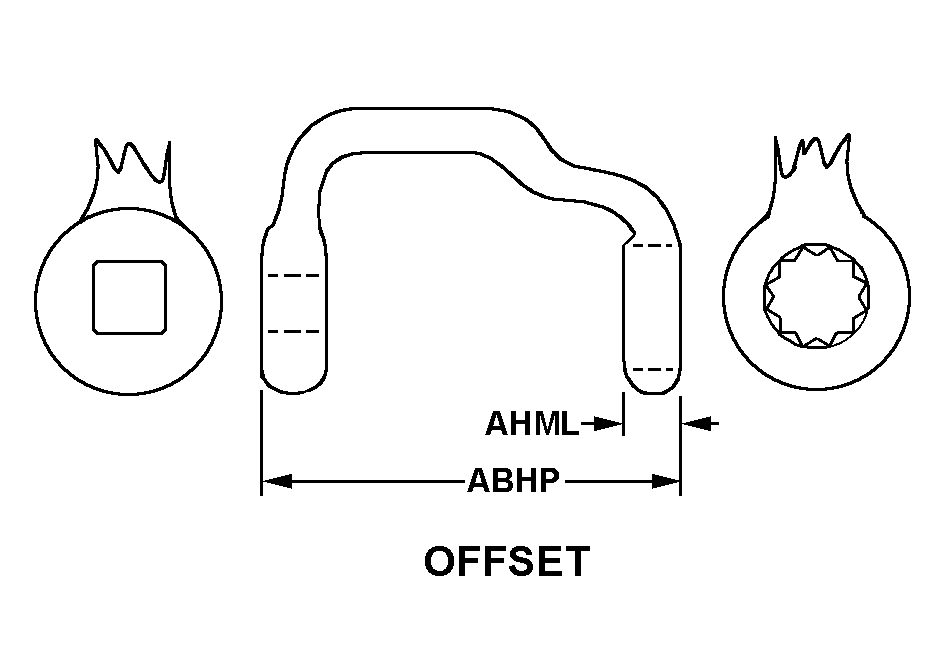

Drawings & Photos | NSN 5120-01-374-4139
Cross Reference | NSN 5120-01-374-4139
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9082392 | 72915 | GENERAL MOTORS CORP ELECTRO-MOTIVE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-374-4139
Technical Data | NSN 5120-01-374-4139
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| STYLE DESIGNATOR | 29 OFFSET |
| WRENCHING SURFACE SIZE | 1.062 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | 18 POINT SINGLE END INTERNAL |
| DRIVE END SHAPE | SQUARE SINGLE END INTERNAL |
| SPECIAL FEATURES | RIGHT HAND; USED W/O REMOVING ROCKER ARM ASSEMBLY |
Restrictions/Controls & Freight Information | NSN 5120-01-374-4139
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5120-01-374-4139
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
