Product Details | TORQUE WRENCH
5120-01-477-9530 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.2025120000065200043Dental Instruments, Equipment, and Supplies
Part Alternates: AS28431 , AS28431 TY1CL2 , AS28431TY1CL2, B107.14, B107.14 TY2CLAST2DEA, B107.14M, B107.14M TY2CLAST2DEA, B107.300 , B10714, B10714M, B10714MTY2CLAST2DEA, B10714TY2CLAST2DEA, B107300, D8128, QC1R50, QD1R50, 370050 , 501MRMH, 5120-01-477-9530, 01-477-9530, 5120014779530, 014779530
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 24 AUG 2000 | 01-477-9530 | 17611 ( WRENCH, TORQUE ) |

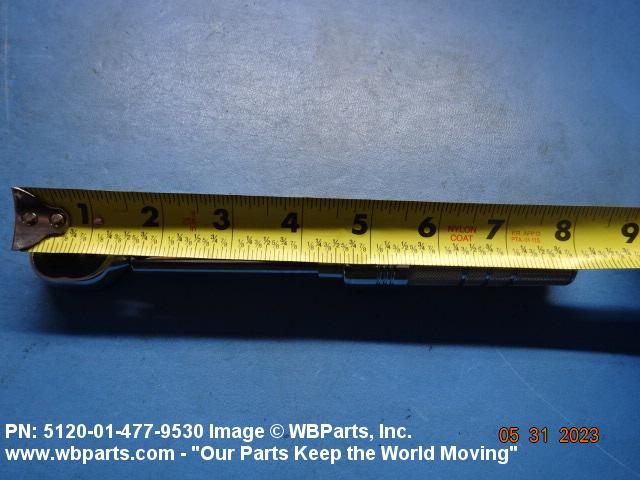

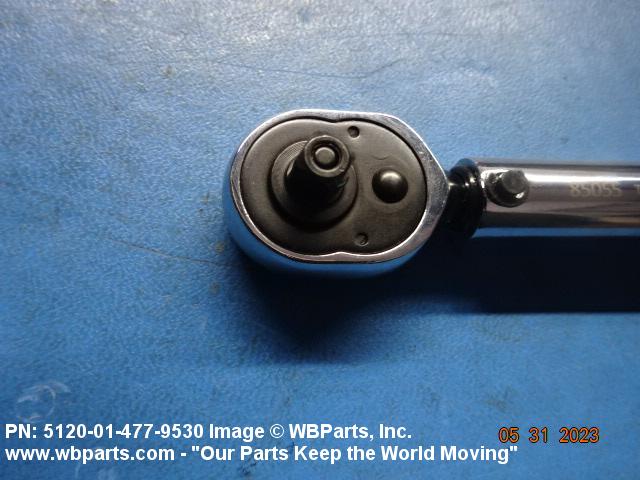

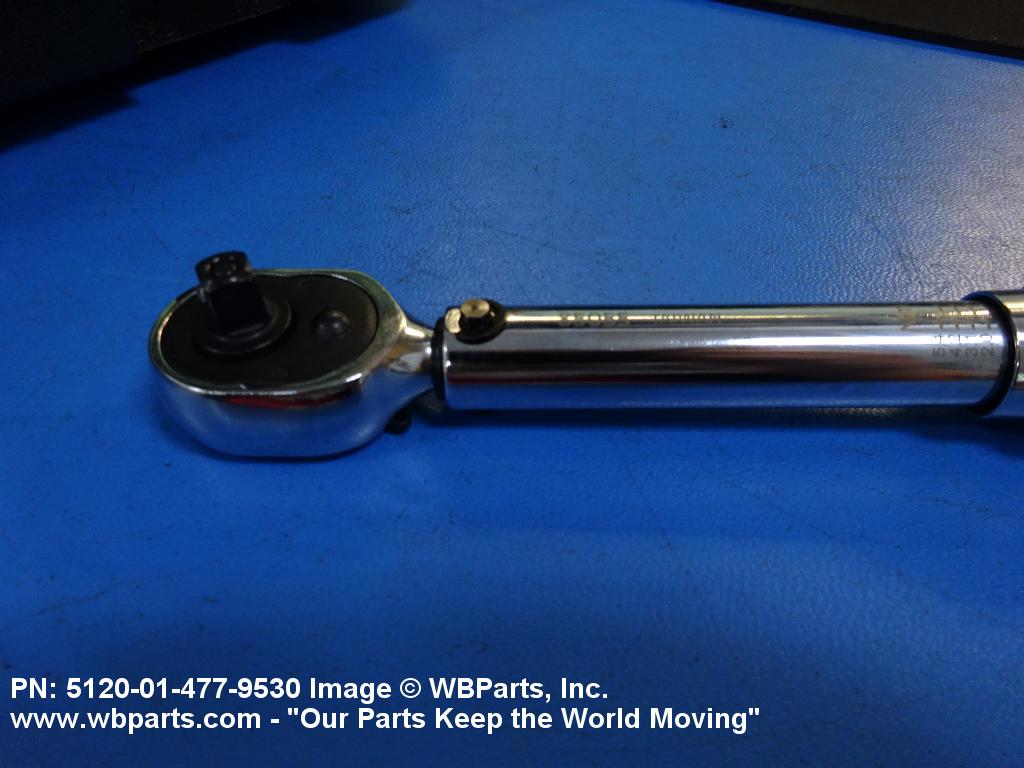

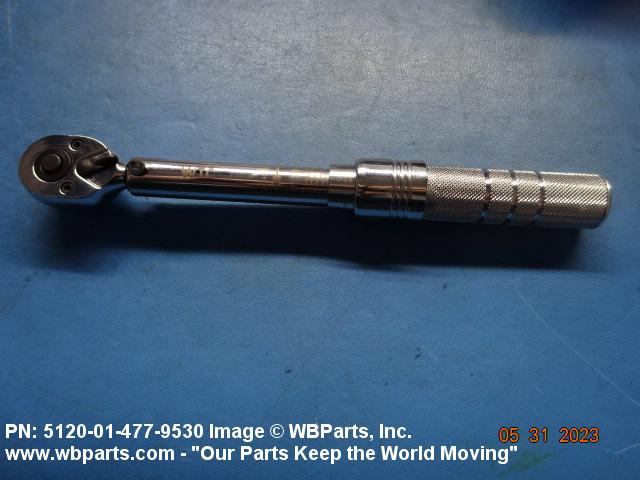

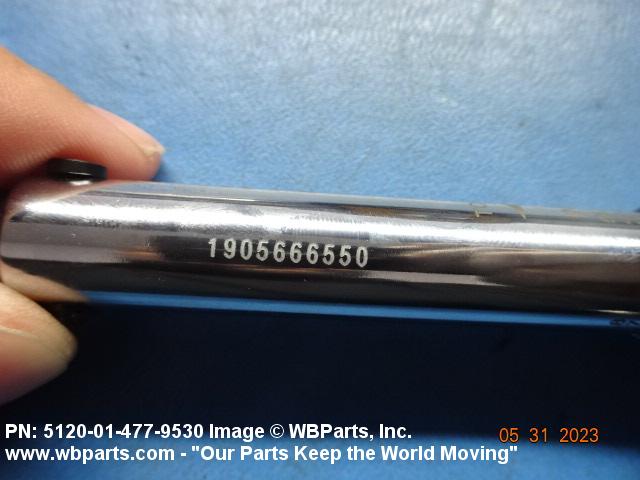

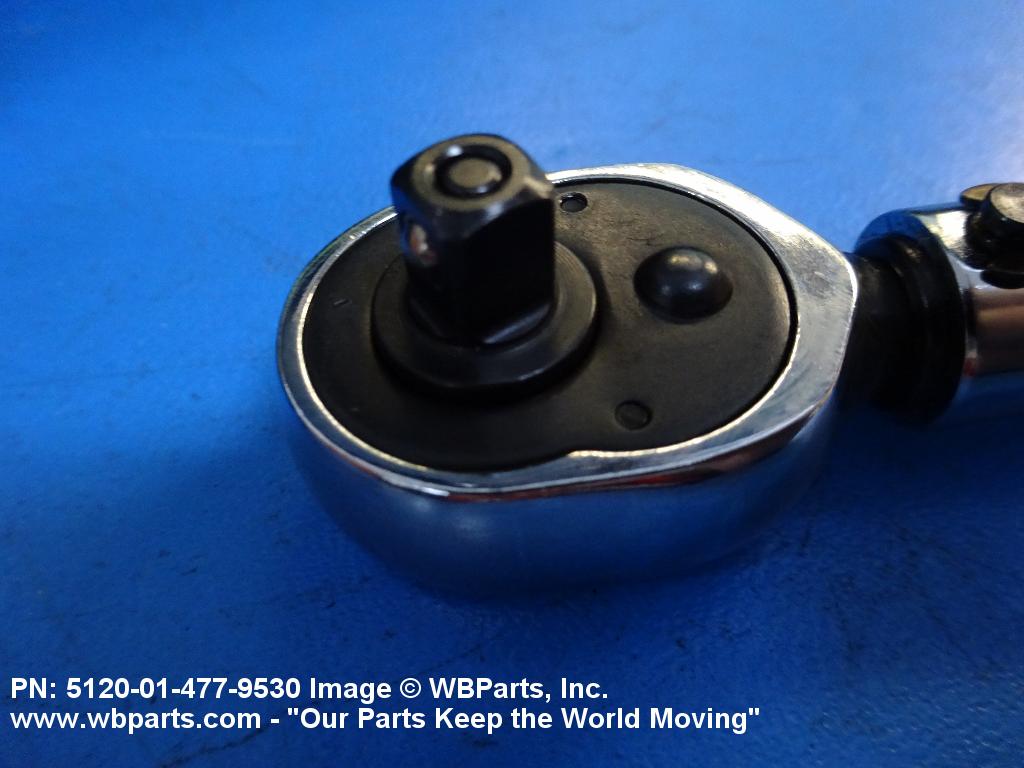

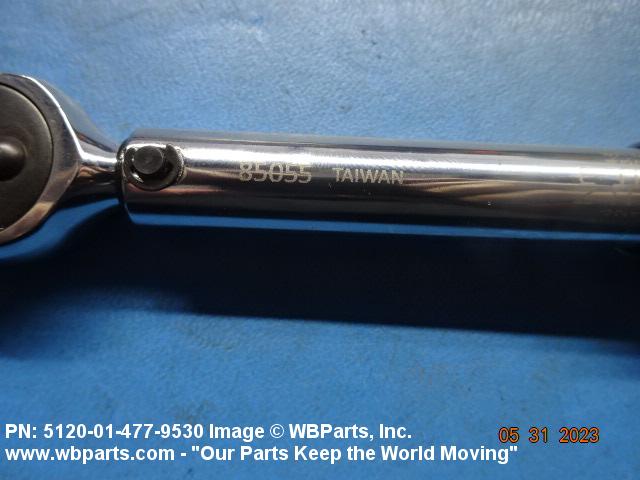

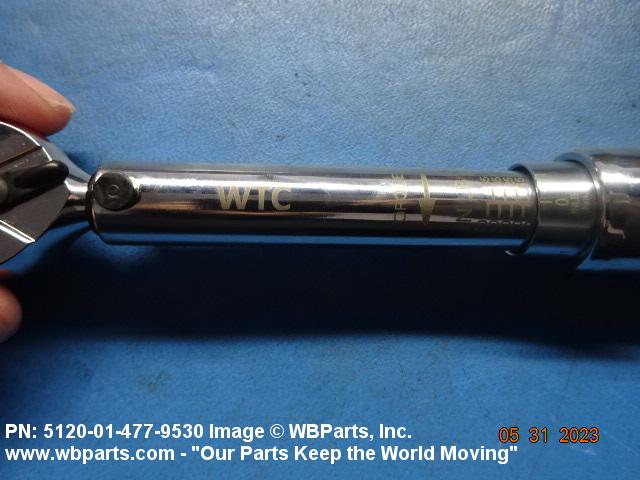

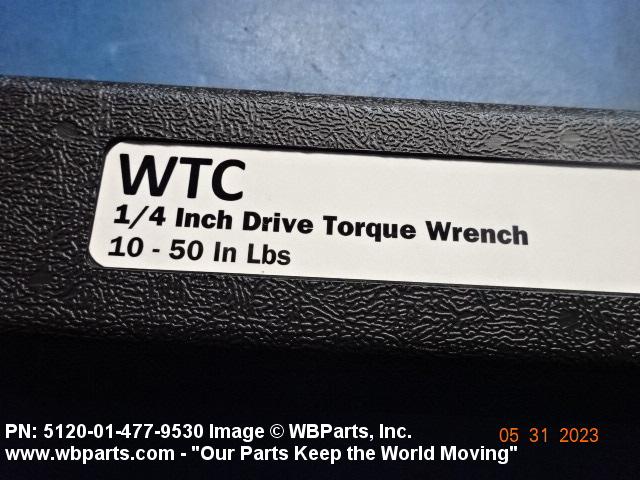

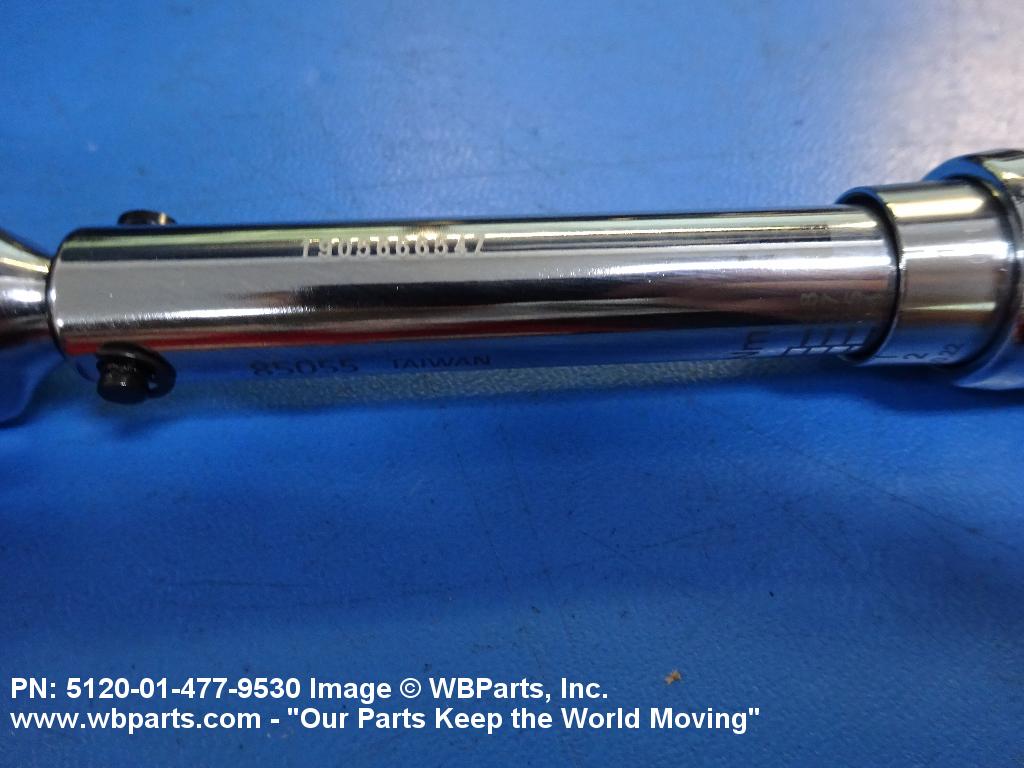

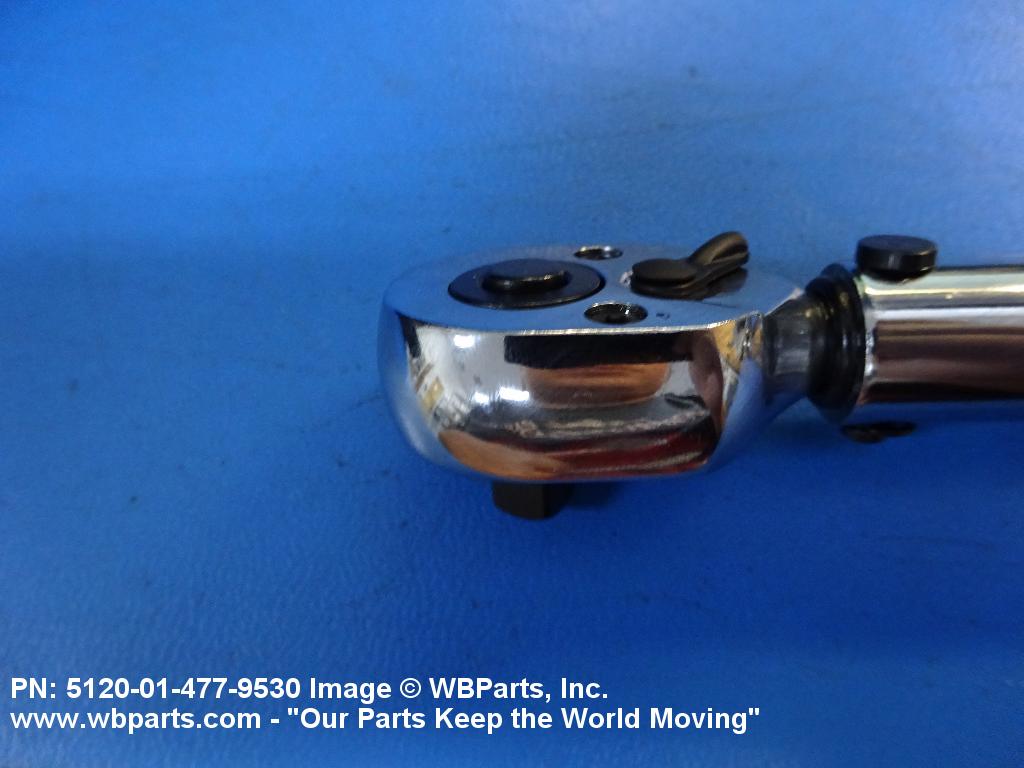

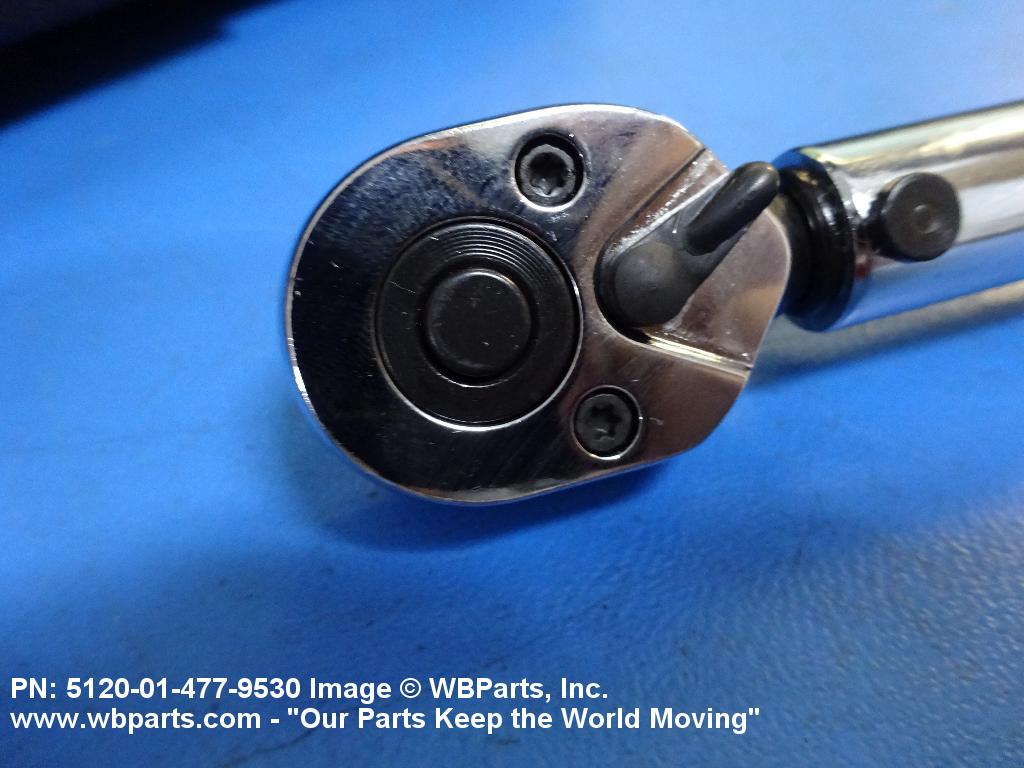

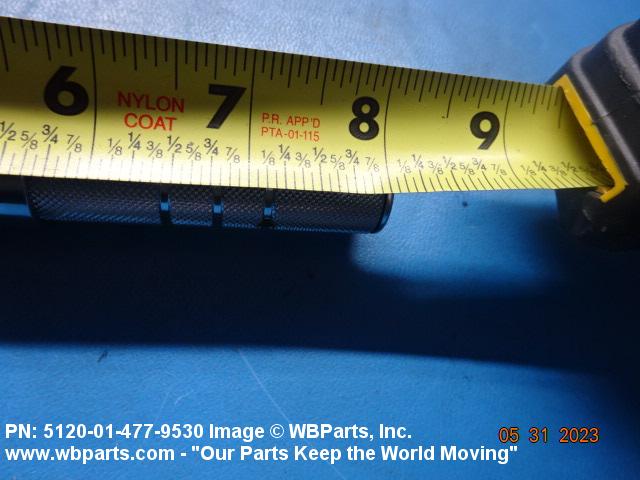

Drawings & Photos | NSN 5120-01-477-9530
Demand History | NSN 5120-01-477-9530
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| B10714 | 2024-03-14 | 1 | United States |
| AS28431 | 2023-11-08 | 1 | United States |
| 5120-01-477-9530 | 2023-02-16 | 1 | United States |
| 5120-01-477-9530 | 2022-04-21 | 6 | United States |
| QD1R50 | 2022-04-21 | 5 | Singapore |
| 5120-01-477-9530 | 2022-04-06 | 6 | United States |
| B107300 | 2022-03-16 | 1 | US |
| B107300 | 2022-03-16 | 1 | US |
| 5120-01-477-9530 | 2021-12-02 | 5 | Canada |
| QD1R50 | 2021-12-02 | 5 | Canada |
| 5120-01-477-9530 | 2021-02-08 | 1 | Singapore |
| QD1R50 | 2020-06-05 | 2 | Oman |
| QD1R50 | 2019-05-16 | 2 | United States |
| B107.14M TY2CLAST2DEA | 2019-04-24 | 1 | France |
| 5120-01-477-9530 | 2019-02-13 | 1 | US |
| QD1R50 | 2015-01-23 | 3 | US |
| QD1R50 | 2014-11-12 | 1 | US |
| QD1R50 | 2014-11-10 | 1 | US |
| 5120-01-477-9530 | 2014-05-16 | 2 | Taiwan |
| 5120-01-477-9530 | 2014-03-07 | 2 | Taiwan |
| B10714M | 2014-03-04 | 2 | Taiwan |
| QD1R50 | 2014-03-04 | 2 | Taiwan |
| B10714M | 2011-07-04 | 7 | Pakistan |
| QC1R50 | 2011-05-06 | 1 | US |
| QD1R50 | 2011-01-07 | 1 | US |
| QD1R50 | 2010-03-18 | 1 | US |
Cross Reference | NSN 5120-01-477-9530
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 370050 | Z0018 | WARREN AND BROWN TECHNOLOGIES PTY LTD |
| 501MRMH | Z3Q63 | HARE INDUSTRIAL PRODUCTS PTY LTD |
| AS28431 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| AS28431 TY1CL2 | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.14 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.14 TY2CLAST2DEA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.14M | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| B107.14M TY2CLAST2DEA | 80244 | GENERAL SERVICES ADMINISTRATION FEDERAL SUPPLY SERVICE |
| B107.300 | 05047 | AMERICAN SOCIETY OF MECHANICAL ENGINEERS |
| QC1R50 | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| QC1R50 | 68D9G | JAN HERMANEK - MOTOR SPORT HOBBYPROFI |
| QD1R50 | 55719 | IDSC HOLDINGS LLC DBA SNAP-ON INDUSTRIAL |
| QD1R50 | Z0X06 | SNAP-ON TOOLS AUSTRALIA PTY LTDNATIONAL DEFENCE DIV |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5120-01-477-9530
5120-01-477-9546, 5120-01-477-9554, 5120-01-477-9556, 5120-01-477-9873, 5120-01-478-0678
Technical Data | NSN 5120-01-477-9530
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| STYLE DESIGNATOR | 858 MICROMETER END DRIVE |
| OVERALL LENGTH | 9.250 INCHES NOMINAL |
| DRIVE SURFACE SIZE | 0.250 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | SQUARE SINGLE END EXTERNAL |
| TORQUE CAPACITY | 10.0 INCH-POUNDS MINIMUM AND 50.0 INCH-POUNDS MAXIMUM |
| TORQUE INDICATING MECHANISM | MICROMETER |
| TORQUE SIGNAL METHOD | AUDIBLE |
| TORQUE SCALE GRADUATION | 0.50 INCH-POUNDS |
| SPECIAL FEATURES | RATCHET HEAD; PLAIN STEEL HANDLE |
| III SUPPLEMENTARY FEATURES | INDUSTRIAL QUALITY (IQ) TOOLS PROGRAM ITEM |
Restrictions/Controls & Freight Information | NSN 5120-01-477-9530
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | 7G | GSA, FSS/FCSC Washington, DC 20406 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5120-01-477-9530
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Q | Navy-owned stocks of items accepted by the General Services Administration for support of Navy requirements Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
