NSN 5120-01-481-0527 PE50111, PE5011-1, 01-481-0527
Product Details | TORQUE WRENCH
5120-01-481-0527 A manual tool for tightening various fasteners to a precise torque value. Consists of a handle and drive to accommodate female square drive sockets and other types of wrenching adapters. Torque value may be manually set and adjusted by user or may be provided as preset for production line use. A signaling device is generally provided to indicate when set torque value is reached. Handle is swung at right angle to axis of fastener rotation to apply torque. For items with handles that are spun in-line with axis of fastener rotation to apply torque, see SCREWDRIVER, TORQUE.2025120000065200043Dental Instruments, Equipment, and Supplies
Part Alternates: PE50111, PE5011-1, 5120-01-481-0527, 01-481-0527, 5120014810527, 014810527
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 15 DEC 2000 | 01-481-0527 | 17611 ( WRENCH, TORQUE ) |

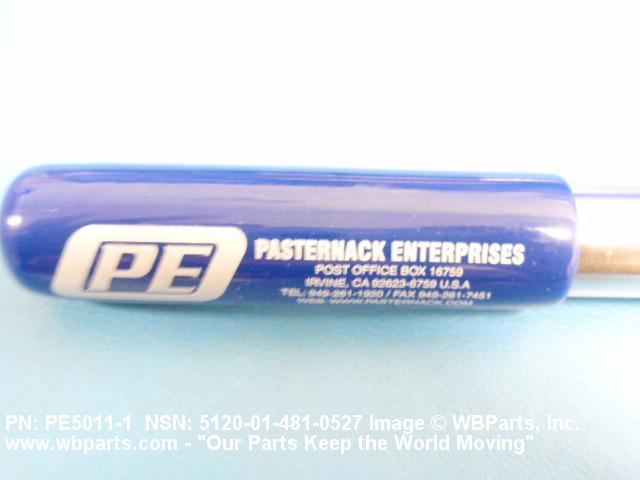

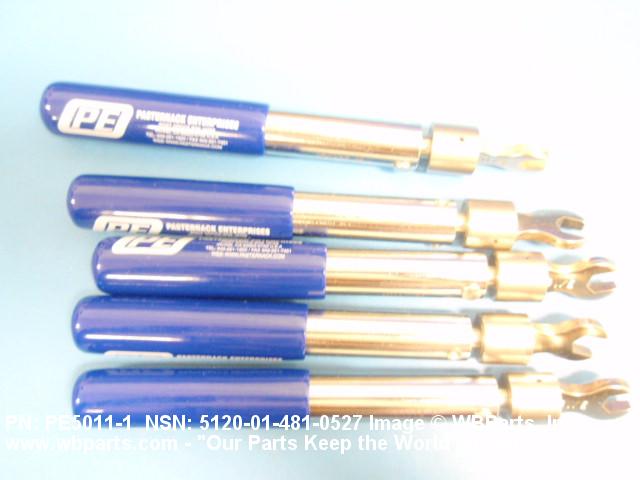

Drawings & Photos | NSN 5120-01-481-0527
Demand History | NSN 5120-01-481-0527
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PE50111 | 2025-06-175 | 1 | US |
| PE50111 | 2025-06-170 | 1 | us |
| PE50111 | 2024-02-45 | 1 | United States |
| PE50111 | 2023-07-206 | 1 | US |
| 5120-01-481-0527 | 2020-05-141 | 2 | US |
| 5120-01-481-0527 | 2019-09-260 | 100 | United States |
| 5120-01-481-0527 | 2013-09-269 | 70 | US |
| 5120-01-481-0527 | 2012-10-283 | 1 | United States |
| 5120-01-481-0527 | 2010-10-284 | 2 | US |
| PE50111 | 2010-04-102 | 5 | United States |
Cross Reference | NSN 5120-01-481-0527
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PE5011-1 | 53919 | PASTERNACK ENTERPRISES, INC. DBA PASTERNACK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-481-0527
Technical Data | NSN 5120-01-481-0527
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 HANDLE STEEL COMP 4140 WRENCHING SURFACE |
| OVERALL LENGTH | 6.750 INCHES NOMINAL |

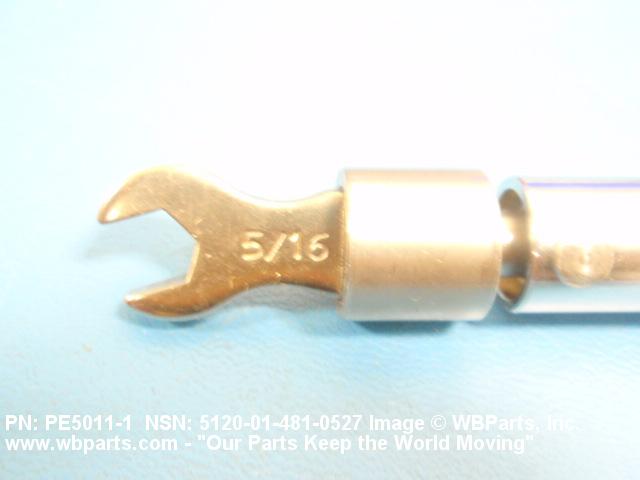

| DRIVE SURFACE SIZE | 0.312 INCHES NOMINAL SINGLE END |
| DRIVE END SHAPE | HEXAGON SINGLE END INTERNAL |

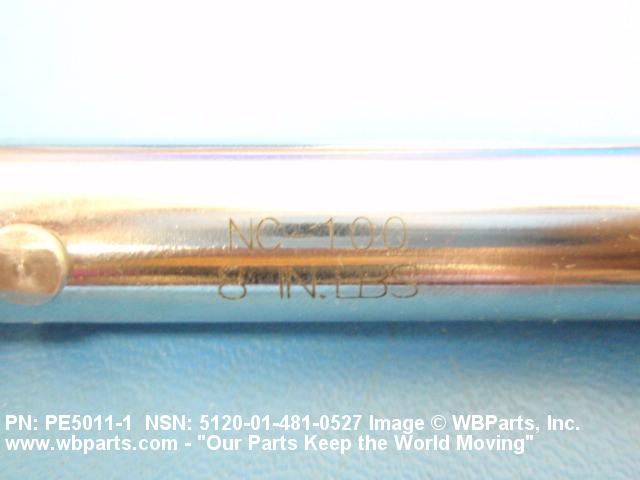

| TORQUE CAPACITY | 8.0 INCH-POUNDS NOMINAL |
| TORQUE INDICATING MECHANISM | PRESET-FIXED |
Restrictions/Controls & Freight Information | NSN 5120-01-481-0527
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
