NSN 5120-01-512-2691 2587239, 01-512-2691, 015122691
Product Details | TORQUE WRENCH ADAPTER
5120-01-512-2691 An adapter which facilitates the use of a torque wrench in various applications. One end is designed for direct mating with the drive tang of a torque wrench and the other end designed to mate with the head of a bolt, nut, or the like, or made to fit into socket wrench or screwdriver bit.2025120000065200043Dental Instruments, Equipment, and Supplies
Part Alternates: 2587239, 5120-01-512-2691, 01-512-2691, 5120015122691, 015122691
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 26 AUG 2003 | 01-512-2691 | 60023 ( ADAPTER, TORQUE WRENCH ) |
Drawings & Photos | NSN 5120-01-512-2691
Cross Reference | NSN 5120-01-512-2691
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2587239 | 80064 | NAVAL SHIP SYSTEMS COMMAND |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-512-2691
Technical Data | NSN 5120-01-512-2691
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-634 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TY 2, CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

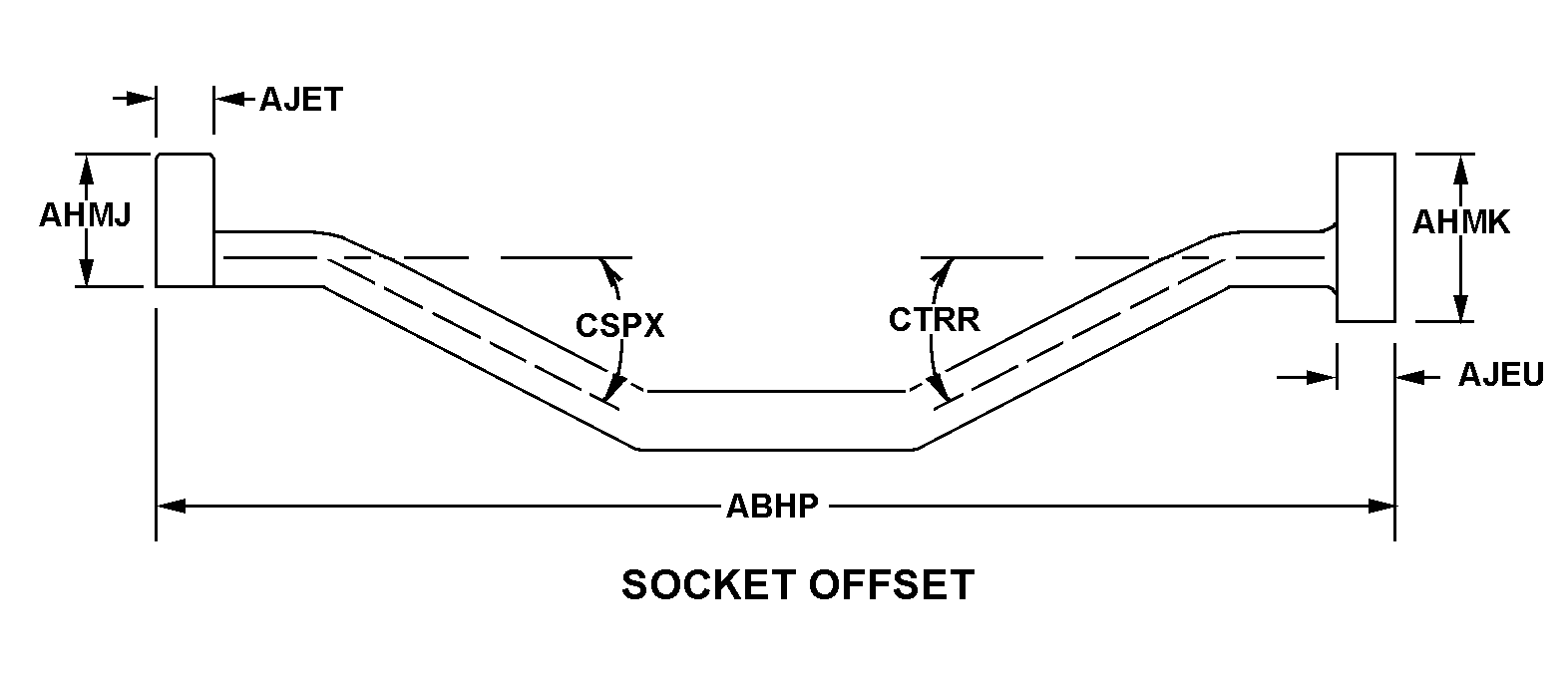

| STYLE DESIGNATOR | 15 SOCKET OFFSET |
| OVERALL LENGTH | 12.120 INCHES NOMINAL |
| WRENCHING END OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| DRIVE END OUTSIDE DIAMETER | 1.500 INCHES NOMINAL |
| WRENCHING END HEAD THICKNESS | 1.500 INCHES NOMINAL |
| DRIVE END HEAD THICKNESS | 1.500 INCHES NOMINAL |
| WRENCHING END OFFSET ANGLE | 45.0 DEGREES NOMINAL |
| DRIVE END OFFSET ANGLE | 45.0 DEGREES NOMINAL |
| WRENCHING SURFACE SIZE | 0.5625 INCHES NOMINAL BOTH ENDS |
| WRENCHING SURFACE SHAPE | HEXAGON BOTH ENDS EXTERNAL |
| DRIVE SURFACE SIZE | 11.558 INCHES NOMINAL BOTH ENDS |
| DRIVE END SHAPE | OVAL BODY CENTER EXTERNAL |
| SPECIAL MARKINGS | METAL STAMP W/ .19 - .25 CHARACTERS: 80064-2587239 |
| SPECIAL FEATURES | NEXT ASSY 2585765 |
| III END ITEM IDENTIFICATION | LVT-P7 |
Restrictions/Controls & Freight Information | NSN 5120-01-512-2691
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
