NSN 5120-01-558-1131 190318, 630046, 01-558-1131
Product Details | CRIMPING TOOL DIE
5120-01-558-1131 An item of two-piece construction designed to be held in a CRIMPING TOOL, TERMINAL, HAND or CRIMPING OUTFIT, HYDRAULIC, WIRE TERMINAL to change the jaw size for use on various types of terminals.20251200032Hand Tools, Nonedged, Nonpowered51300024Hand Tools, Power Driven
Part Alternates: 190318, 630046, 5120-01-558-1131, 01-558-1131, 5120015581131, 015581131
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 NOV 2007 | 01-558-1131 | 38342 ( DIE, CRIMPING TOOL ) |

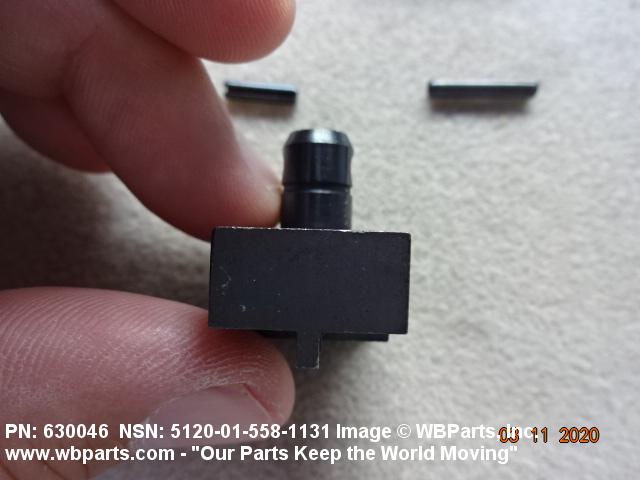

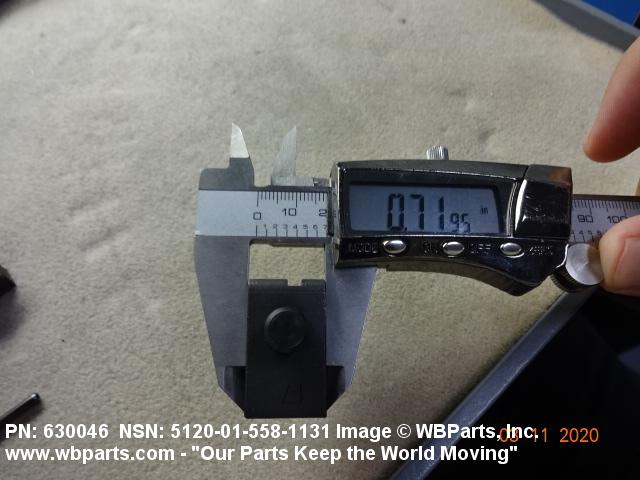

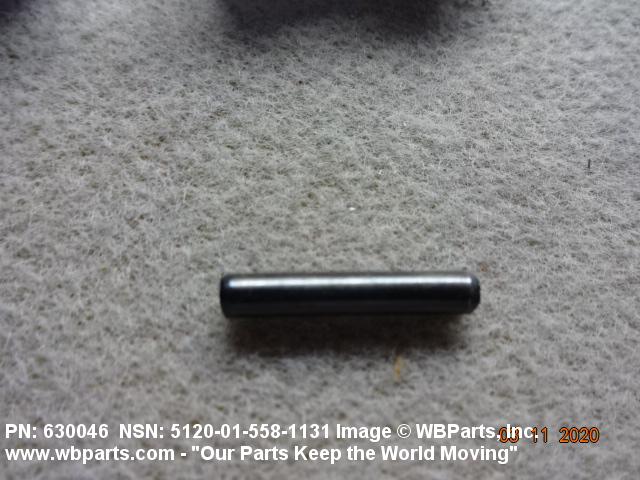

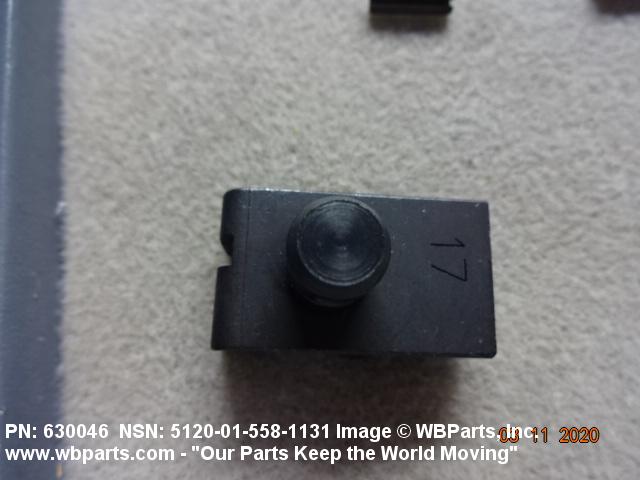

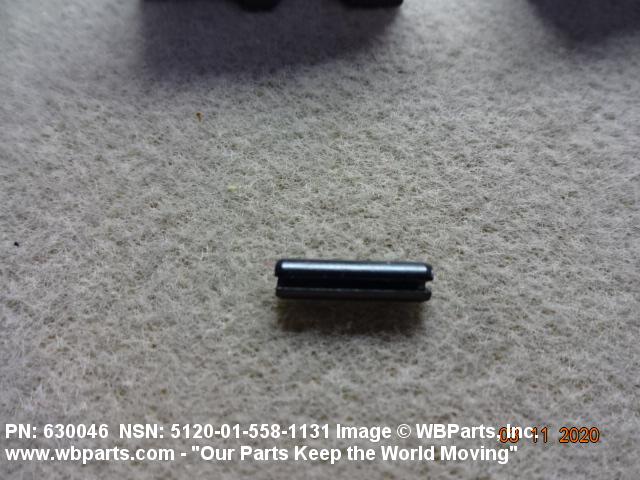

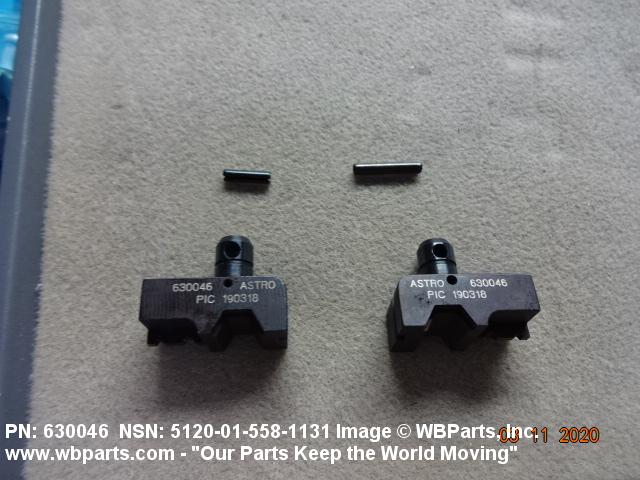

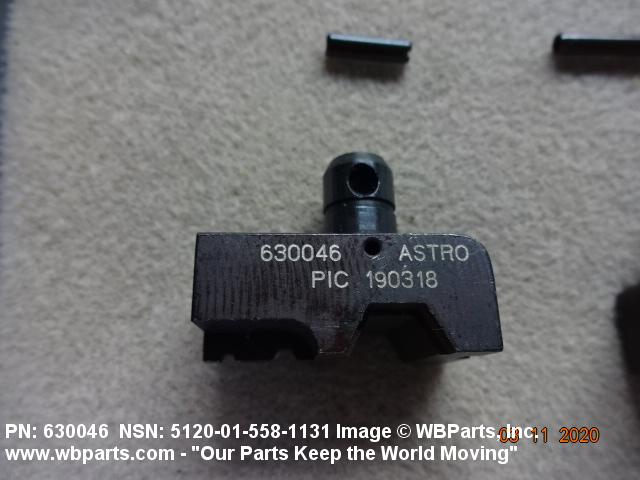

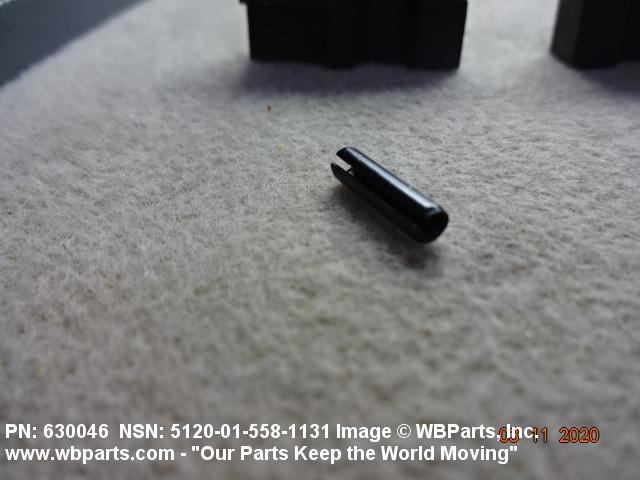

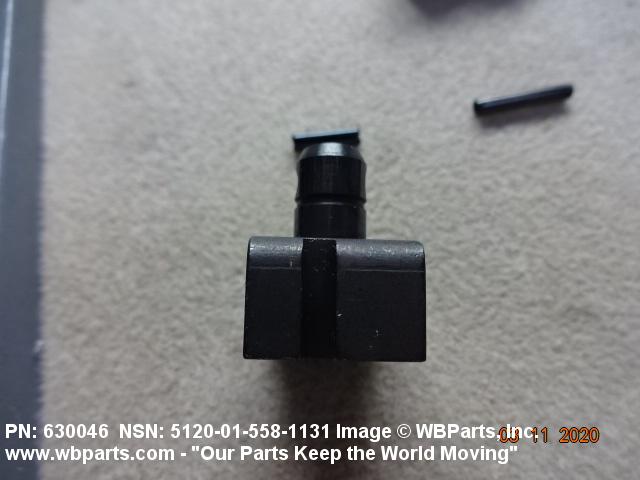

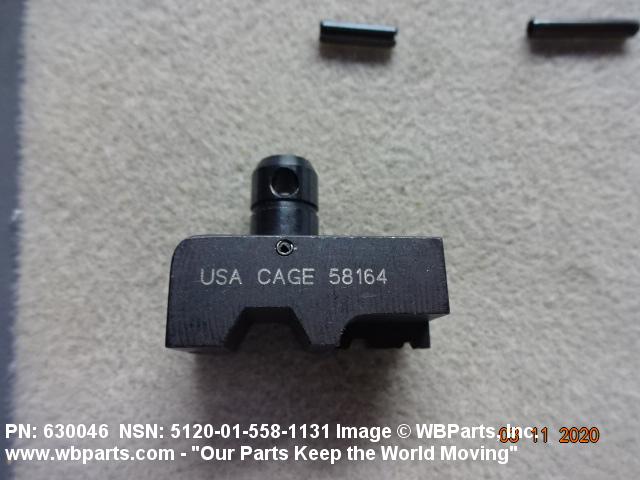

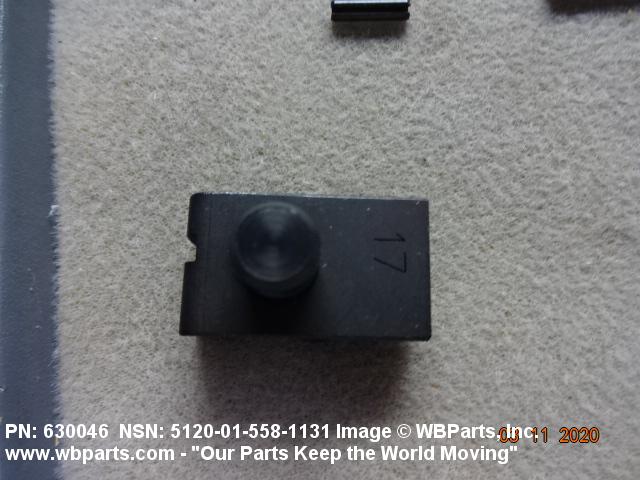

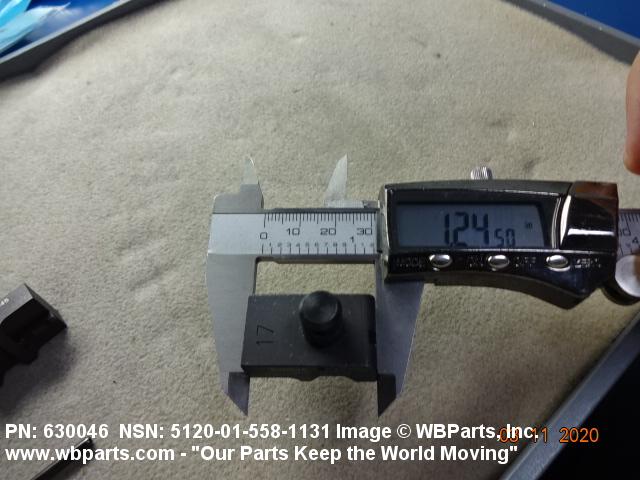

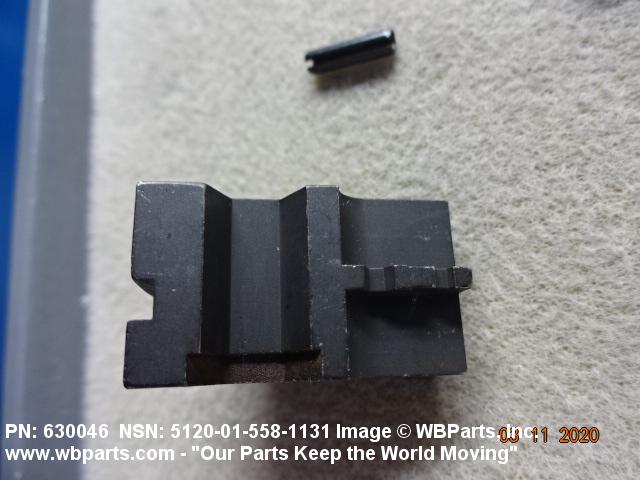

Drawings & Photos | NSN 5120-01-558-1131
Demand History | NSN 5120-01-558-1131
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5120-01-558-1131 | 2025-03-83 | 3 | United States |
| 5120-01-558-1131 | 2024-02-33 | 1 | Canada |
| 5120-01-558-1131 | 2022-06-157 | 1 | US |
| 5120-01-558-1131 | 2020-09-267 | 1 | United States |
| 5120-01-558-1131 | 2020-09-266 | 1 | US |
| 5120-01-558-1131 | 2020-01-30 | 15 | us |
| 5120-01-558-1131 | 2019-09-273 | 8 | us |
| 190318 | 2019-08-219 | 2 | US |
| 190318 | 2018-01-24 | 3 | United States |
| 5120-01-558-1131 | 2017-07-191 | 3 | GU |
| 5120-01-558-1131 | 2012-12-339 | 1 | US |
| 190318 | 2012-12-338 | 1 | CA |
| 630046 | 2011-03-63 | 6 | US |
| 630046 | 2008-12-345 | 6 | US |
| 630046 | 2008-09-268 | 1 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5120-01-558-1131
Technical Data | NSN 5120-01-558-1131
| Characteristic | Specifications |
|---|---|
| GENERAL CHARACTERISTICS ITEM DESCRIPTION | FOR USE WITH M22520/5-01 HEX CRIMP TOOL |
| SPECIAL FEATURES | 1.250 L X 0.720 W |
| III FUNCTIONAL DESCRIPTION | USED ON 1903XX SERIES CONNECTORS (FOR PIC S33141 CABLE) |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | HEX CRIMP DIE SET |
Restrictions/Controls & Freight Information | NSN 5120-01-558-1131
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
